AUMA ACV 01.2 Operation Instructions

2. Refer to table and check if swing angle of the actuator corresponds to the setting
of the reduction gearing (stages 1– 9).
If the setting is not correct: continue with step 4.
If the setting is correct: continue with step 7.
Table 19:
Actuator swing angle and suitable reduction gearing setting
SQV 14.2SQV 12.2SQV 10.2SQV 05.2 / SQV 07.2
432230° +/–15°
543360° +/–15°
643390° +/–15°
6543120° +/–15°
6544150° +/–15°
7544180° +/–15°
7654210° +/–15°
7655290° +/–70°
3. Loosen screw [1].
4. Set crown wheel [2] to desired stage according to table.
5. Tighten screw [1].
6. Place indicator disc on shaft.
7. Set mechanical position indicator.

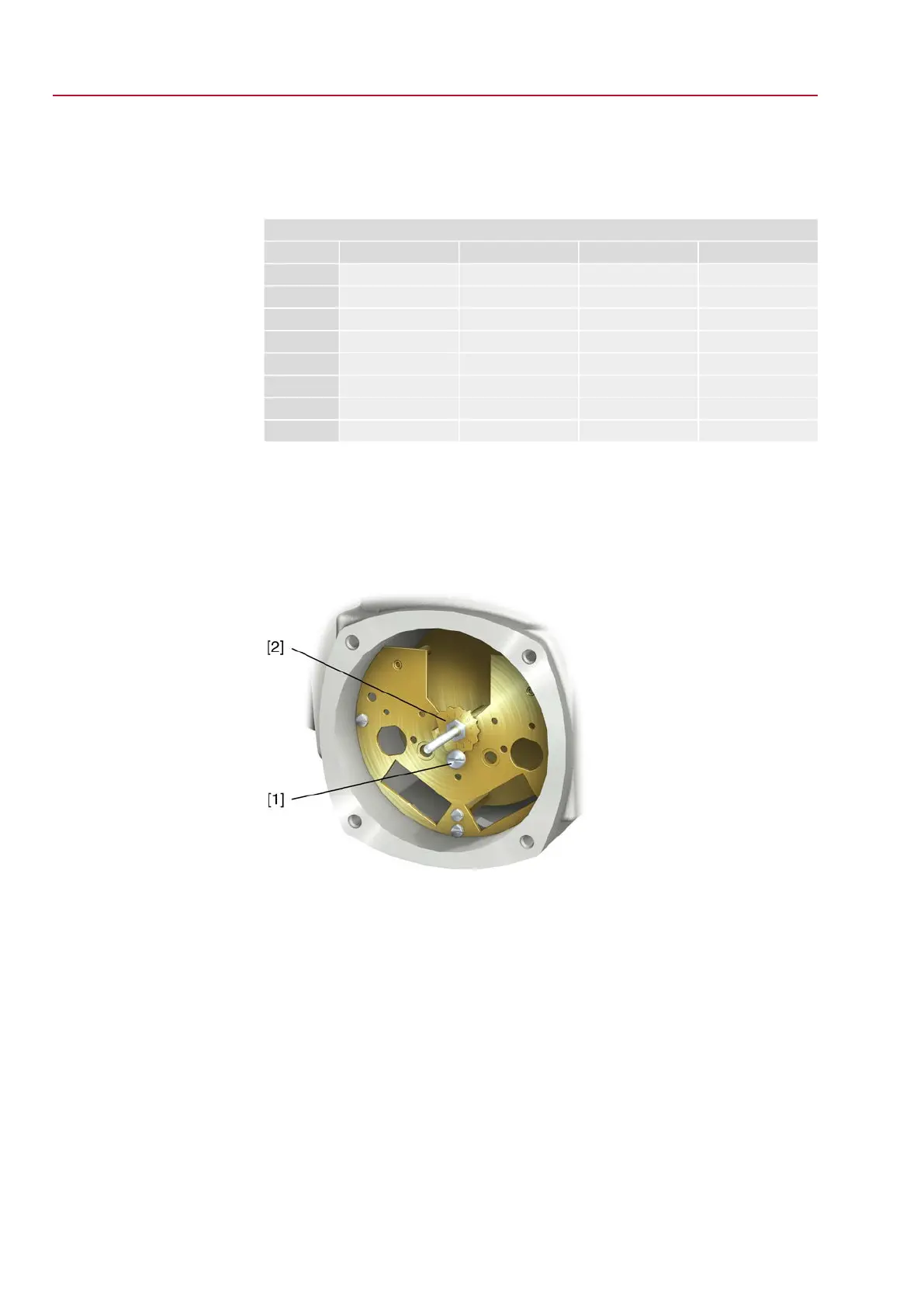

Figure 74: Control unit with reduction gearing
[1] Screw
[2] Crown wheel
66
SQV 05.2 – SQV 14.2 / SQRV 05.2 – SQRV 14.2 Control unit: electronic (MWG)
Commissioning (settings in the actuator) ACV 01.2 Non-Intrusive Profibus DP
