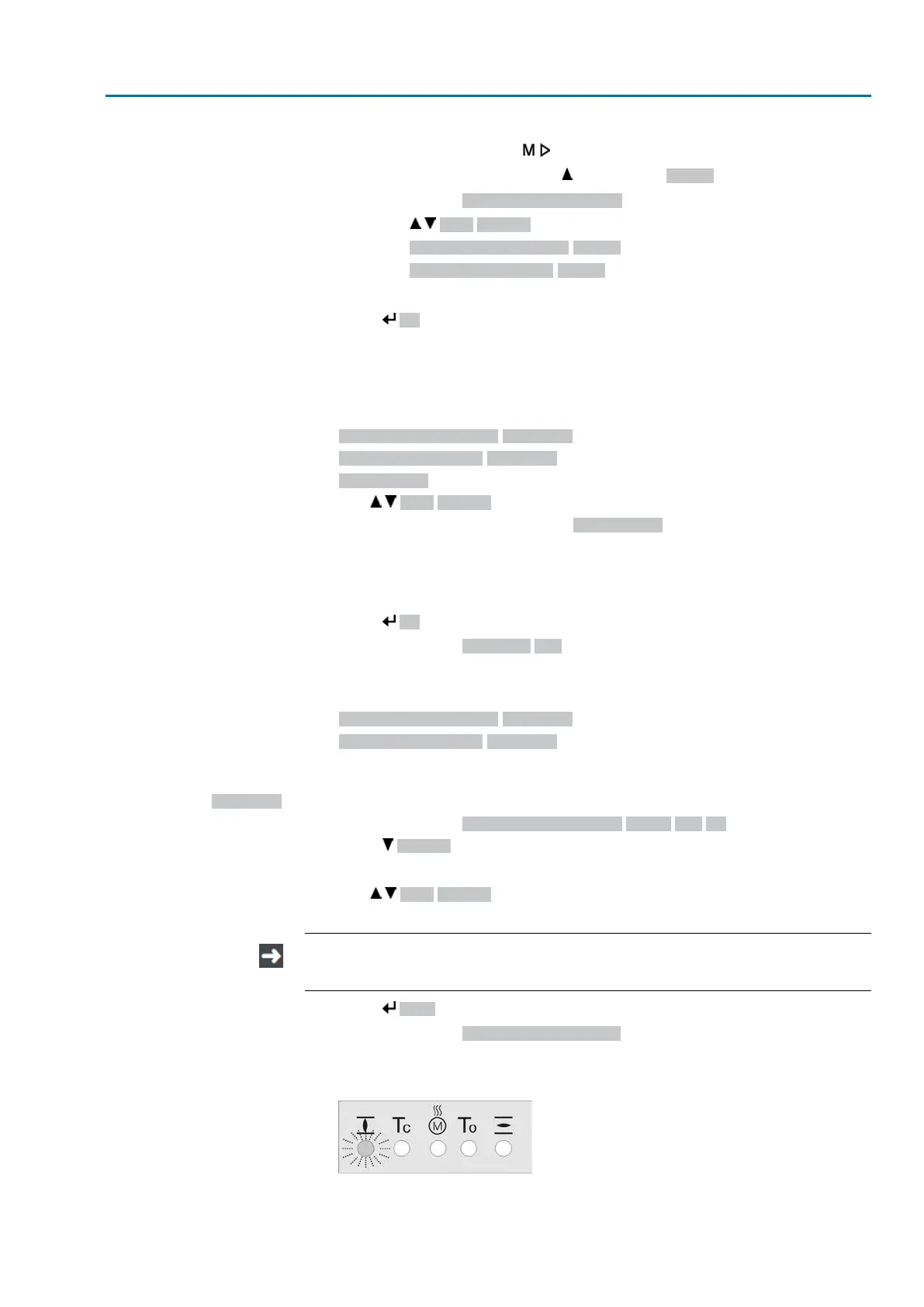

Select parameter
3. Select parameter either:
→
click via the menu to parameter, or
→
via direct display: Press and enter ID M0084
➥
Display indicates: Set end pos.CLOSED?
OPEN or CLOSED
4.
Select via Up ▲ Down ▼:
→
▶ Set end pos.CLOSED? M0084
→
▶ Set end pos. OPEN? M0085
➥
The black triangle ▶ indicates the current selection.
5.
Press Ok.
Information
If the end position CLOSED (or end position OPEN) is to be set via stroke, the end
position OPEN (or end position CLOSED) must be set first via limit switching. For
this, refer to page 39, Limit switching: set.
➥
The display indicates either:
-
Set end pos.CLOSED? CMD0009 → continue with step 9
-
Set end pos. OPEN? CMD0010 → continue with step 12
-
Specialist (4) → continue with step 6
Log on user
6.
Use Up ▲ Down ▼ to select user:
Information: Required user level: Specialist (4) or higher
➥
The symbols have the following meaning:
-
black triangle: ▶ = current setting
-
white triangle: ▷ = selection (not saved yet)
7.
Press Ok to confirm selected user.
➥
Display indicates: Password 0***
8.
Enter password (→ enter password).
➥
The display indicates either:
-
Set end pos.CLOSED? CMD0009 → continue with step 9
-
Set end pos. OPEN? CMD0010 → continue with step 12
Set end position
CLOSED via stroke
CMD0009
Information:If the end position CLOSED is to be set via stroke, the end position
OPEN must be set first via limit switching. For this, refer to page 39, Limit
switching: set.
9.
Display indicates: Set end pos.CLOSED? Stroke Yes No
10.
Press Down ▼.
➥
Now, the incremented values for end position CLOSED can be set.
11.
Use Up ▲ Down ▼ to adapt the incremented value in compliance with the
table at the beginning of this chapter.
Do not enter 0 as incremented value. Otherwise both set values are at the same
valve position.
Confirm incremented
value
12.
Press Save to confirm new end position.
➥
Display indicates: End pos. CLOSED set!
➥
The left LED is illuminated (standard version) and thus indicates that the end
position CLOSED setting is complete.
43
Actuator controls
ACV 01.2/ACVExC 01.2 Profibus DP Basic settings for commissioning
