Document No.: E4.08.09 E4.08.09 : AE_xx_000
Revision: 13 9 : 00
Page: 26 of 89
Copyright © 2019, Austro Engine GmbH
Dept.: Electric/Electronic

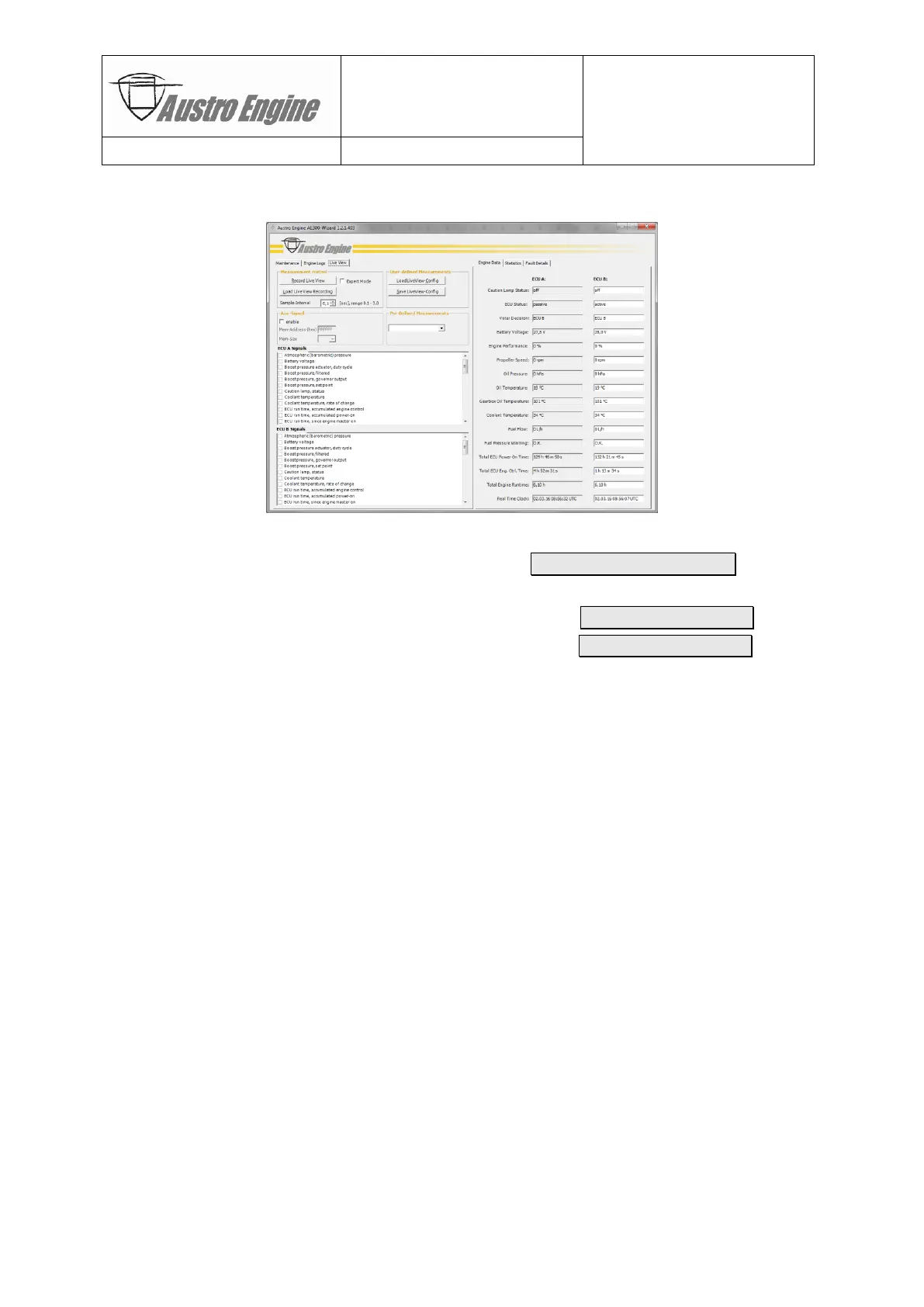

7.1.1.3 Live View Tab
Buttons to:
- Load (import) a Live View file recorded previously ( Load Live View Recording )
- Adjust the desired sample interval from 0.1s to 3s
- Load (import) a user defined Live View configuration file ( Load LiveView-Config )
- Save (export) a user defined Live View configuration file ( Save LiveView-Config )
Check/boxes to:
- Switch from standard to expert mode to gain access to over 150 internal ECU-signals
- Enable an auxiliary signal, which might be used on request by Austro Engine support
personal. It allows to select one ECU-internal signal per ECU which is not on the drop-
down list and has to be configured by its hex address.
Drop-down lists to:
- Define a set of Live View signals to be recorded from each ECU (“ECU A/B Signals”)
- Select one of 5 predefined measurements for display and recording of relevant Live View
signal sets:
○ “Boost-Pressure-Test”,
○ “PowerLever-Test”,
○ “Propeller Selftest”,
○ “Rail-Pressure-Test”, and
○ “Ca-Cr-Angle-Test”.
