8.2.7 Offline Analysis Using the Engine Log
Since AE300-Wizard version 1.1.0.xxx a functionality to import a previously saved engine log
for further offline analysis is available. These engine logs have been saved in XML format
with a name of the form “Engine_Log_YYYYMMDD.xml”.
Since AE300-Wizard version 1.2.0.xxx the engine logs are compressed and encrypted with a
name of the form “Engine_Log_YYYYMMDD.ae3”.
8.2.7.1 Displaying Fault Code Memory Entries
The content of the FCM will be presented in the same way as it would be seen in interactive
mode.
Information to identify the engine or EECU (i.e. serial number) or the SW version will also be
presented in the usual data fields on the «Maintenance» tab.

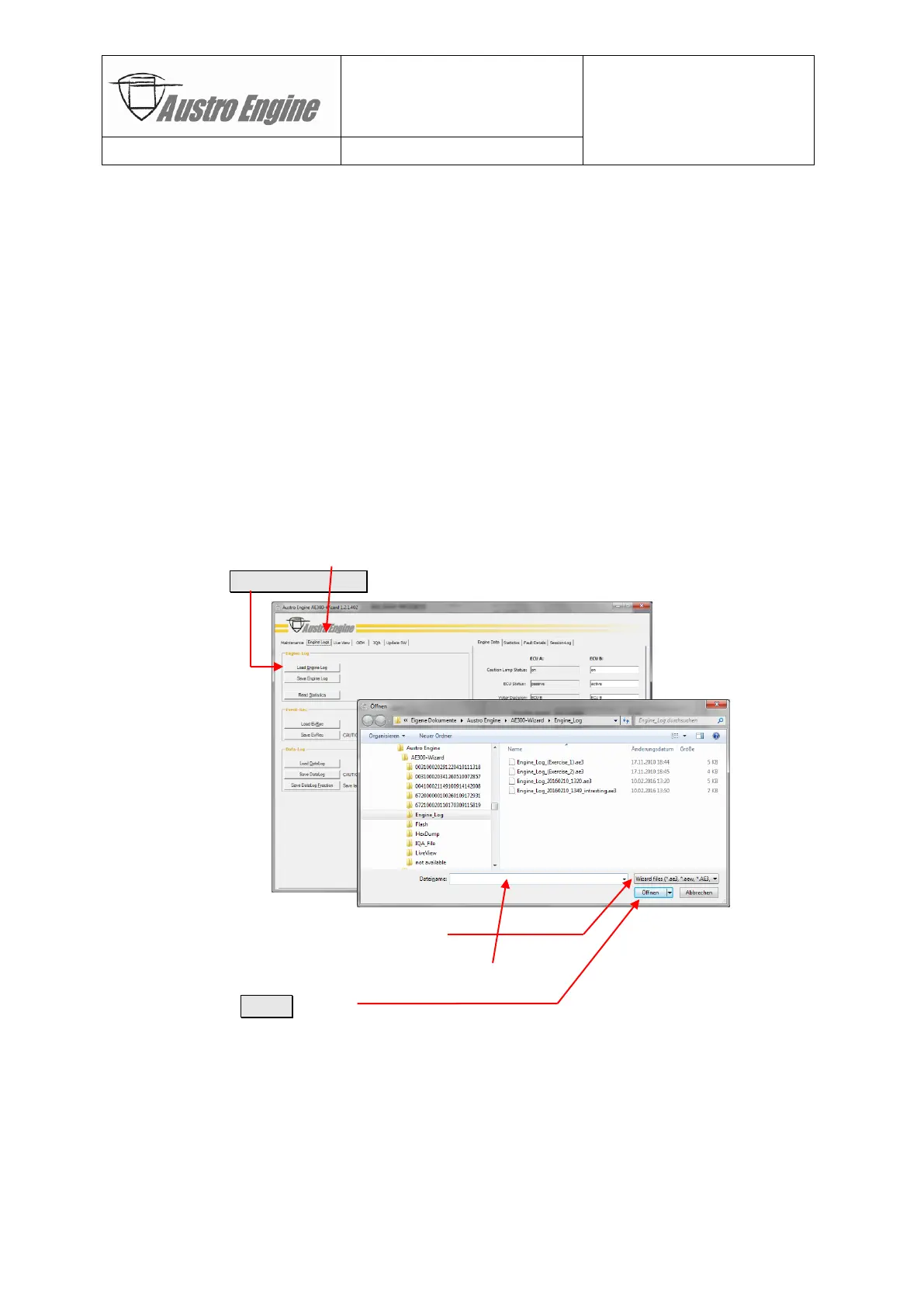

Steps:
1) Enter “offline” mode by running the AE300-Wizard without CAN adapter
2) Select «Engine Logs» tab
3) Click on Load Engine Log button
4) Select new (“Wizard files” = default)
or old (“Xml files”) format of engine log
5) Select file name (e.g. Engine_Log_YYYYMMDD.ae3)
6) Press the Open button
7) The AE300-Wizard will automatically present the FCM information like “normal”
