8.3.3 Live View – Online Analysis Using User-Defined Measurements
This Live View mode of operation is very similar to the previous “Pre-Defined Measurement”
chapter – but here a “LiveView-Config”, pre-defined by the user or another maintenance
support organization, is used to automatically set the mode of operation (standard/user),
sample-interval and set of signals.

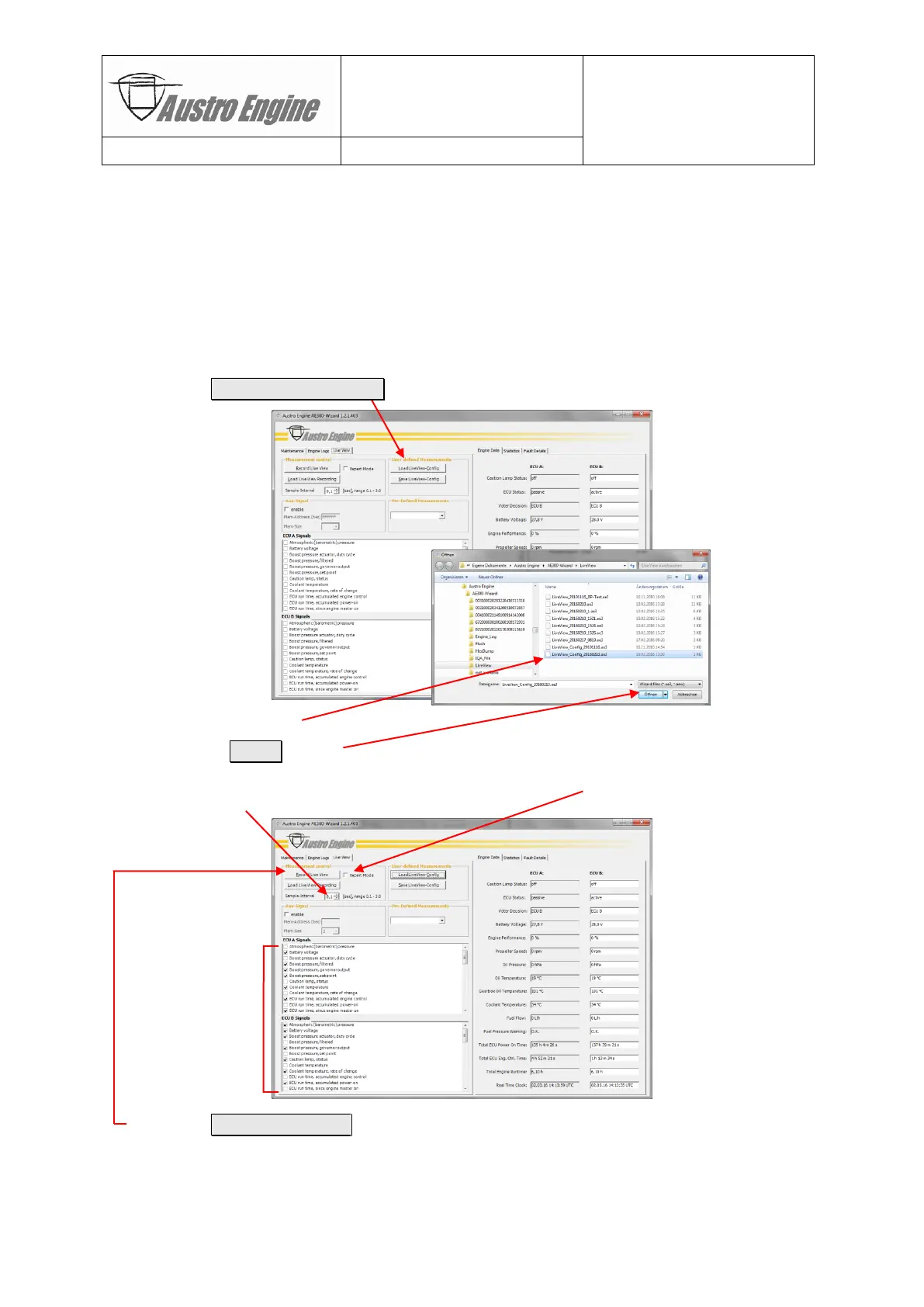

Steps:
1) Connect to ECU
2) Select «Live View» tab
3) Press Load LiveView-Config button
4) Select a file name
5) Click on Open button
6) Up to 52 pre-defined signals per ECU, the required mode (standard/expert) and the
sample interval are set automatically
7) Press Record Live View button
8) … continue as explained in section “8.3.1.1 Live View – Standard Mode”
