Boost-pressure test (e.g. after repairs of the turbo charger or air intake system)
Power lever test (e.g. to aid with power lever sensor adjustments)
Propeller self-test (e.g. to troubleshoot self-test problems, or after governor replace-
ment)
Rail-Pressure test (e.g. to troubleshoot problems in the high pressure fuel system)
Ca-Cr-Angle-Test (e.g. to troubleshoot problems with the timing chain)
Steps:
1) Connect to ECU

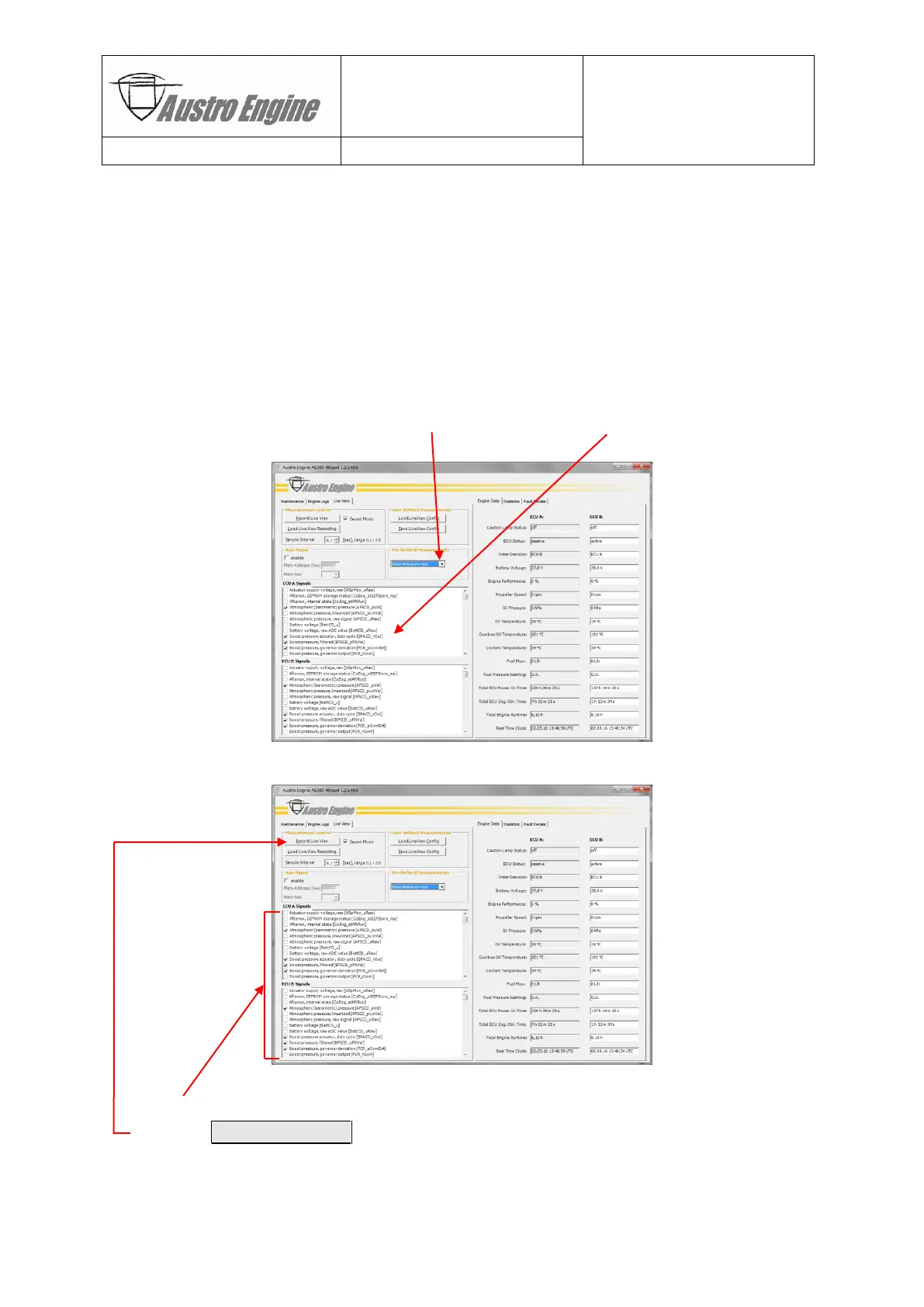

2) Select «Live View» tab
3) Select desired “Pre-Defined Measurement” (i.e. “Boost-Pressure-Test”) from a drop-
down list
4) Select sample interval (default = 0.1s)
5) Relevant signals per ECU are selected automatically
6) Press Record Live View button
7) … continue as explained in section “8.3.1.1 Live View – Standard Mode” on page 58.
