AE300-Wizard
Document No.: E4.08.09 E4.08.09 : AE_xx_000
Revision: 13 9 : 00
Page: 36 of 89
Copyright © 2019, Austro Engine GmbH
Dept.: Electric/Electronic
Type: User Guide

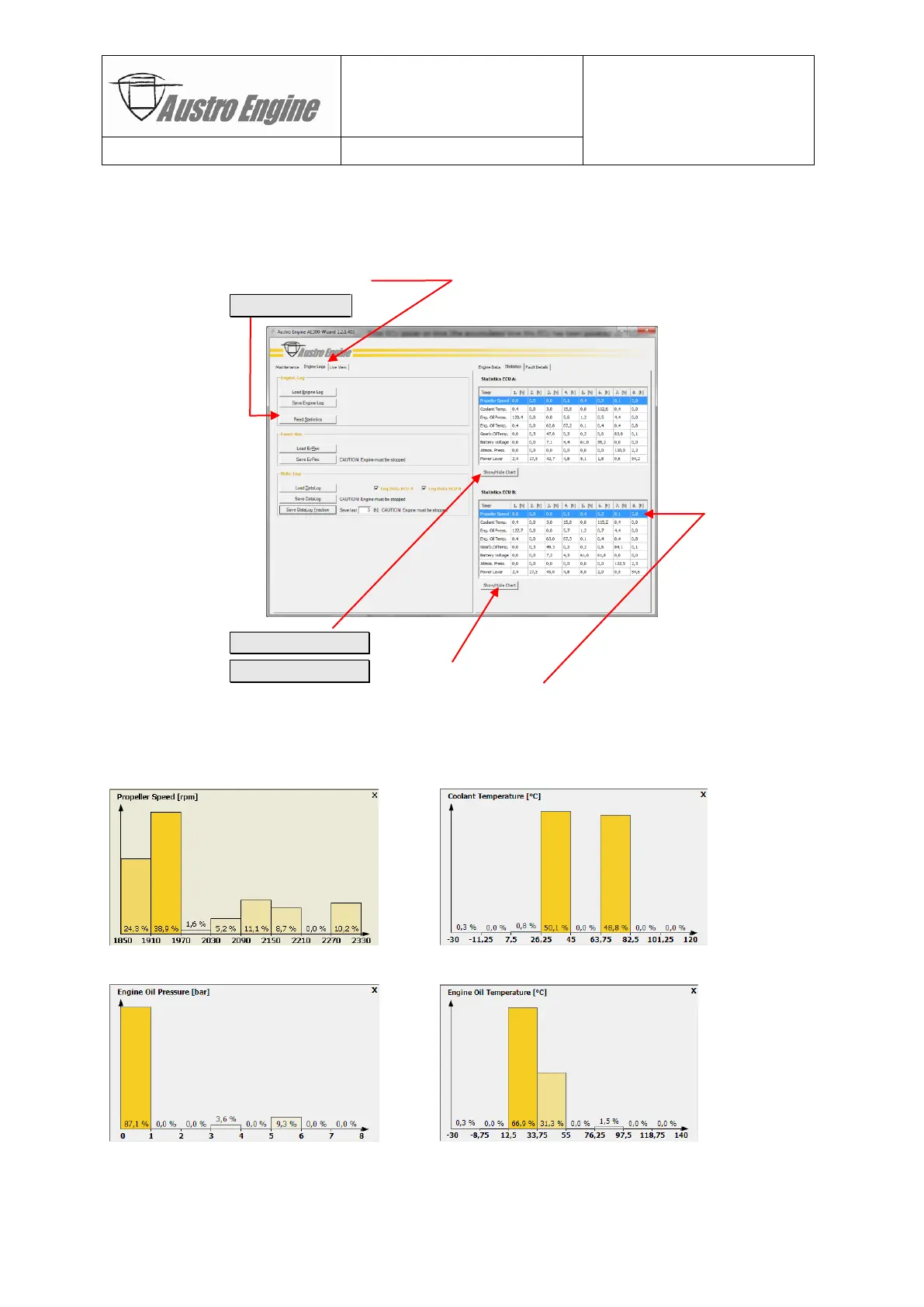

8.1.2.2 Bar-Graph Format
Steps:
1) Connect to ECU
2) Select «Engine Logs» tab
3) Click on Read Statistics button
4) Click on Show/Hide Chart for ECU A
5) Click on Show/Hide Chart for ECU B
6) Select the physical parameter (e.g. “propeller speed”) by clicking its line in the table
Information:
Propeller speed Coolant temperature
Engine oil pressure Engine oil temperature
