8.3.4 Live View – Offline Analysis
Live View data saved during a previous recording session can be analyzed offline, without
the need for a USB/CAN adapter. Also, this Live View mode of operation allows a user to de-
fine and save a “LiveView-Config” which can be used as input configuration for “Pre-Defined
Measurement” explained above.
8.3.4.1 Live View – Defining and Saving a “LiveView-Config”
Here a user can define, save and reuse his or her own “LiveView-Config” which defines mode
of operation (standard/user), sample interval and signal sets for recurring measurements.

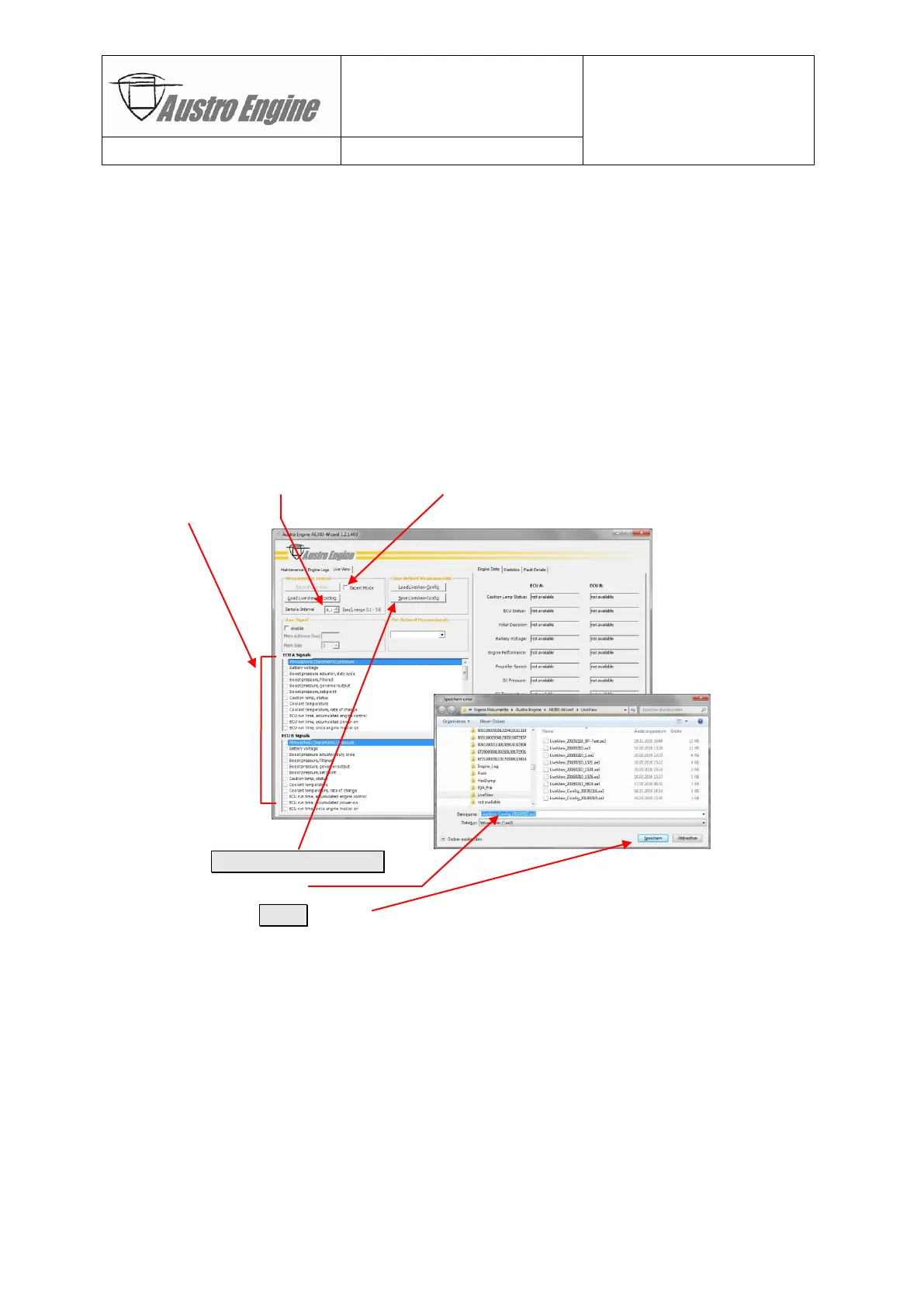

Steps:
1) Enter “offline” mode by running the AE300-Wizard without CAN adapter
2) Go to «Live View» tab
3) Select desired sample interval and mode (47 standard or 158 expert signals)
4) Select up to 52 desired signals per ECU
5) Press Save LiveView-Config button
6) Select a file name
7) Click on the Save button
The resulting “LiveView-Config” file can be found on the PC system in the folder:
“My Documents\Austro Engine\AE300-Wizard\LiveView”
e.g. under the name “LiveView_Config_YYYYMMDD.ae3” as selected in Step 6).
