Loosen the fasteners (D) on the cable gland plate to remove the plate and close
the door.
Remove the hexagonal nuts (E), spring washers (F), washers (G1), bolt (H),
and washers (G2).
Discard the pallet.
Lift the cabinet with the hoisting equipment at 500 mm (19.69") above the
foundation. Pull all the cables out of the foundation and guide the cables
through the base of the cabinet.
Carefully lower the cabinet on the foundation. Make sure that the cabinet is
aligned with the installation holes.
Remove the eyebolts (M16) on the top of the cabinet and seal the holes.

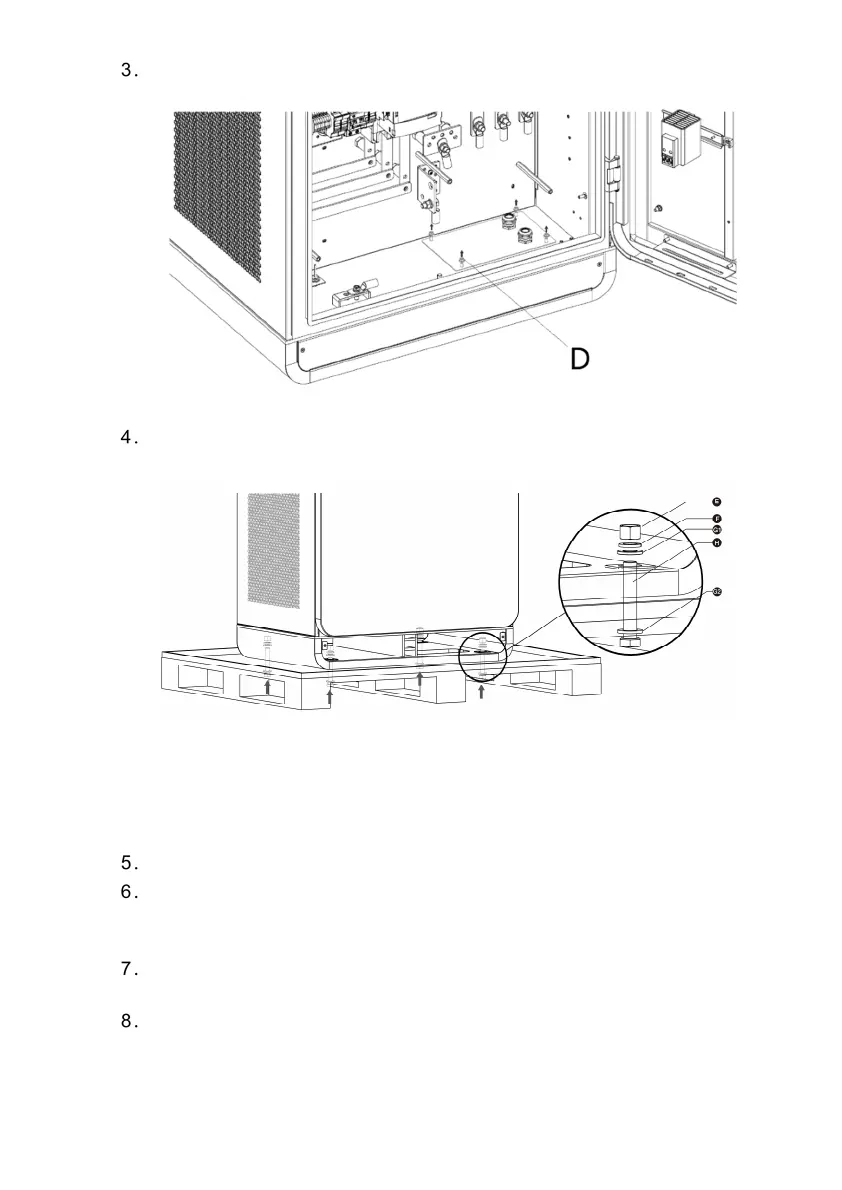

Figure 5-8 Removing the Cabinet from the Pallet
Figure 5-7 Loosening the Fasteners
