Preparing for Electrical Cable Installation
 To prepare for cable installation
Reinstall the cable gland plate.
CAUTION
If the cable gland for the Ethernet cable is not used, make sure that the cable gland is
closed and sealed.
Guide the AC input wires (C) and Ethernet cables (E) through the cable gland
plate as instructed in the following figure and tighten the four fasteners to
secure the cable gland plate.

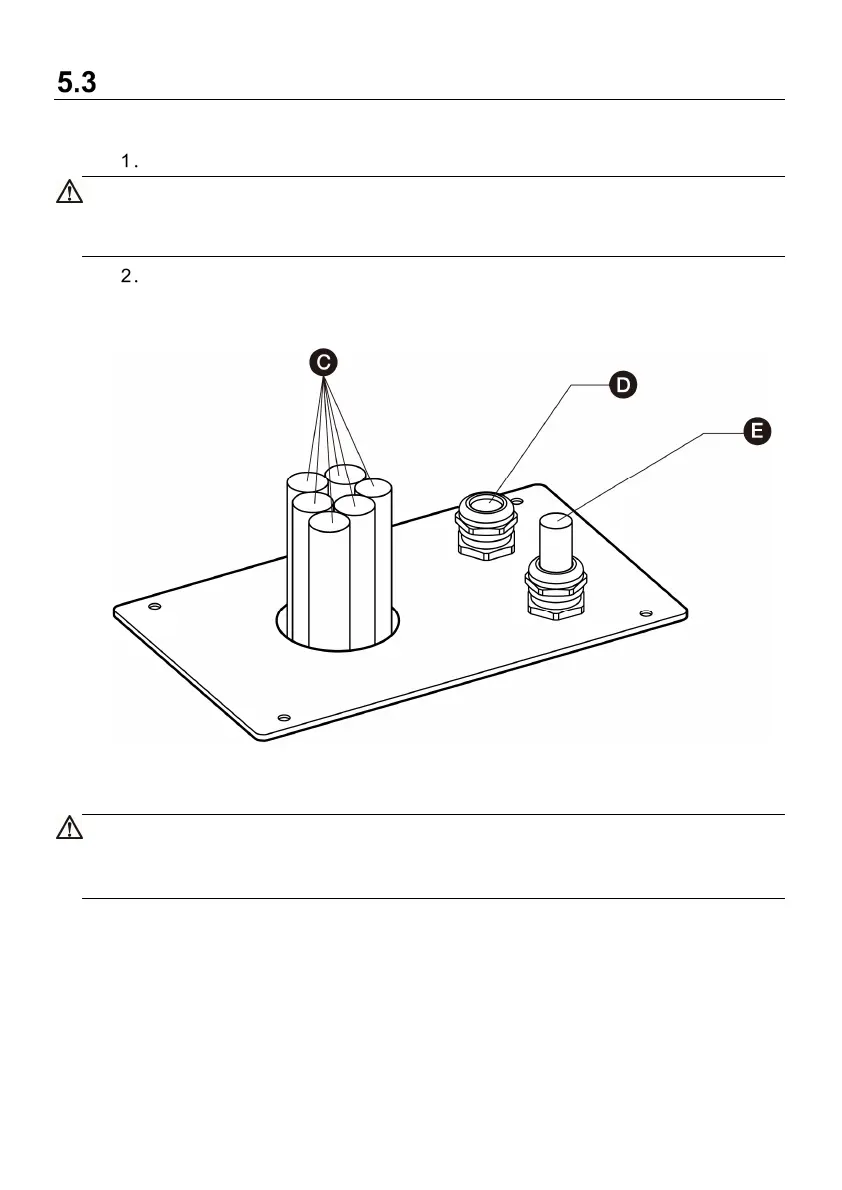

Figure 5-10 Guiding the Cables through the Cable Gland Plate
CAUTION
 If it is necessary, install the cable gland over the Ethernet cable.
 The cable gland (D) is optional.
