Autel MaxiCharger DC Fast - Installing the Charging Modules

41
Installing the Charging Modules
 To install the charging modules
Slowly push the module into the slot.
Table 5-7 Charging Module Installation Specifications (for MaxiCharger DC 120)
Type
Rated
Power
Number of
Modules
Location
MaxiCharger DC
40
(EF040A2001/EF040C2001)
40 kW 2 PCS 1, 4
MaxiCharger DC
60
(EF060A3001/EF060C3001)
60 kW 3 PCS 1, 2, 4
MaxiCharger DC 80
(EF080A3001/EF080C3001)
80 kW 4 PCS 1, 2, 4, 5
MaxiCharger DC 100
(EF100A3001/EF100C3001)
100 kW 5 PCS 1, 2, 3, 4, 5
MaxiCharger
DC 120
(EF120A3001/EF120C3001)
120 kW 6 PCS 1, 2, 3, 4, 5, 6

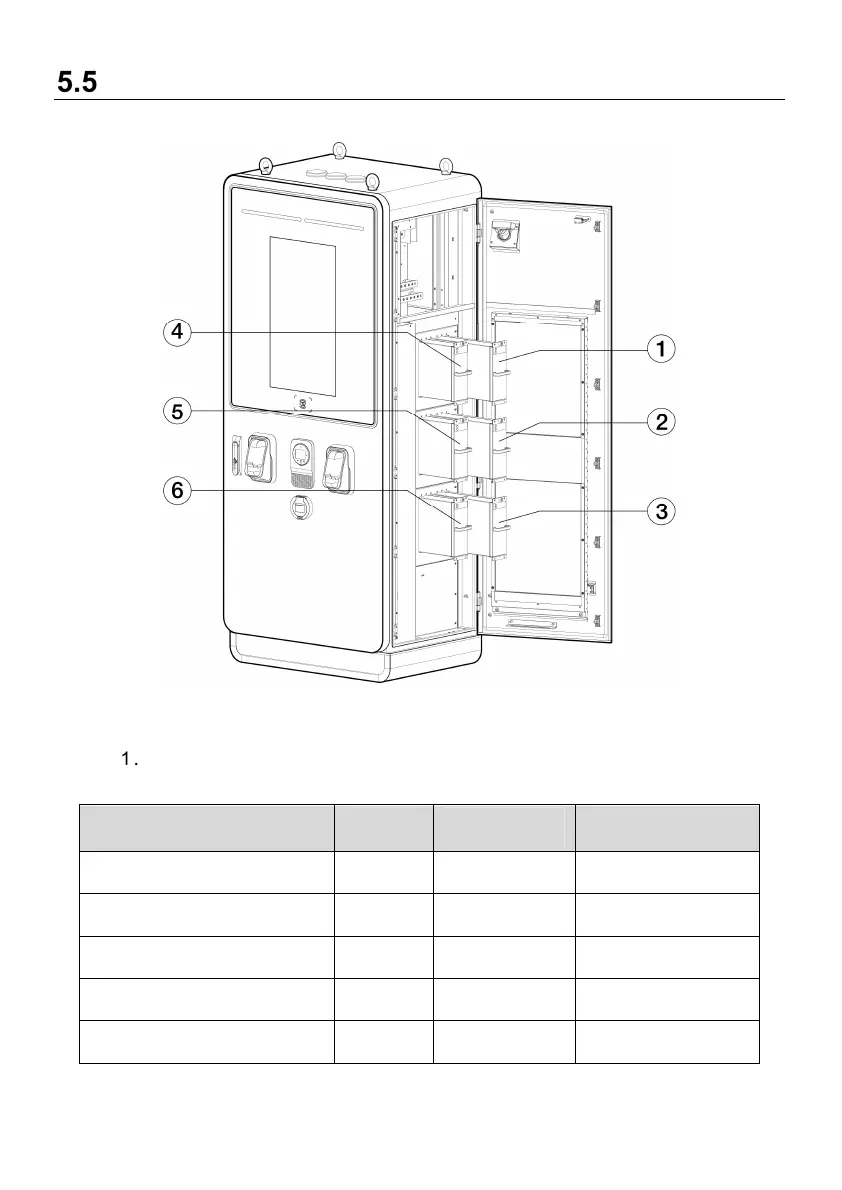

Figure 5-18 Installing the Charging Modules (for MaxiCharger DC 120)
