Electrical Wiring
Connecting the PE Wire
To connect the PE wire
Cut the PE wire (C) of the power cable to the correct length to reach the PE
busbar (B).
Use the wire stripper to remove 20 mm of the insulation from the end of the
wires (or strip the wire if necessary). Make sure that the strip length is
compatible with the cable lug (A).
Use the crimping tool to attach the cable lug to the end of the wire.
Use the fasteners (D) to attach the PE wire to the PE busbar.
Tighten the fasteners to the correct torque.
NOTE
We recommend to use the torque 20.5 ± 2.5 Nm (181.44 ± 22.13 lb·in).

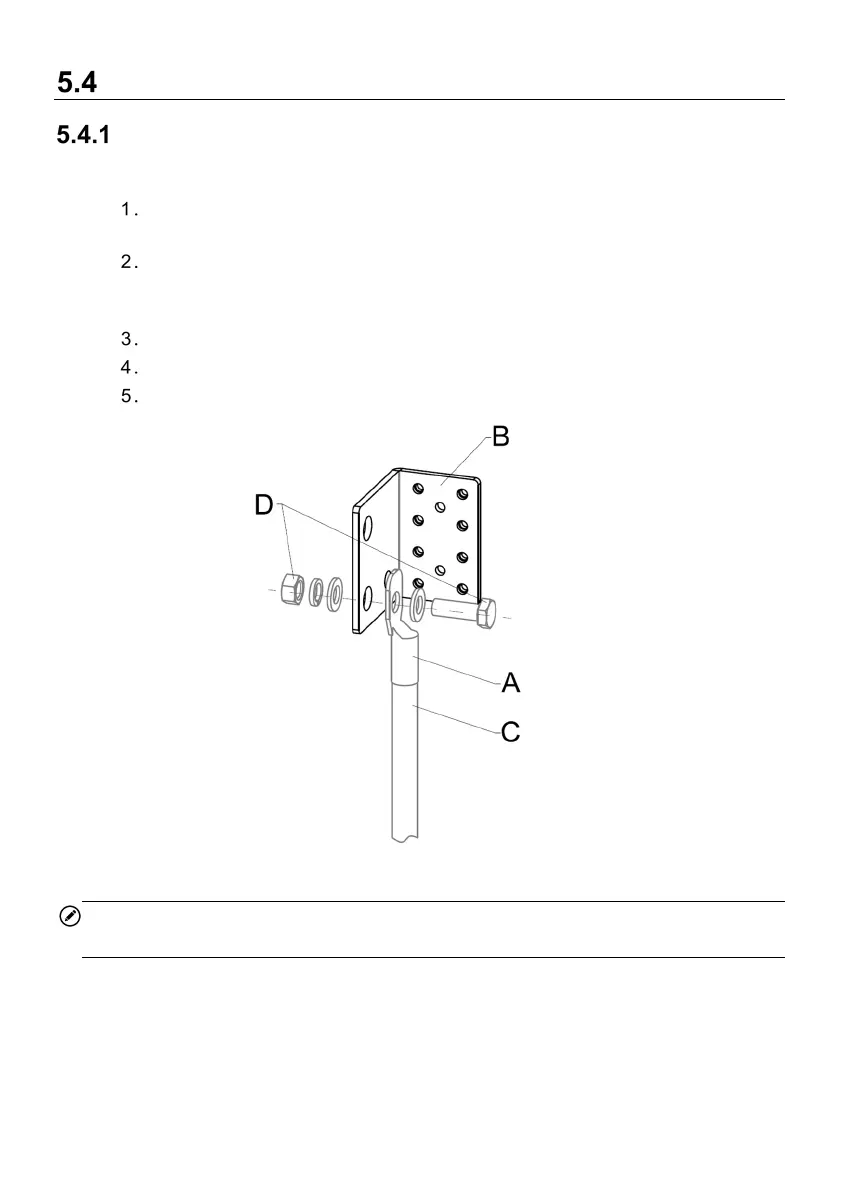

Figure 5-11 PE Wire Connection
