Autel MaxiCharger DC Fast - Measuring the DC Voltage

54
Measuring the DC Voltage
Remove the insulating barrier and use a voltage tester to measure the DC voltage
between the output terminals, make sure that all the measured voltages are 0 volts.
 Power module group output 1 — (A) to power module group output 1+ (B)
 Power module group output 2 — (C) to power module group output 2+ (D)
 EV charging cable 1 output — (E) to EV charging cable 1 output + (F)
 EV charging cable 2 output — (G) to EV charging cable 2 output + (H)

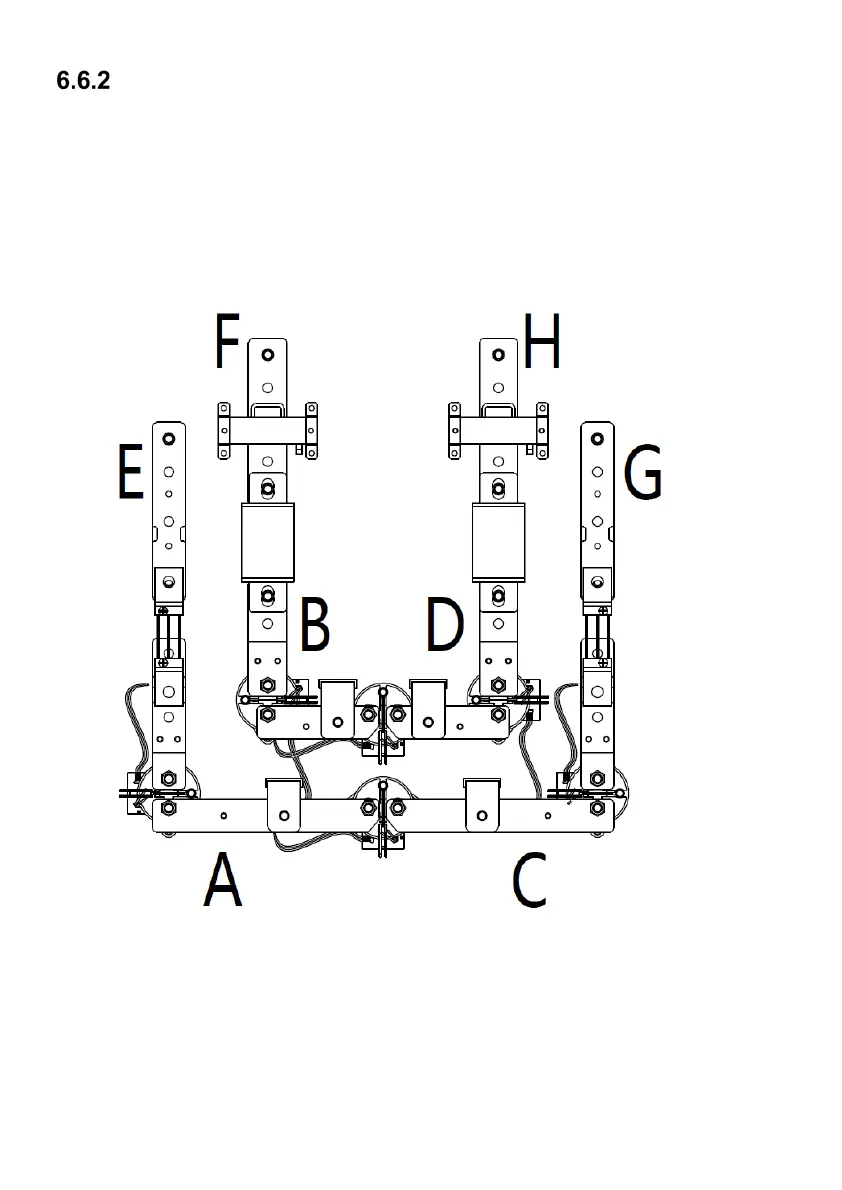

Figure 6-8 Output Terminals Diagram
