Connecting the AC Input Wires
To connect the AC input wires
Cut the wires N, L1, L2, and L3 to the correct length to reach the connectors
on the AC fuse copper busbar.
Use the wire stripper to remove 20 mm of the insulation from the end of the
wires (or strip the wire if necessary). Make sure that the strip length is
compatible with the cable lugs.
Use the crimping tool to attach the cable lugs to the end of the wires.
Use the fasteners to attach the wires to the connectors:
L1 wire to the connector A
L2 wire to the connector B
L3 wire to the connector C
N wire to the connector D
Tighten the fasteners to the correct torque.
NOTE
We recommend to use the torque 20.5 ± 2.5 Nm (181.44 ± 22.13 lb·in).
Required cable slack for the AC input cable (measured from the top of the
foundation) is 600 mm (23.62").
Use cable ties to bundle the wires in two or three places.
If the conduit opening was not sealed as part of the site preparation process,

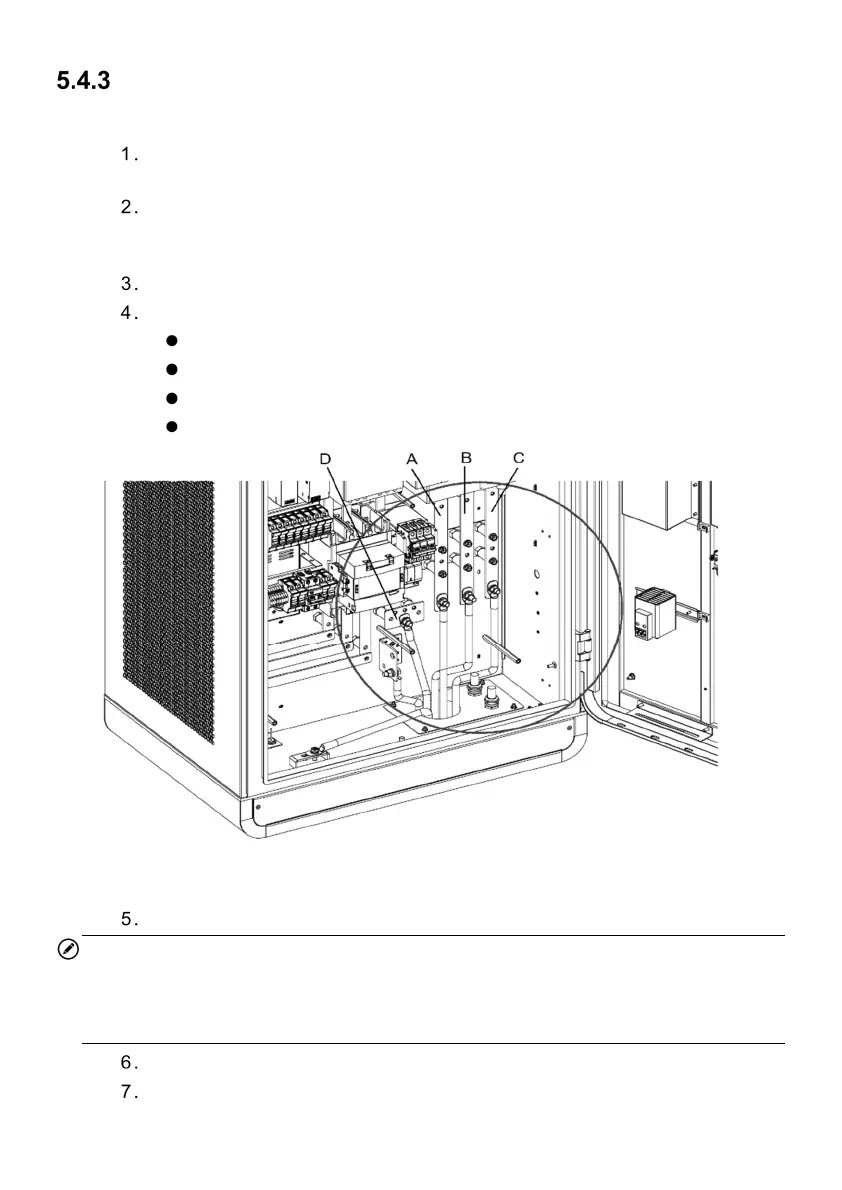

Figure 5-14 Connecting the AC Input Wires
