Location Requirements
An installation space of 2420 x 1950 mm (for MaxiCharger DC 120) or 2620 x 2050 mm
(for MaxiCharger DC 240) is required in order to ensure normal operation and proper
airflow around the unit. The space is calculated as follows:
A. Front side of the MaxiCharger
B. Rear side of the MaxiCharger
C. Left side of the MaxiCharger
D. Right side of the MaxiCharger
E. Cabinet

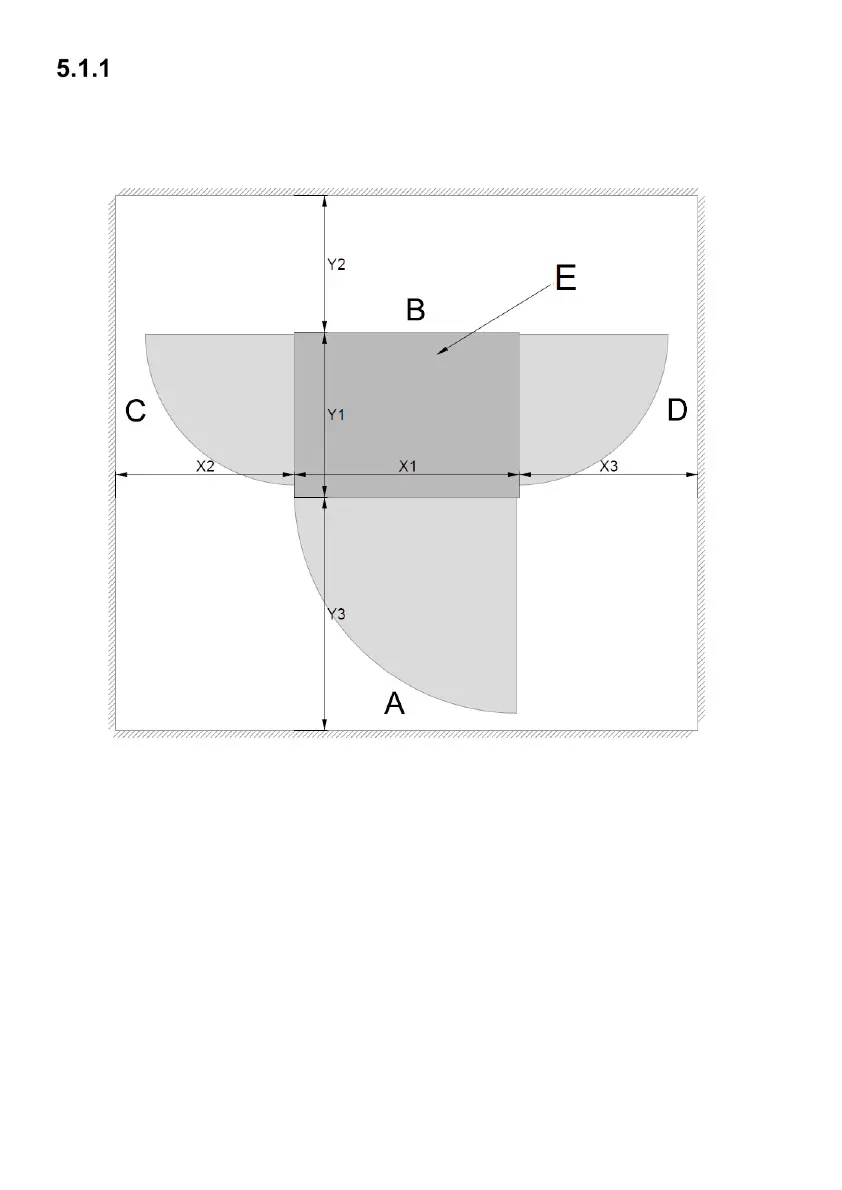

Figure 5-1 Location Requirements
