Table 5-8 Charging Module Installation Specifications (for MaxiCharger DC 240)
Type Rated Power
Number of
Modules
Location
MaxiCharger DC 160
(EF160A3001)
160 kW 8 PCS 1, 2, 3, 4, 7, 8, 9, 10
MaxiCharger DC 180
(EF180A3001)
180 kW 9 PCS 1, 2, 3, 4, 5, 7, 8, 9, 10
MaxiCharger DC 200
(EF200A3001)
200 kW 10 PCS
1, 2, 3, 4, 5, 7, 8, 9, 10,
11
MaxiCharger DC 220
(EF220A3001)
220 kW 11 PCS
1, 2, 3, 4, 5, 6, 7, 8, 9,
10, 11
MaxiCharger DC 240
(EF240A3001)
240 kW 12 PCS
1, 2, 3, 4, 5, 6, 7, 8, 9,
10, 11, 12

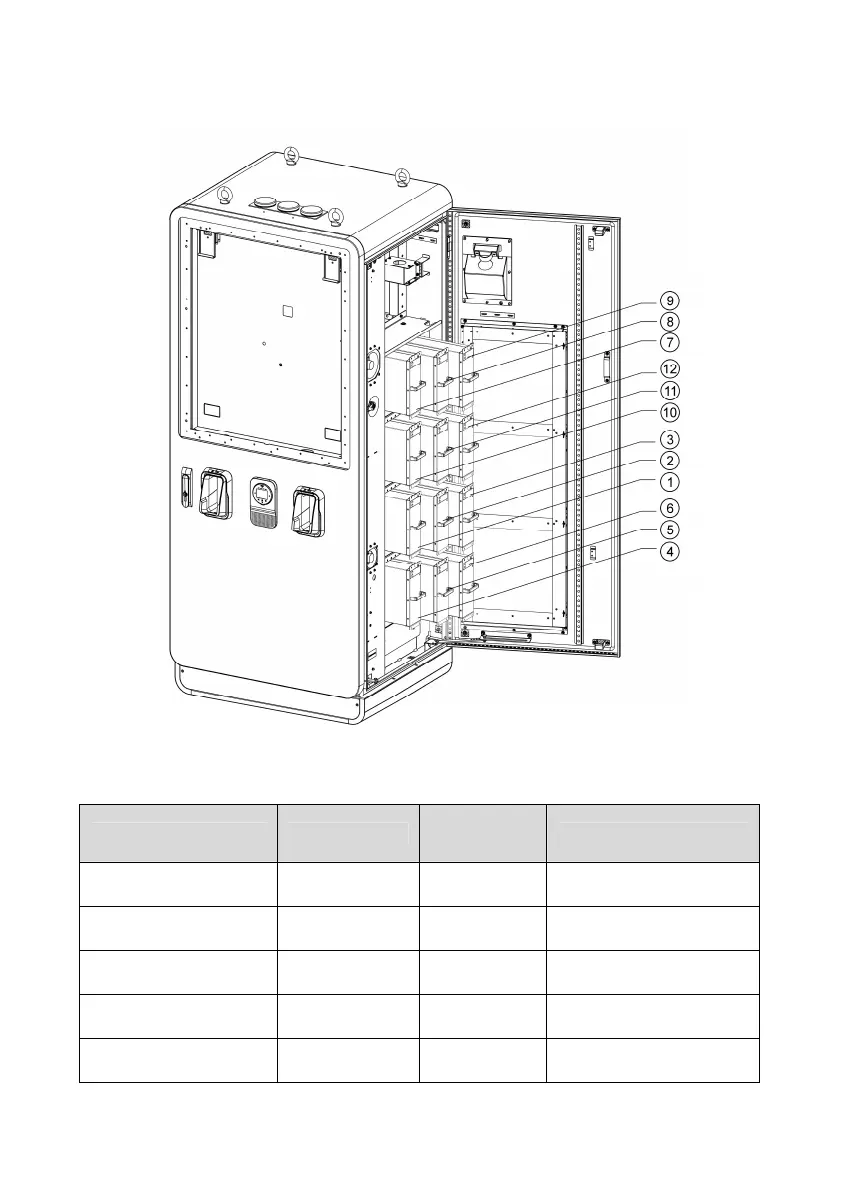

Figure 5-19 Installing the Charging Modules (for MaxiCharger DC 240)
