48 AutoFarm GPS AutoSteer
Wheel Angle Sensor Installation Guidelines
Note: The threaded rods must be cut to the correct lengths before final assembly.
Install the short linkage arm on the wheel angle sensor shaft. See Figure 4-17.
Install the long threaded linkage on the moving component of the steering system. See Figure 4-17.

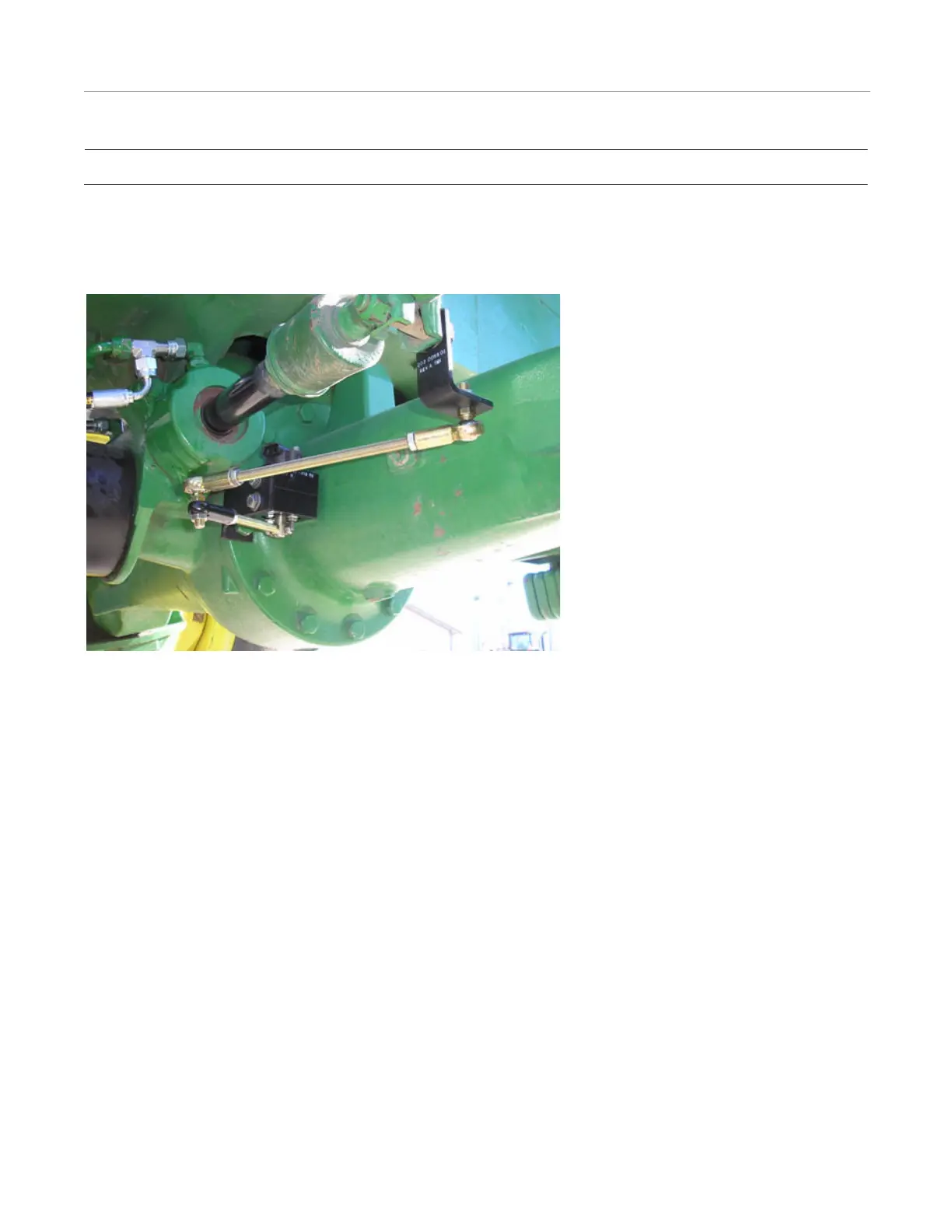

Figure 4-17 Linkage Rods Installed
Tighten the screw and nut that secure the linkage arm to the angle sensor shaft. See Figure 4-18.
Tighten all linkage nuts and jam nuts after the linkage rod lengths have been adjusted.
