Hardware Installation Guide 49
Wheel Angle Sensor Installation Guidelines

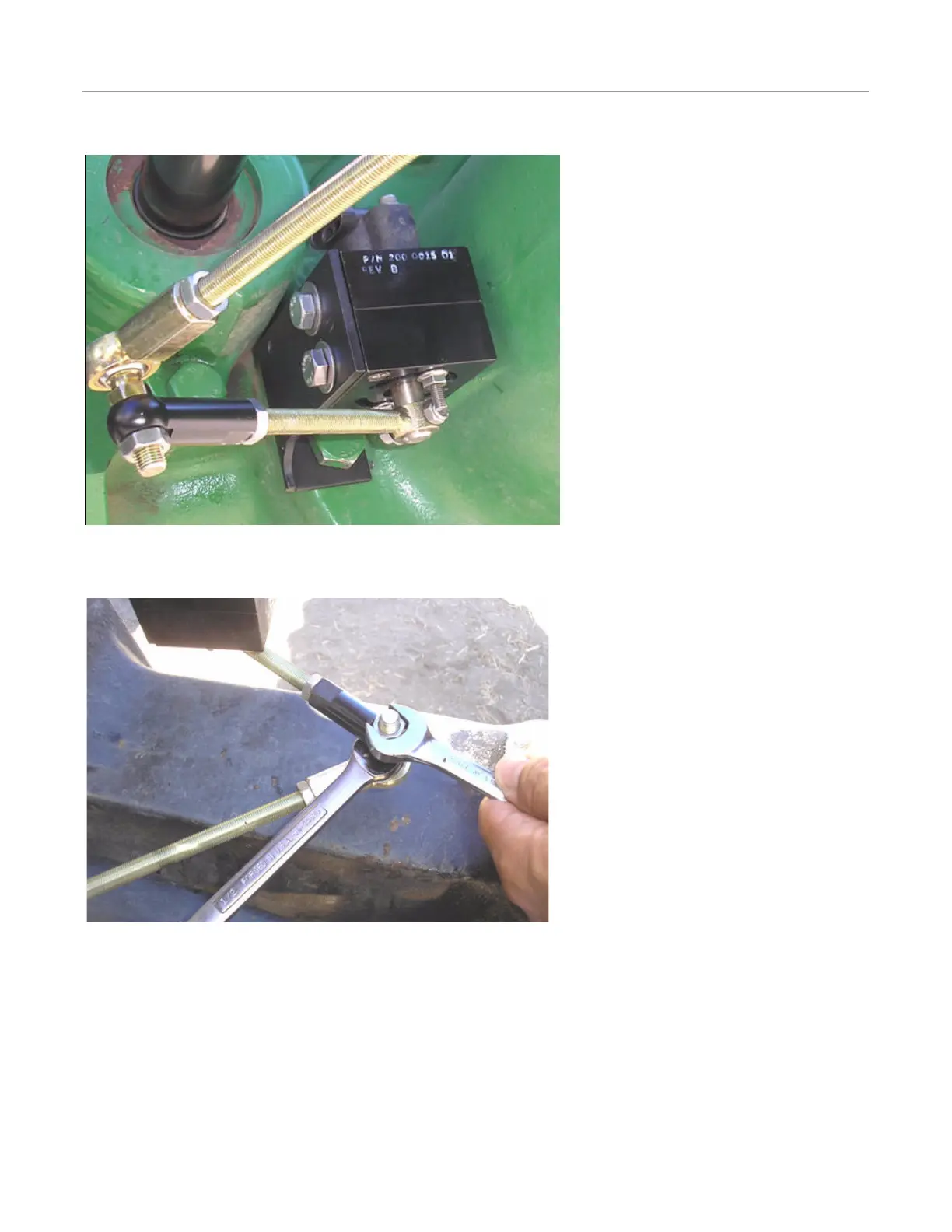

Figure 4-18 Linkage Rod Connections
Tighten the bolt securing the two linkage rods together. See Figure 4-19.
Figure 4-19 Linkage Rod Ball Joint Bolt
Tighten the two screws that secure the potentiometer on the wheel angle sensor, after final adjustments. Use a 5/32” hex key
and a 3/8” wrench. See
Figure 4-20.
