50 AutoFarm GPS AutoSteer
Wheel Angle Sensor Installation Guidelines
Figure 4-20 Wheel Angle Sensor Potentiometer
Note: Do not turn the front wheels or drive the tractor before the wheel angle sensor has been adjusted using the
AutoFarm Calibration screens. The potentiometer can only rotate a maximum of 180 degrees and if it is rotated beyond
its mechanical stops, it will be permanently damaged.

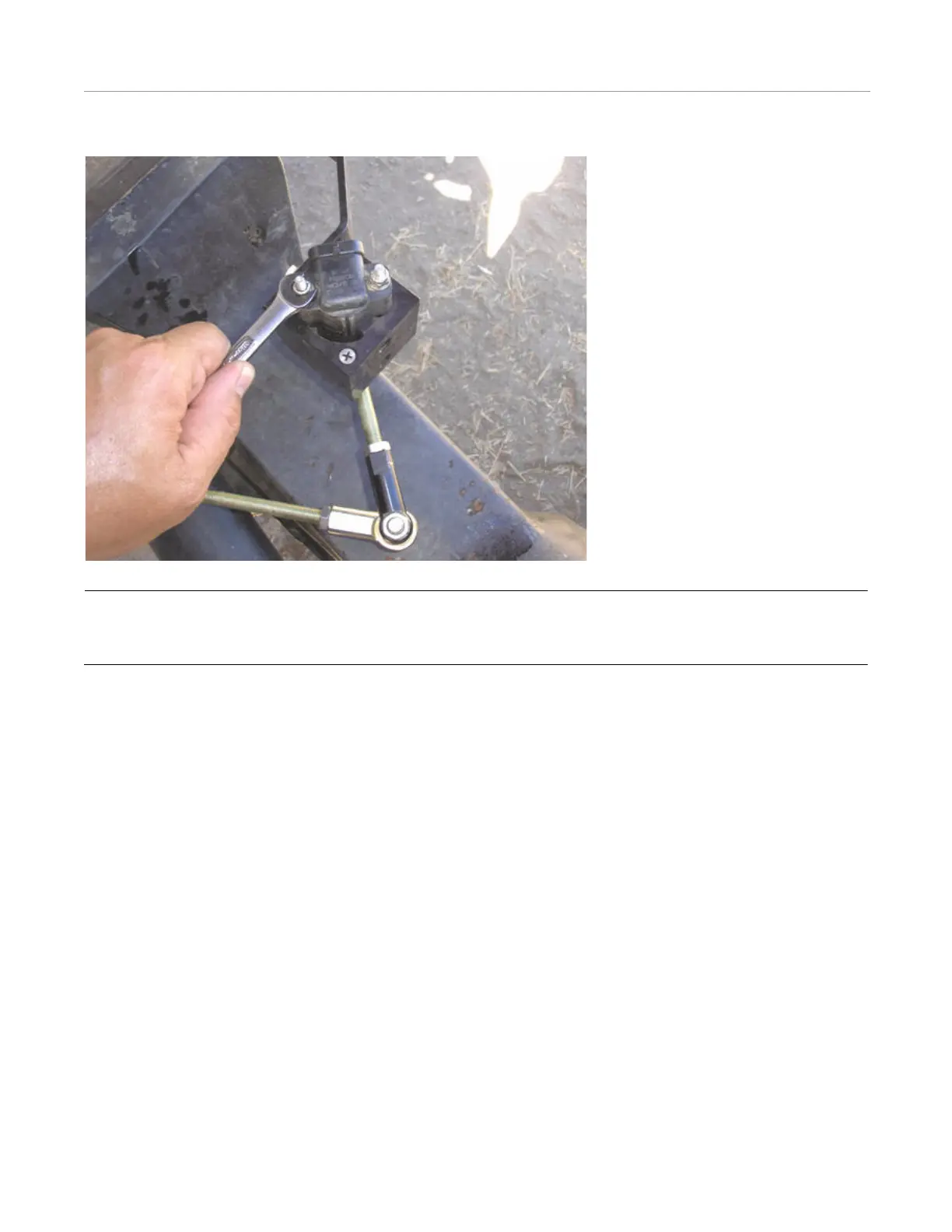

Tighten the screw on the sensor shaft. Use a 1/8” hex key and a 3/8” wrench. See Figure 4-21.
