4 Wiring Diagrams
30 © Copyright Reserved Autonics Co., Ltd.

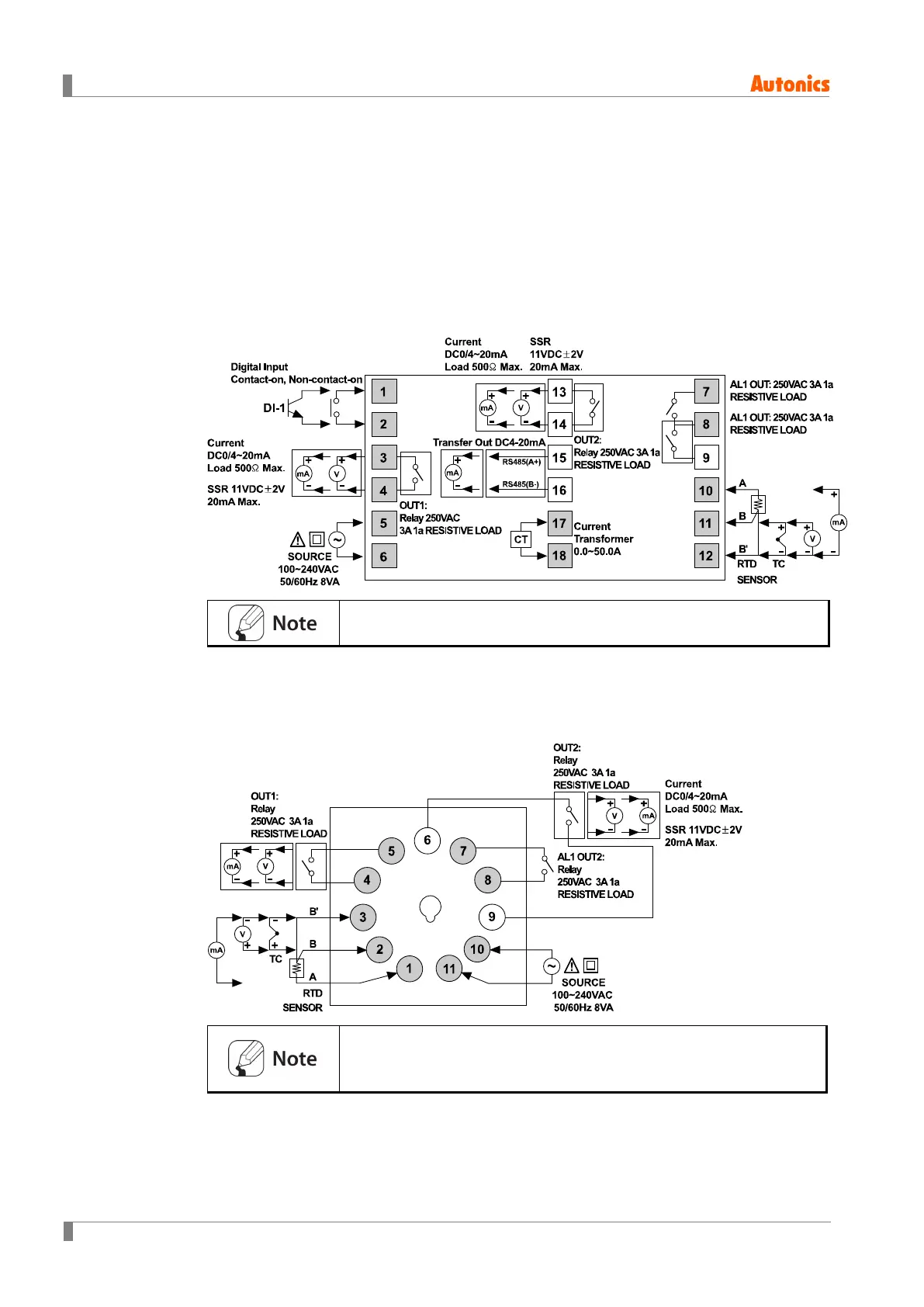

4 Wiring Diagrams
Standard model has shaded terminals only.
4.1 TK4S-Series
Features one digital input terminal due to limited number of terminal
blocks. Supports two multi SVs (SV1 and SV2) only.
4.2 TK4SP-Series
Does not feature any digital input terminal due to limited number of
terminal blocks.
11Pin Socket(PG-11, PS-11): Sold separately
