6.3.2 On/Off Control [PAR3 → C-MD → ONOF]
Controls the temperature by comparing PV (Present Value) with SV (Setting Value) and
turning power to the load on or off.
6.3.2.1 Hysteresis [PAR2 → hHYS/OFT/cHYS/cOFT]

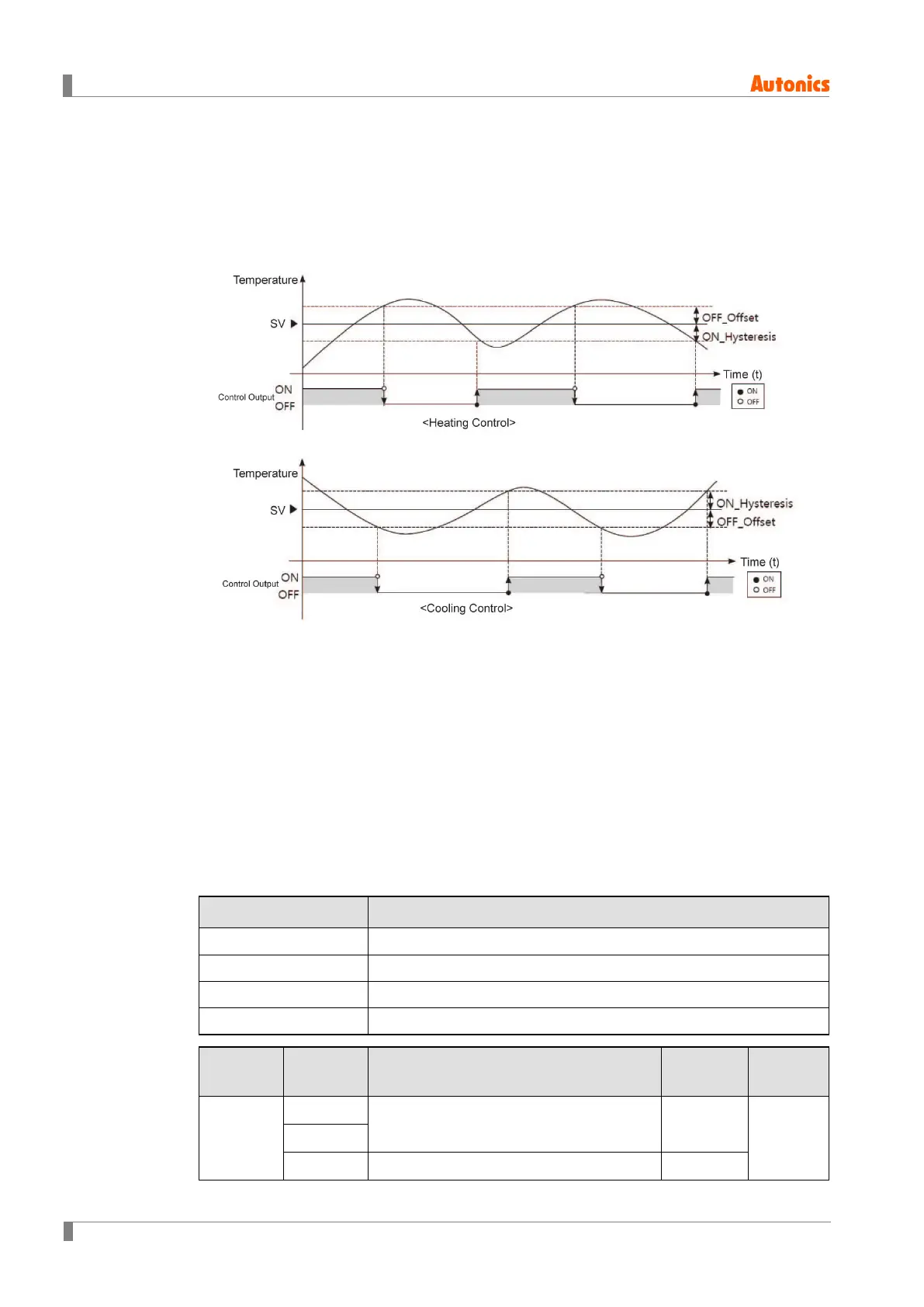

 Hysteresis is to adjust control output ON/OFF point in ON/OFF control mode.
ON_Hysteresis sets the output on point and OFF_Offset sets the off point.
 Setting hysteresis too low can result in hunting induced by disturbance (noise,
chattering, etc.). To minimize hunting, set ON_Hysteresis and OFF_Offset values with
consideration to the heater or cooler's capacity and thermal characteristics, the
control subject's response characteristics, the sensor's response characteristics and
installation conditions, and other defining factors.
Parameter Description
H.HYS
Configures ON_Hysteresis for heating control.
H.OFT
Configures OFF_Offset for heating control.
C.HYS
Sets ON_Hysteresis for cooling control.
C.OFT
Sets OFF_Offset for cooling control.
Setting
Group
Paramet
er
Setting Range
Factory
Default
Unit
PAR2
H.HYS
Temperature H, Analog:
001
to
100
Temperature L:
00.1
to
10.0
002
℃/℉ /-
C.HYS
H.OFT
Temperature H, Analog:
001
to
100
000
