6 Parameter Settings and Functions
90 © Copyright Reserved Autonics Co., Ltd.

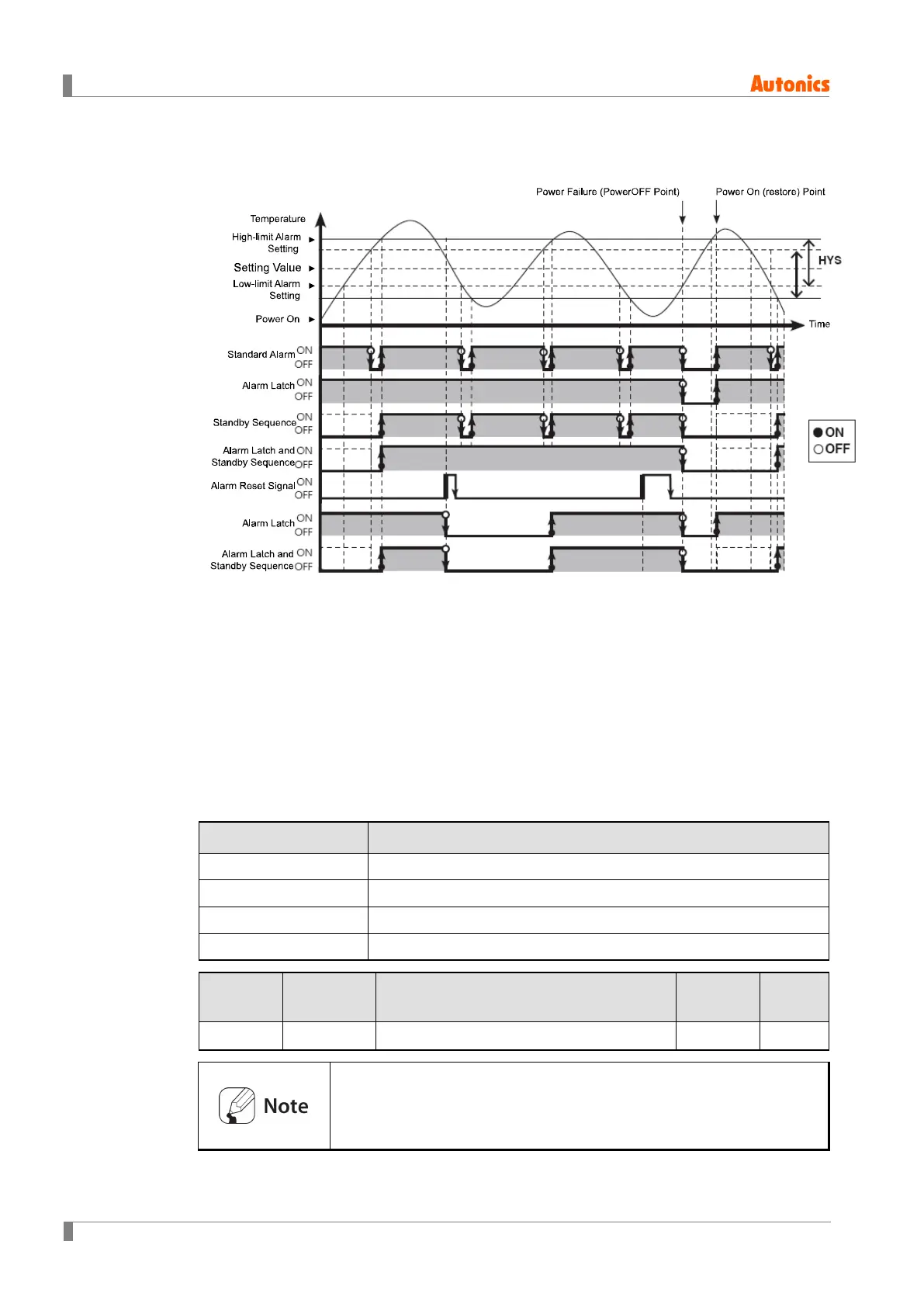

6.4.11.5 Deviation High/Low-limit Alarm (hysteresis overlap)
6.5 Analog Transmission
6.5.1 Analog Transmission Output Value Settings [PAR4 →
AO-M]
Transmission output is a type of auxiliary output that converts the controller's PV, SV, H-
MV, and C-MV to analog current (DC 4 to 20 mA) for external transmission.
Setting Description
PV
PV Transmission Output
SV
SV Transmission Output
H-MV
Heating MV Transmission Output
C-MV
Cooling MV Transmission Output
Setting
Group
Parameter Setting Range
Factory
Default
Unit
PAR4
AO-M
PV
/
SV
/
H-MV
/
C-MV
PV
-
 This parameter is activated in transmission output models only.
 Transmission output is constant current output. Too great a resistance
from the load can cause the output value to change.
 There is no optional output below 4 mA or above 20 mA.
