6 Parameter Settings and Functions
© Copyright Reserved Autonics Co., Ltd. 91
6.5.2 Transmission Output High/Low-limit Value
Settings[PAR4 → FS-L/FS-H]
If the transmission output value (AO-M) is below the transmission output lower limit (FS-L),
4 mA output will be provided. If the transmission output is between the lower limit (
FS-L)
and upper limit (
FS-H), a certain proportional output within the range 4 mA and 20 mA will
be provided. If it is above the upper limit (
FS-H), 20 mA output will be provided.
Setting Description
FS-L
Sets the lower limit of transmission output (4 mA).
FS-H
Sets the upper limit of transmission output (20 mA).
Setting
Group
Parameter Setting Range
Factory
Default
Unit
PAR4
FS-L
PV
Temperature: Usage Range
Analog: High/Low Scale
Range
-200
Digit
SV
SV Low-limit (
L-SV
) to SV
High-limit (
H-SV
)
H-MV
/
C-
MV
000.0
to
100.0
FS-H
PV
Temperature: Usage Range
Analog: High/Low Scale
Range
1350
SV
SV Low-limit (
L-SV
) to SV
High-limit (
H-SV
)
H-MV
/
C-
MV
000.0
to
100.0
If transmission output upper limit (
FS-H
) is transmission output lower limit
(
FS-L
), the transmission output is 4 mA.

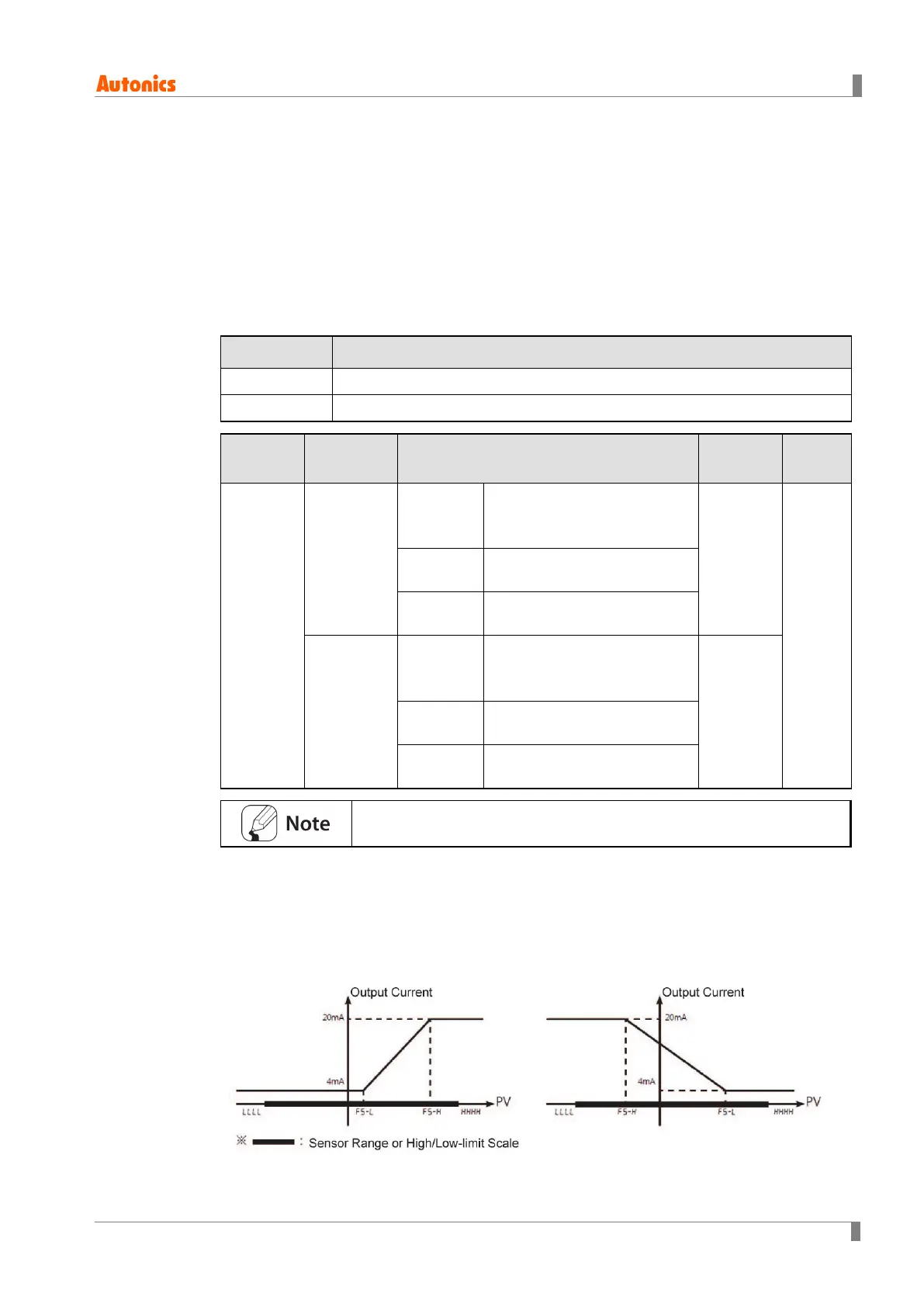

(1) PV Transmission Output
PV within sensor range or upper/lower limit scale can be converted and transmitted as
current within the range of 4 mA and 20 mA.
