Inserting a VoIP module
About this task
Electrostatic alert:
Hold modules only by the edges to avoid damage from static electricity. Do not touch the top or
bottom of the circuit board. If possible, wear a wrist-strap and use an anti-static bag.
Caution:
The connector pins can be bent or damaged if the module is handled roughly, or if misaligned
and then forced into position.
Procedure
1. The lower board for the MP120 has a plastic standoff. Insert the plastic standoff to MP120.
Note:
This step is applicable only for MP120 installation.

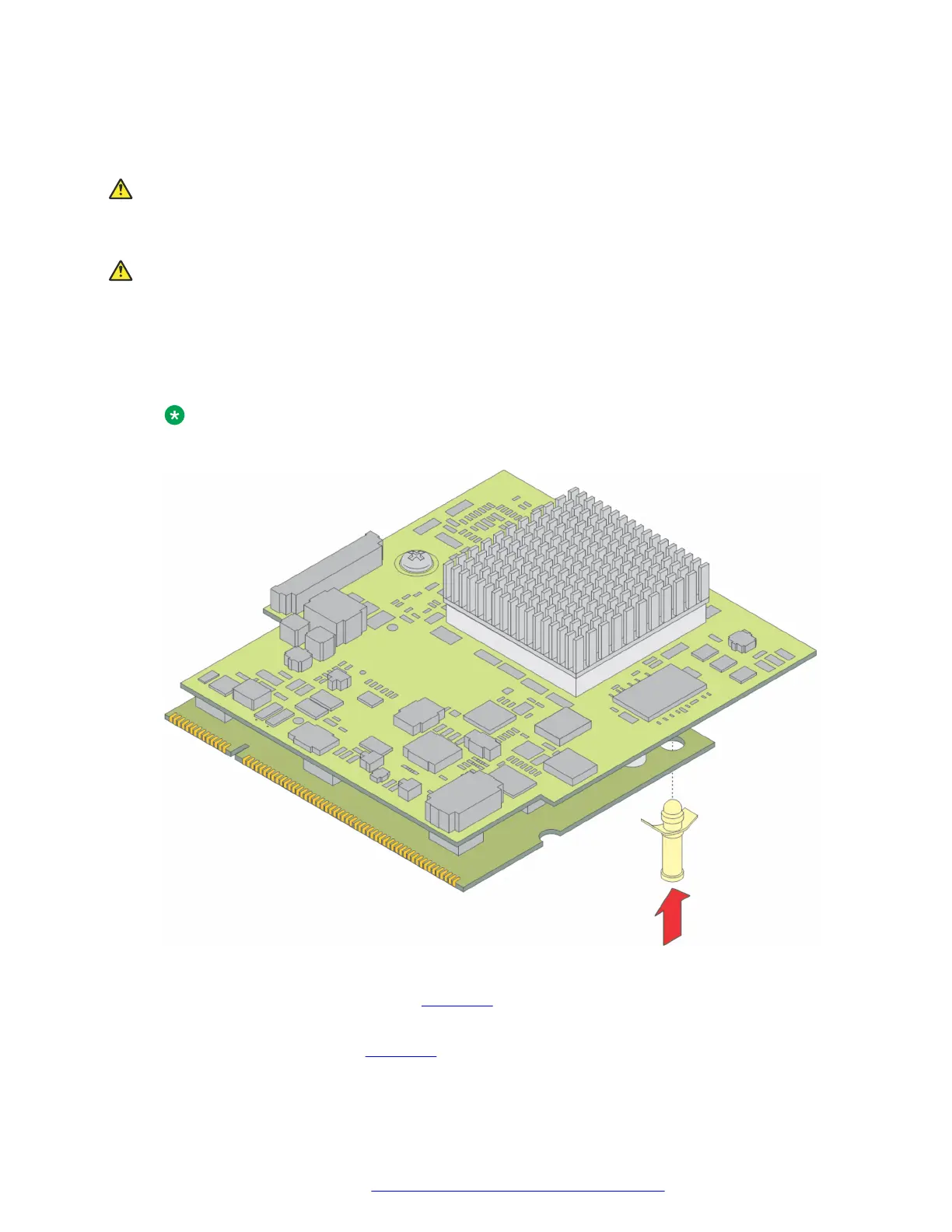

Figure 27: Insert plastic standoff
2. Locate the VoIP module slot (see the figure on page 78).
3. Position the VoIP module at a 45 degree angle to the main board, and start inserting it into
the VoIP module slot (see the figure on page 78).
Field Replaceable Unit upgrades and replacements
February 2017 Installation and Upgrades for the Avaya Branch Gateway G430 77
