Policy lists to packets

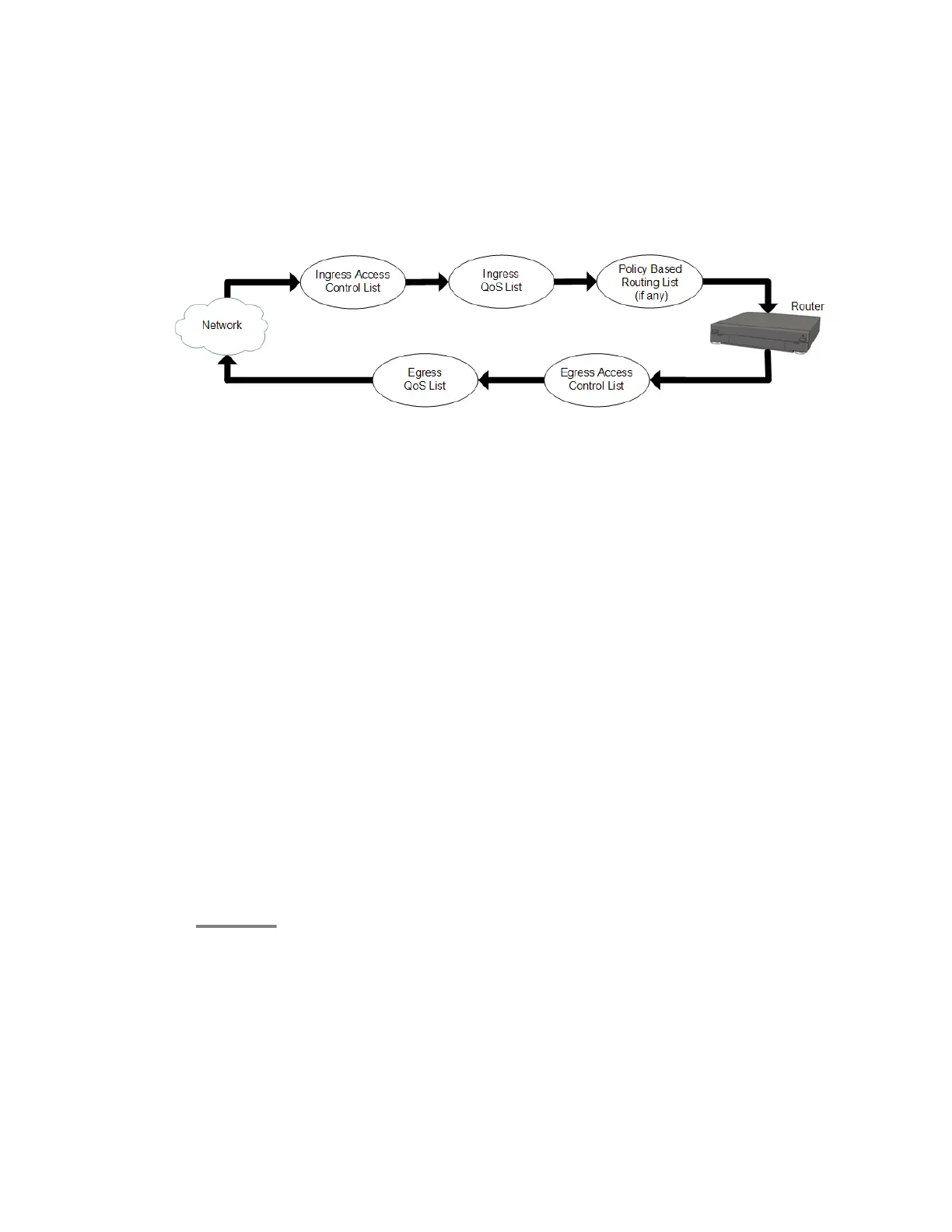

The following figure illustrates the order in which the Branch Gateway applies policy lists to
packets.
Policy list attachment configuration
You can configure which policy lists are attached to each interface. You can choose:
• The ingress access control list and the egress access control list from among the access
control lists that are configured on the Branch Gateway.
• The ingress QoS list and the egress QoS list from among the QoS lists that are configured
on the Branch Gateway.
Attaching policy lists and access control lists
Procedure
Choose one of the following commands:
• To attach an access control list to an interface as its ingress access control list,
enter the interface context and enter ip access-group list number in.
• To attach an access control list to an interface as its egress access control list,
enter the interface context and enter ip access-group list number out.
Policy lists
