The split view is useful when entering flight plans because a
preview of the pending modification will be shown (see
“Previewing Flight Plans” on page 2-9).
It is also useful for reviewing the flight plan leg-by-leg. When the
split view is active, the View LSK has a third option named
“Cursor”. When that view is selected, the map side of the display
will be centered on the terminating point of the leg surrounded by
the cursor. As a reminder of the “Cursor” view being active, the
legend “Cursor Centered” will be displayed near the top of the
map. By moving the cursor through the flight plan and having an
appropriate zoom level, a nice overview of the flight plan can be
performed.

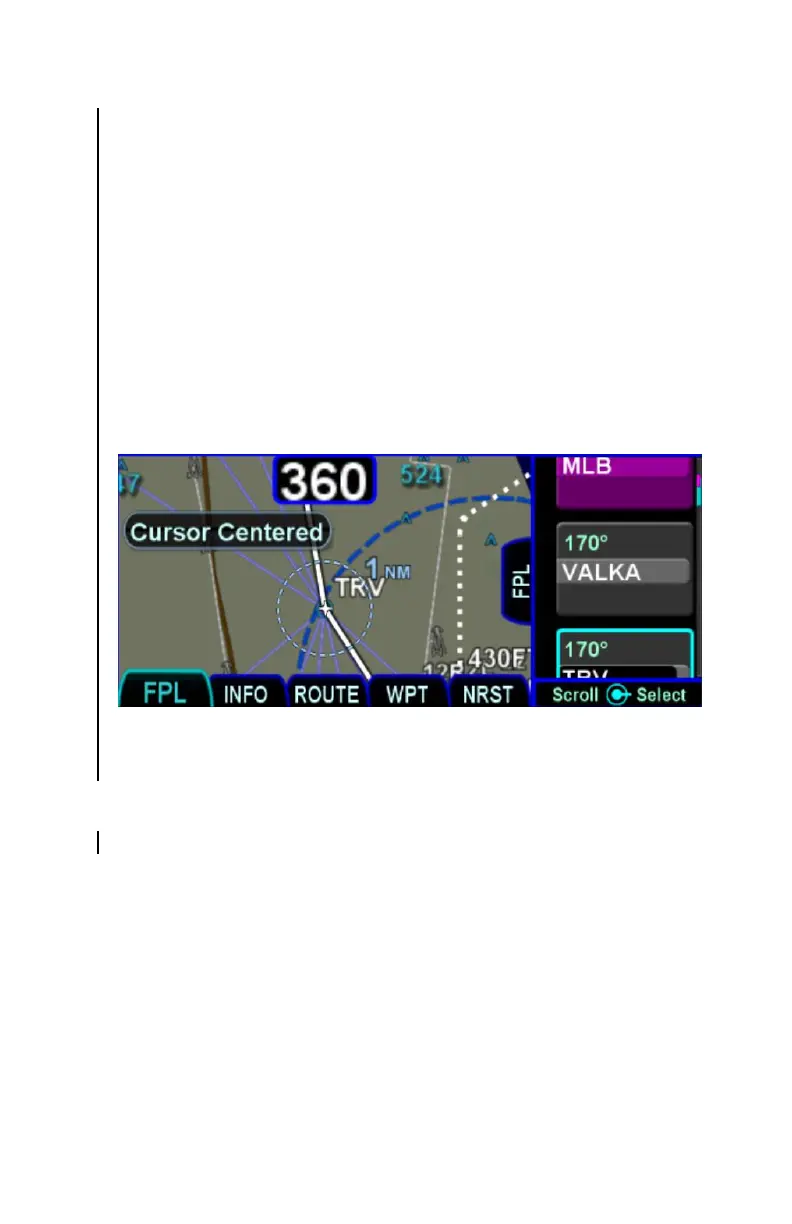

Cursor View Active
Flight Plan Cursors
There are three types of cursors – an insert cursor, an edit cursor,
and a field cursor. An insert cursor appears as a thin cyan
horizontal line that appears between flight plan rows. This cursor
allows you to insert new legs and procedures at that position. The
edit cursor appears as a cyan box surrounding the entire row and
allows you to perform operations on that row. A field cursor
appears as a filled cyan ("reverse video") box within a row.
