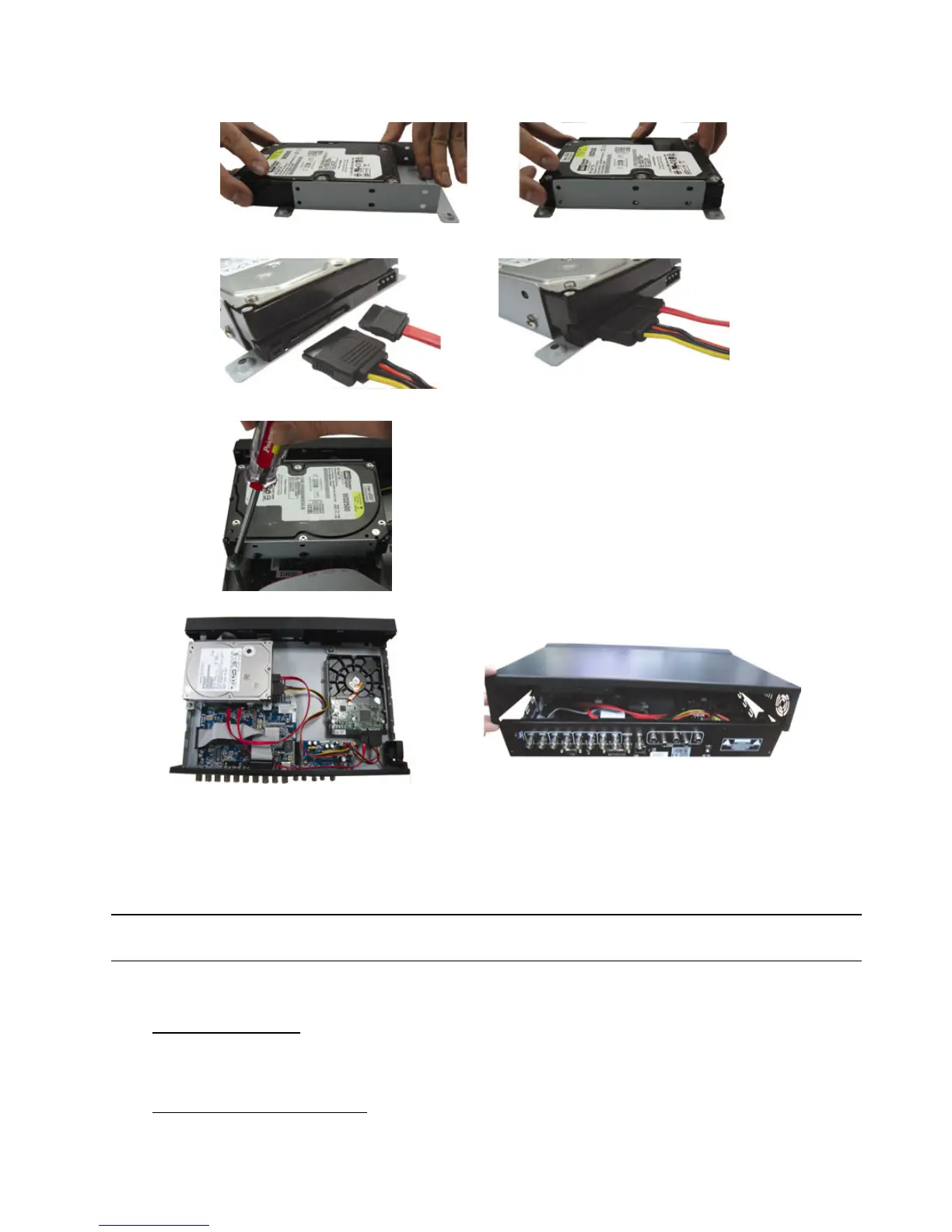

b) Get a compatible SATA HDD. Slide the HDD to the bracket, and fix it with two screws for each side.
There are three screw holes per side on the bracket, and you can choose two of them to secure the
HDD.
c) Connect the HDD to the power connector and data bus connector.
d) Screw the HDD bracket back to the DVR base.
STEP3: Replace the top cover and fasten the screws you loosened in STEP1.
3.2 Camera Connection
The cameras must be connected and power-supplied before the DVR is turned on. Connect the camera with the
indicated power supply. And then connect the camera video output to the DVR video input port with a coaxial cable or
RCA lines with BNC connectors (The DVR will automatically detect the video system of the camera).
Note: For detailed DVR video input / output ports, please refer to “2.2 Rear Panel” at page 6.
For detailed camera operation, please refer to its own manual.
3.2.1 Regular Camera Connection
1) Video cable connection
Connect the camera video output to the DVR video input port with a coaxial cable or RCA line with BNC
connector.
2) Audio cable connection (Optional)
Connect the camera audio output to the DVR audio input port with a coaxial cable or RCA line with BNC
connector.
To Next Page
