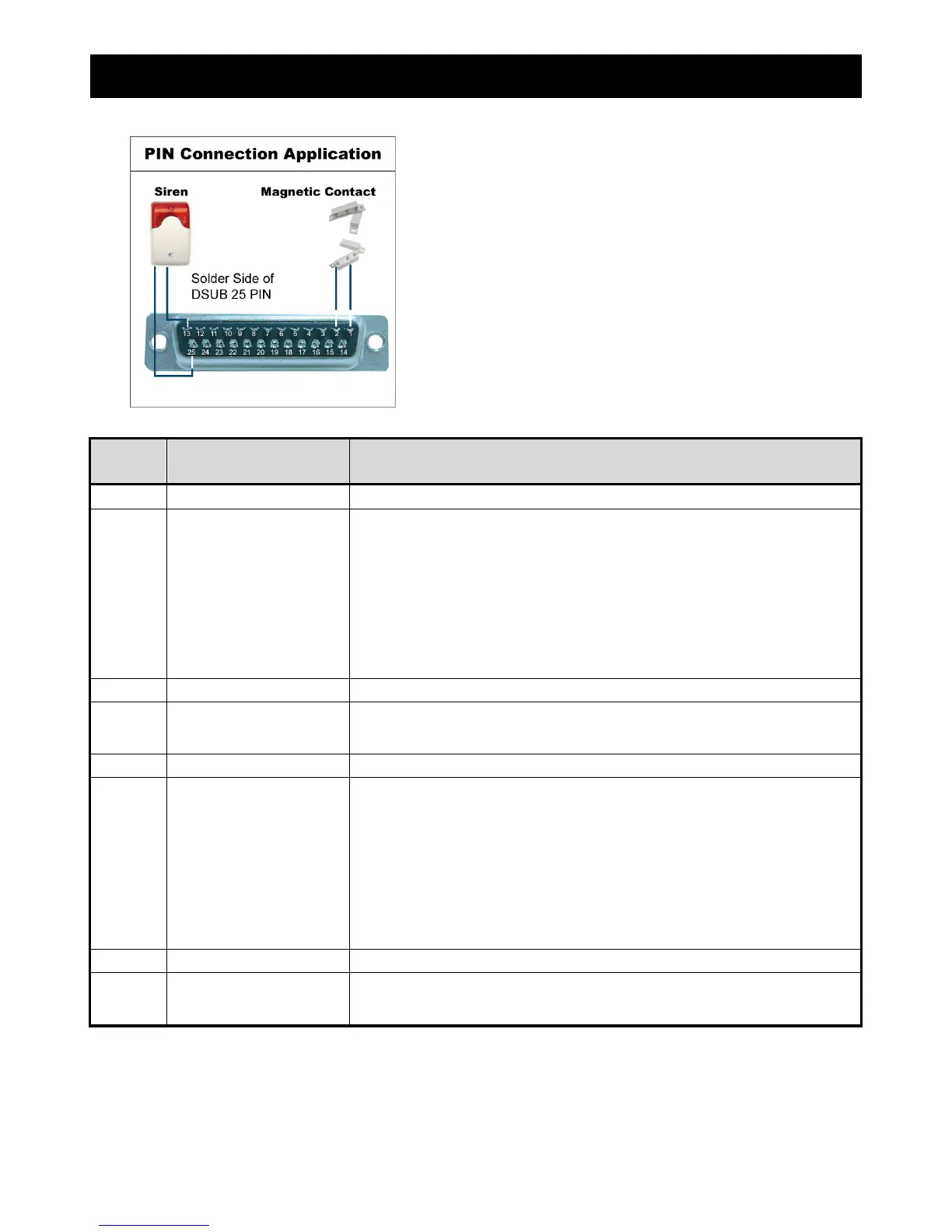

APPENDIX 1 PIN CONFIGURATION
‧ For Model 1, & 4
Siren: When the DVR is triggered by alarm or motion, the COM
connects with NO and the siren with strobe starts wailing and
flashing.
Magnetic Contact: When the magnetic contact is opened, the
alarm will be triggered and the recording is on.
PIN FUNCTION DESCRIPTION
1 GND GROUND
2~9 ALARM INPUT
Connect ALARM INPUT (PIN 2 -- 9) and GND (PIN 1) connector with wires. Once an
alarm is triggered, the DVR will start recording and the buzzer will be on.
PIN 2 is Alarm 1. Once the alarm is triggered, the CH1 of the DVR will start alarm-triggered recording.
PIN 3 is Alarm 3. Once the alarm is triggered, the CH3 of the DVR will start alarm-triggered recording.
PIN 4 is Alarm 5. Once the alarm is triggered, the CH5 of the DVR will start alarm-triggered recording.
PIN 5 is Alarm 7. Once the alarm is triggered, the CH7 of the DVR will start alarm-triggered recording.
PIN 6 is Alarm 9. Once the alarm is triggered, the CH9 of the DVR will start alarm-triggered recording.
PIN 7 is Alarm 11. Once the alarm is triggered, the CH11 of the DVR will start alarm-triggered recording.
PIN 8 is Alarm 13. Once the alarm is triggered, the CH13 of the DVR will start alarm-triggered recording.
PIN 9 is Alarm 15. Once the alarm is triggered, the CH15 of the DVR will start alarm-triggered recording.
10~12 PIN OFF NA
13 EXTERNAL ALARM NO
Under the normal operation, COM disconnects with NO. But when any alarm is
triggered, COM connects with NO.
Attention: The voltage restriction is under DC24V 1A.
14 PIN OFF NA
15~22 ALARM INPUT
Connect ALARM INPUT (PIN 15 – 22) and GND (PIN 1) connector with wires. Once
an alarm is triggered, the DVR will start recording and the buzzer will be on.
PIN 15 is Alarm 2. Once the alarm is triggered, the CH2 of the DVR will start alarm-triggered recording.
PIN 16 is Alarm 4. Once the alarm is triggered, the CH4 of the DVR will start alarm-triggered recording.
PIN 17 is Alarm 6. Once the alarm is triggered, the CH6 of the DVR will start alarm-triggered recording.
PIN 18 is Alarm 8. Once the alarm is triggered, the CH8 of the DVR will start alarm-triggered recording.
PIN 19 is Alarm 10. Once the alarm is triggered, the CH10 of the DVR will start alarm-triggered recording.
PIN 20 is Alarm 12. Once the alarm is triggered, the CH12 of the DVR will start alarm-triggered recording.
PIN 21 is Alarm 14. Once the alarm is triggered, the CH14 of the DVR will start alarm-triggered recording.
PIN 22 is Alarm 16. Once the alarm is triggered, the CH16 of the DVR will start alarm-triggered recording.
23~24 PIN OFF NA
25 EXTERNAL ALARM COM
Under the normal operation, COM disconnects with NO. But when any alarm is
triggered, COM connects with NO.
Attention: The voltage restriction is under DC24V 1A.
