5 Integration
Configuring IO-
Link module

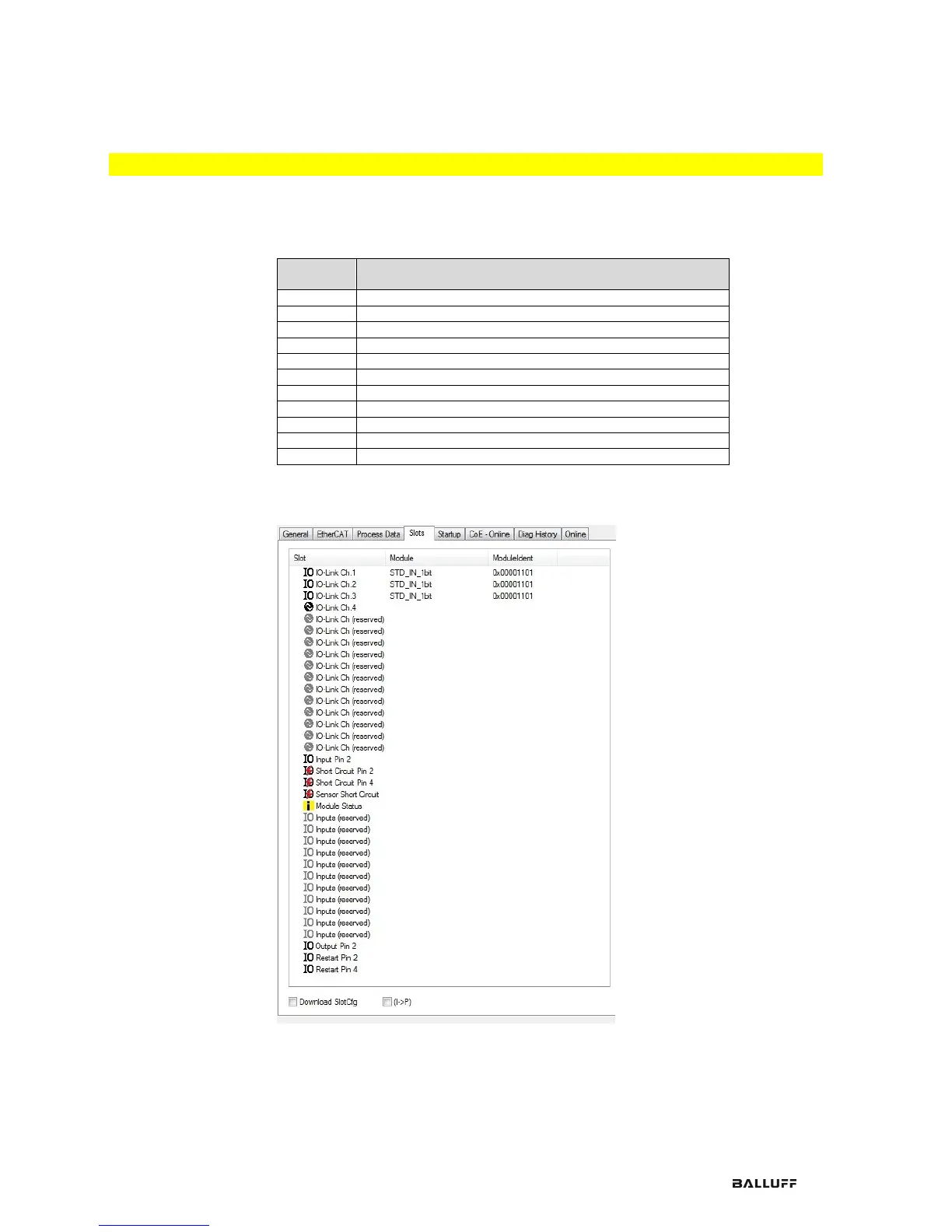

BNI ECT-5x7-005-Z040 is a modular device. It has the following slot structure:
Slot
number
Meaning
1-4
IO-Link ports
9-16
Unused slots, reserved for future expansions
17
Input pin 2
18
Short circuit pin 2
19
Short circuit pin 4
20
Sensor short circuit
21
Module Status
22-32
Unused slots, reserved for future expansions
33
Output Pin 2 (Class A only)
34
Restart Pin 2 (Class A only)
35
Restart Pin 4 (Class A only)
The slots for future expansions are not used. A number of process data (buffer size) can be
assigned to the other slots.
