Balluff Network Interface EtherCAT™, BNI ECT-5x7-005-Z040
www.balluff.com
8
4 Technical Data

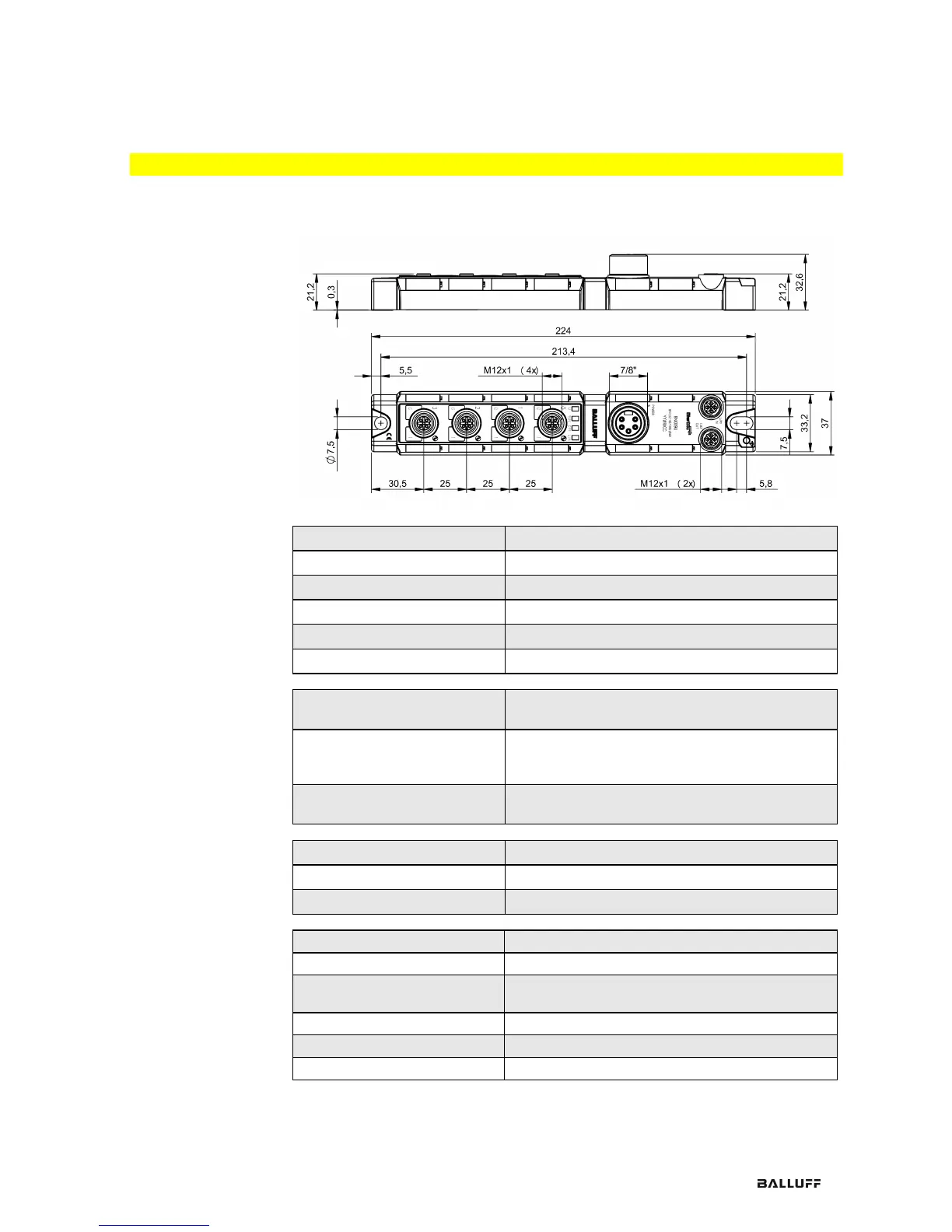

4.1. Dimensions
4.2. Mechanical Data
Housing material
Zinc die casting, matte nickel-plated
Enclosure rating per IEC 60529
IP 67 (only in plugged-in and screwed-down state)
Dimensions (W x L x H in mm)
37 x 224 x 32.6
Mounting type
2-hole screw attachment
Ground connection
M4
Weight
Approx. 380 gr.
4.3. Operating
conditions
Operating temperature T
a
Storage temperature
-5 °C ... 70 °C
-25 °C ... 70 °C
EMC
- Immunity
- Emission
EMC-directive 2004/108/EEC
- EN 61000-6-2
- EN 61000-6-4
Shock/vibration
EN 60068-2-6, EN 60068-2-27
EN 60068-2-29, EN 60068-2-64
4.4. Electrical Data
Supply voltage
18...30.2 V DC, in accordance with EN 61131-2
Ripple
< 1%
Input current at 24 V
130 mA
4.5. Ethernet
Ethernet port
2 x 100Base-Tx
Connection for Ethernet port
M12 socket, D-coded
Cable types in accordance with
IEEE 802.3
Shielded, twisted pair min. STP CAT 5/ STP CAT 5e
Data transmission rate
100 Mbps
Max. cable length
100 m
Flow control
Full duplex
