5 Integration

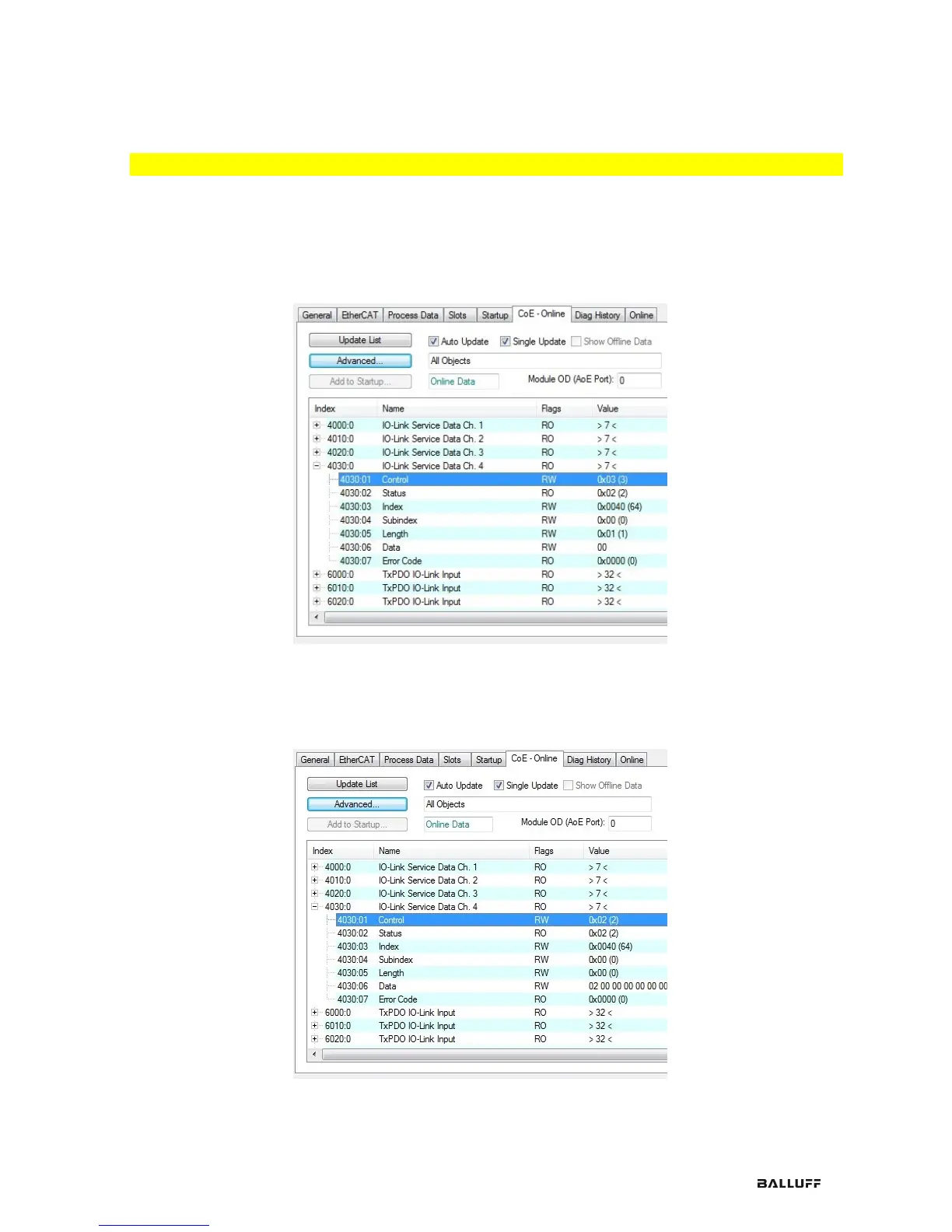

Example - Read
4. In Port select 4030:0 (here Channel 4)
5. First read the index, i.e. double-click 4030:03 and specify the
respective index - 0x0040 (64)
6. Now in Control write command 0x03
7. Then the contents of the index is read and displayed in Data.
Example - Write
8. To write, change the data, specify the length and use the command
0x02.
9. The data are written and the parameters changed in the device.
