Barco ClickShare CB Core Installation Manual

15R5917517 /00 ClickShare CB Core, CB Pro
10
11

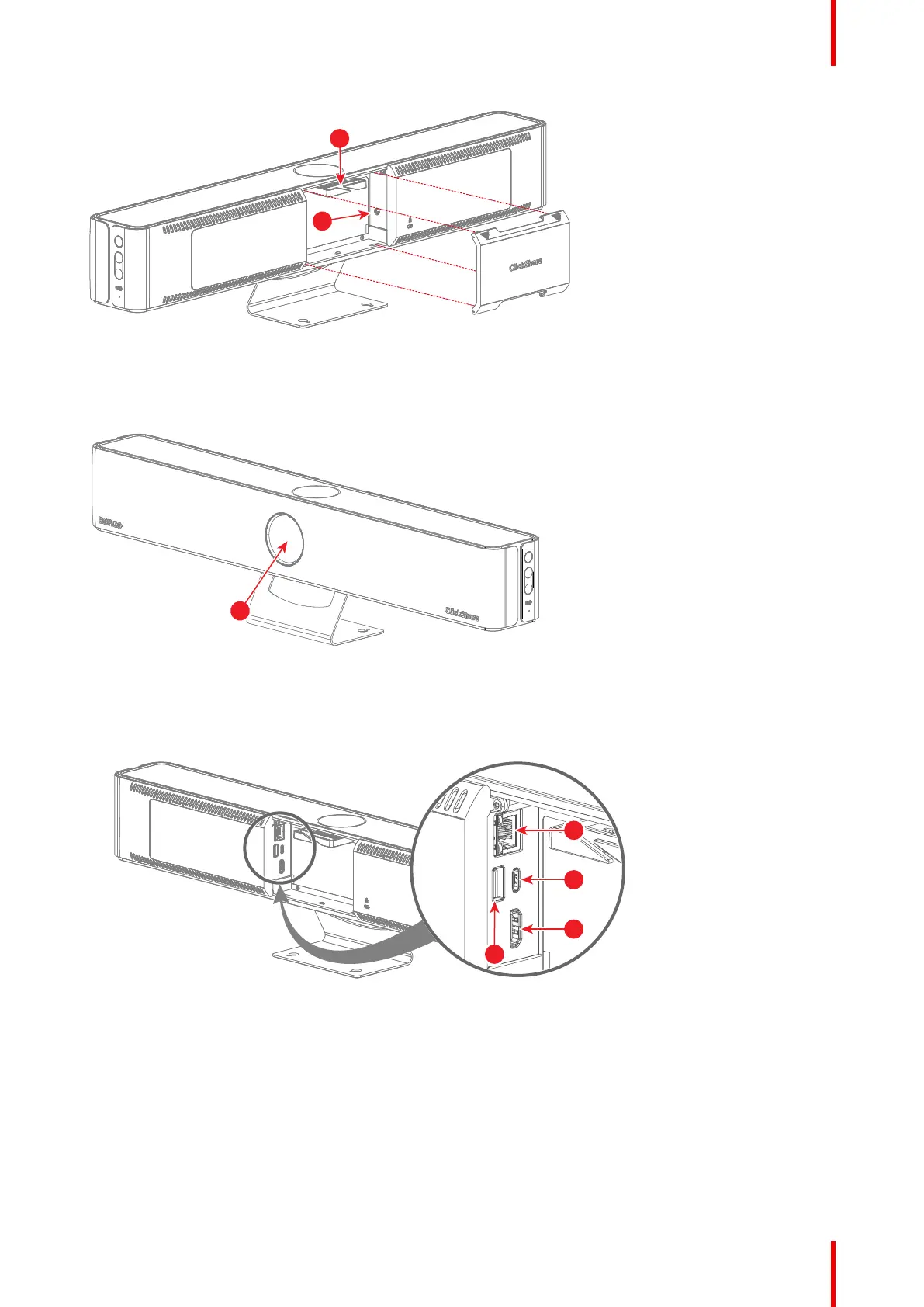

Image 2–3 Back view with cable cover removed
10 Cable binder
11 Power connection
Removing the lens cover reveals the camera lens.
12
Image 2–4 Front view with lens cover removed
12 Camera lens
There is a difference in which ports are available based on the model:
• CB Core’s ports:
1
2
3
4
Image 2–5 CB Core without a cable cover
1 LAN port
2 USB-C port (also for displays)
3 HDMI out port
4 USB-A port
• CB Pro’s ports:
CB Core, CB Pro introduction

Barco ClickShare CB Core Specifications
