Barco ClickShare CB Core Installation Manual

R5917517 /00 ClickShare CB Core, CB Pro16
1
2
3
4
5

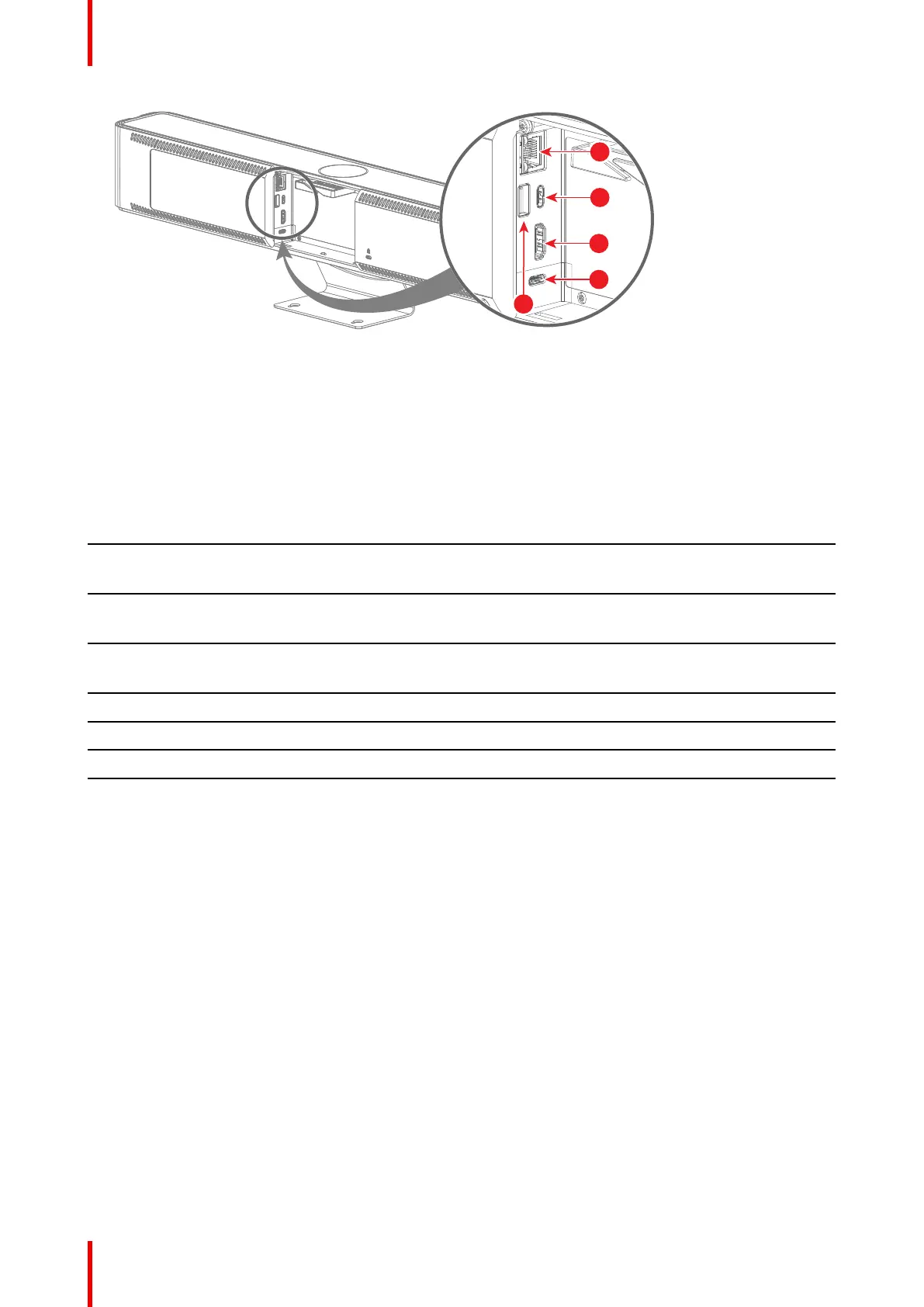

Image 2–6 CB Pro without a cable cover
1 LAN port
2 USB-C port (also for displays)
3 HDMI out port
4 USB-C port
5 USB-A port (also for for touch functionality)
Collaboration bar LED ring
There is an LED ring around the camera module that makes it easy to tell at a glance what the current status
of the ClickShare and its peripherals are.
See below table to know what each color or animation stands for:
LED status
Meaning
Breathing white Booting
Standby
Red - purple spinning animation Starting to share
Updating firmware
Steady white Sharing
Device powered on
Purple Peripherals are being used
Red Microphone muted
Blinking green Pairing in progress
Blinking red Error
CB Core, CB Pro introduction
