15. Removal and installation of the projector covers
15.3 Removal of the top cover
WARNING: Switch off the projector prior to start with this procedure, unless otherwise specified in the pro -
cedure.
To remove the top cover from the projector the Com mu nicator Touch Pan el has to b e removed firstifinstalled
onto the top of the projector. This proce dure assu mes that the Communicator Touch Panel is not in stalled
onto the to p of the p r ojector.
Necessary tools
7mm fl at screwdriver.
How to remove the top cover?
1. L oosen the four captive s crews (reference 1 image 15-3) of the top cover using a 7mm flat s cre wdriver.
2. R emov e t he top cover from the projector.
1

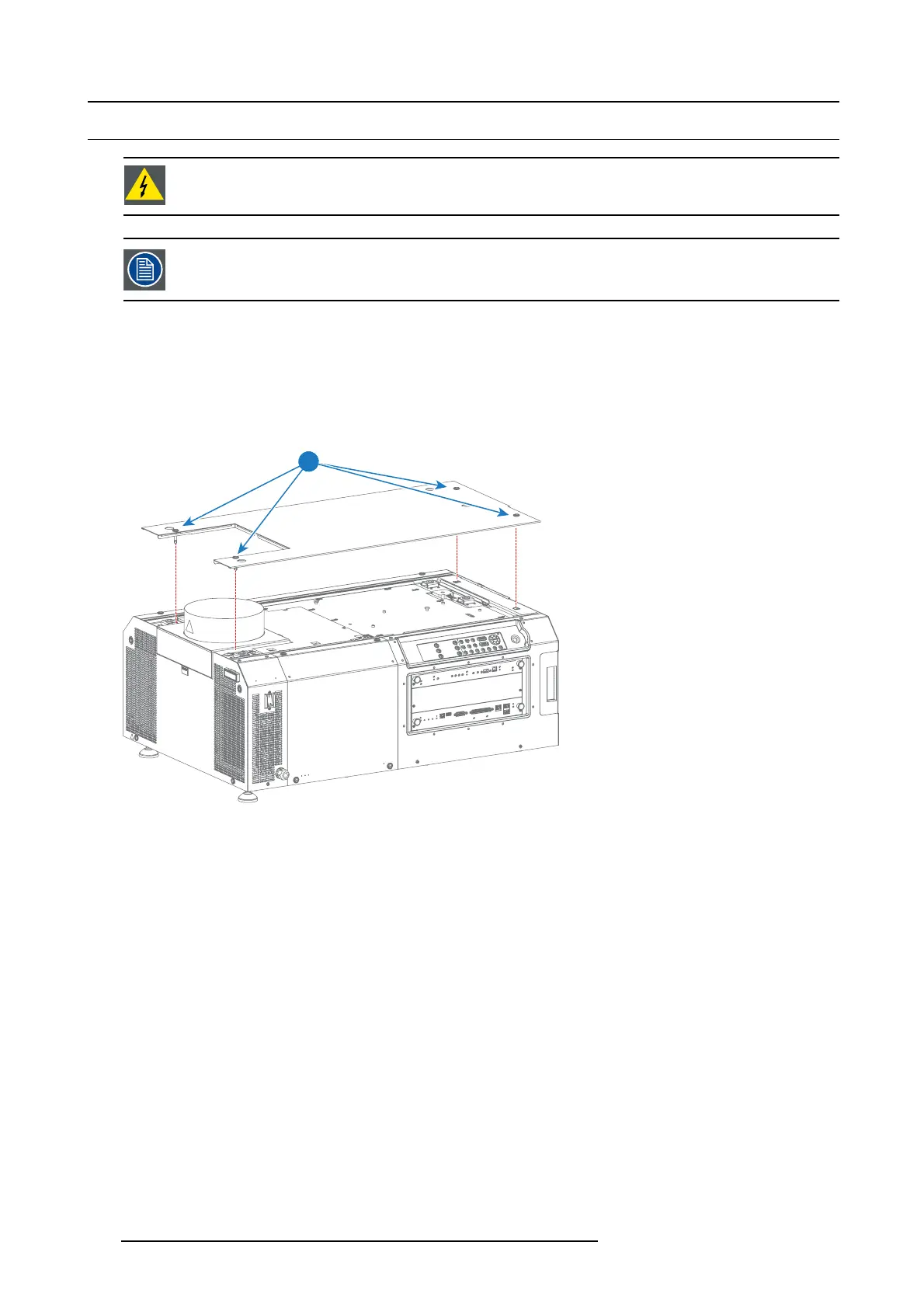

Image 15-3
120 R5977692 DP2K-S SERIES 10/12/2012
