12. Lamp House & Lamp replacement

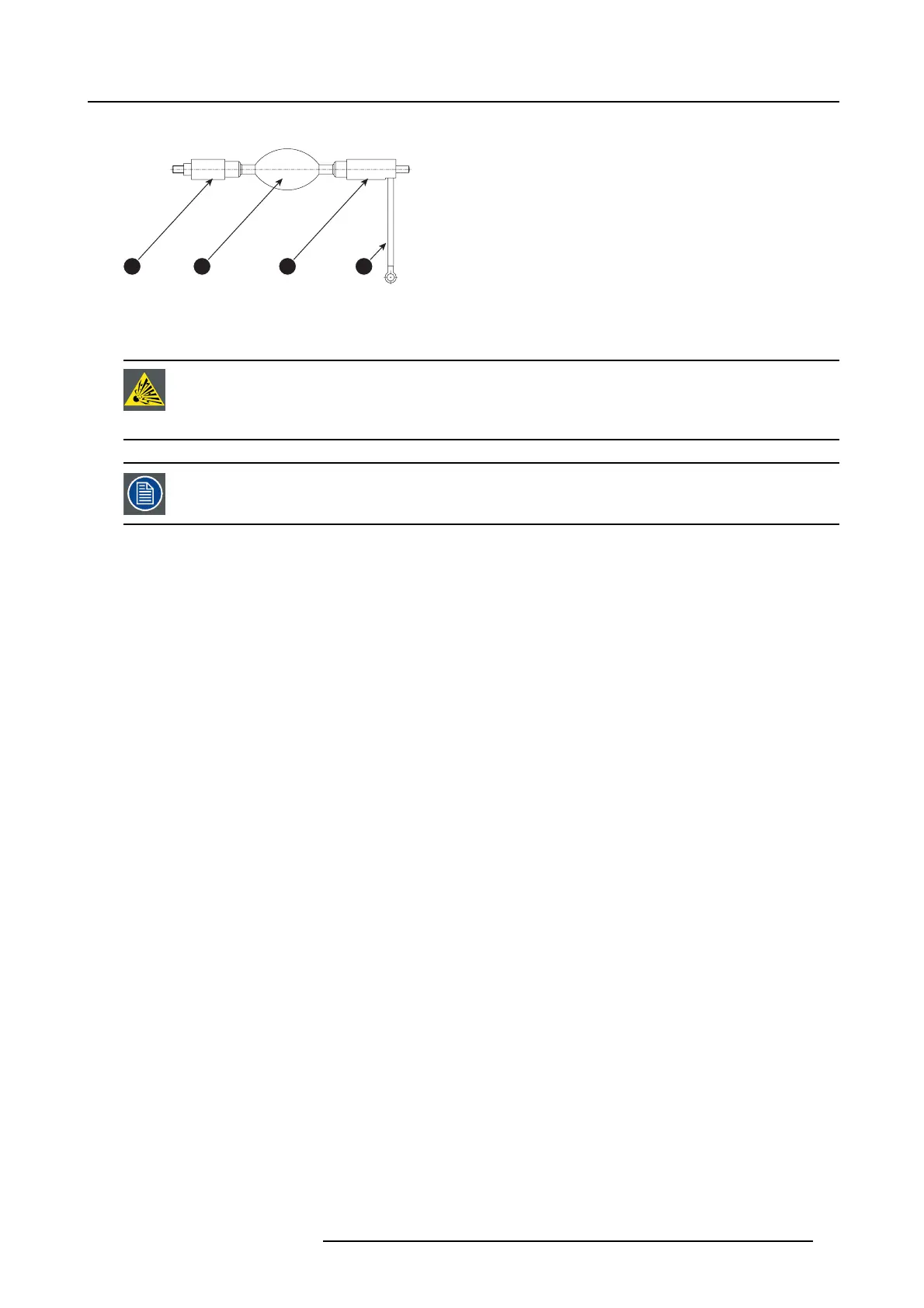

Parts identification xenon lamp
1 2 3 4
Image 12-3
1 Cathode of the xenon lamp.
2 Envelope (bulb) of the xenon lamp.
3 Anode of the xenon lamp.
4 Anode wire of the xenon lamp.
CAUTION: Exp ired xenon lamps.
Dispose of expired b ulbs that are beyond warran ty in the following manne r: w rap the bulb tightly in several
layers o f canvas or heavy cloth. Place it on hard surface and shatter the envelope with a sharp hamm er blow.
DO NOT place a non shattered bulb in any ordinary refuse container.
When returning a xenon lamp for warranty adjustment, pack it in its original shipping container. Complete
and return all required warranty information.
