5. Installation

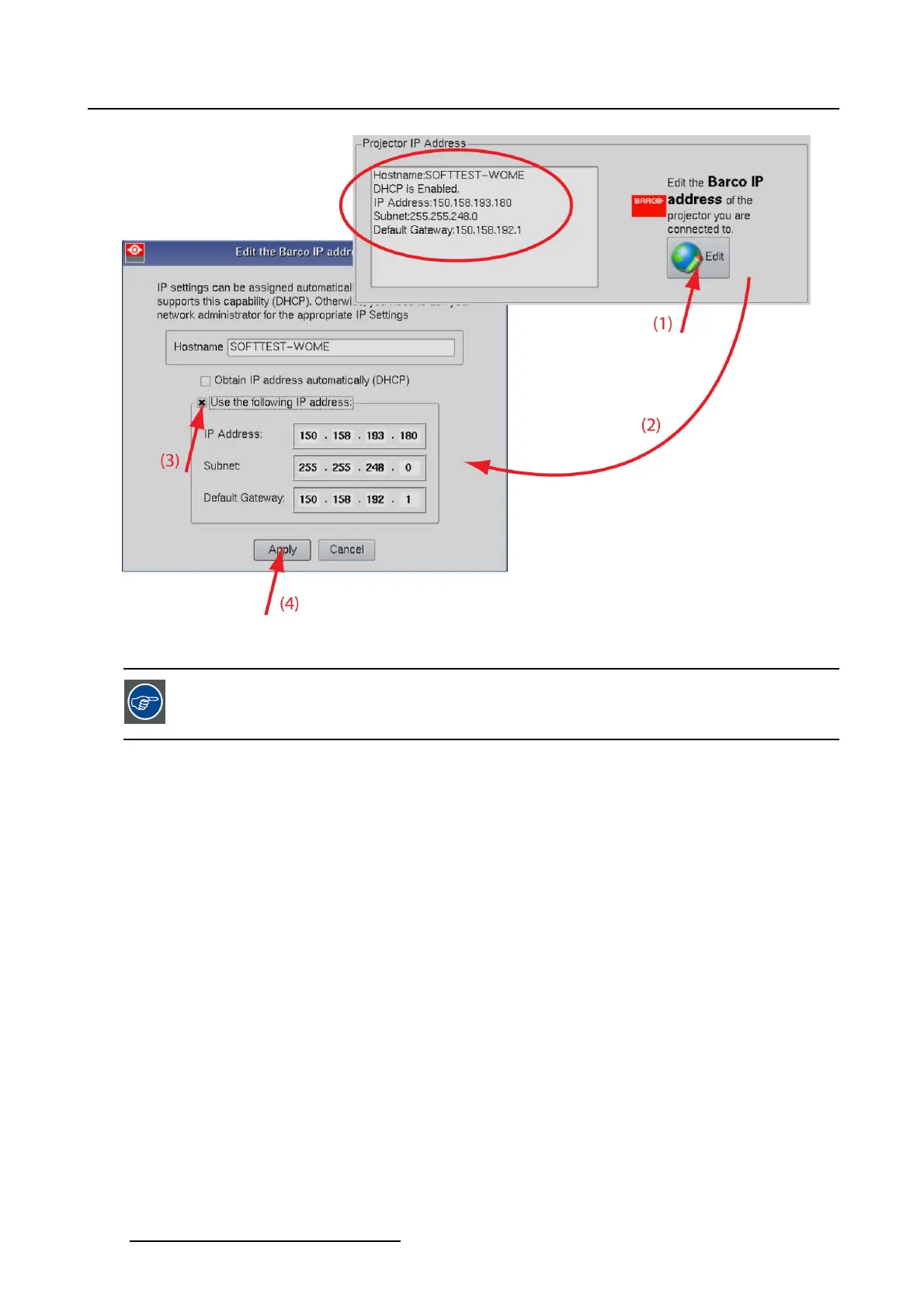

Image 5-3

Projector IP address, manually assign

The Touch panel’s IP Address MUST be within the same subnet as the projector’s IP

Address in order for communication to be possible. This requires checking the Touch

panel’s and projector’s Subnet-Mask settings

IP address examples

First example

• Touch panel IP Address : 192.168.100.5

• Touch panel Subnet Mask : 255.255.255.0

• Projector IP Address : 192.168.100.2

• Projector Subnet Mask: 255.255.255.0

Result : Communication possible. Touch panel address is in the subnet range of the projector’s IP ad-

dress.

Second example

• Touch panel IP Address : 10.16.236.100

• Touch panel Subnet Mask : 255.255.255.0

• Projector IP Address : 192.168.100.2

• Projector Subnet Mask: 255.255.255.0

Result : No communication possible. Touch panel address is not in the subnet range of the projector’s IP

address.
