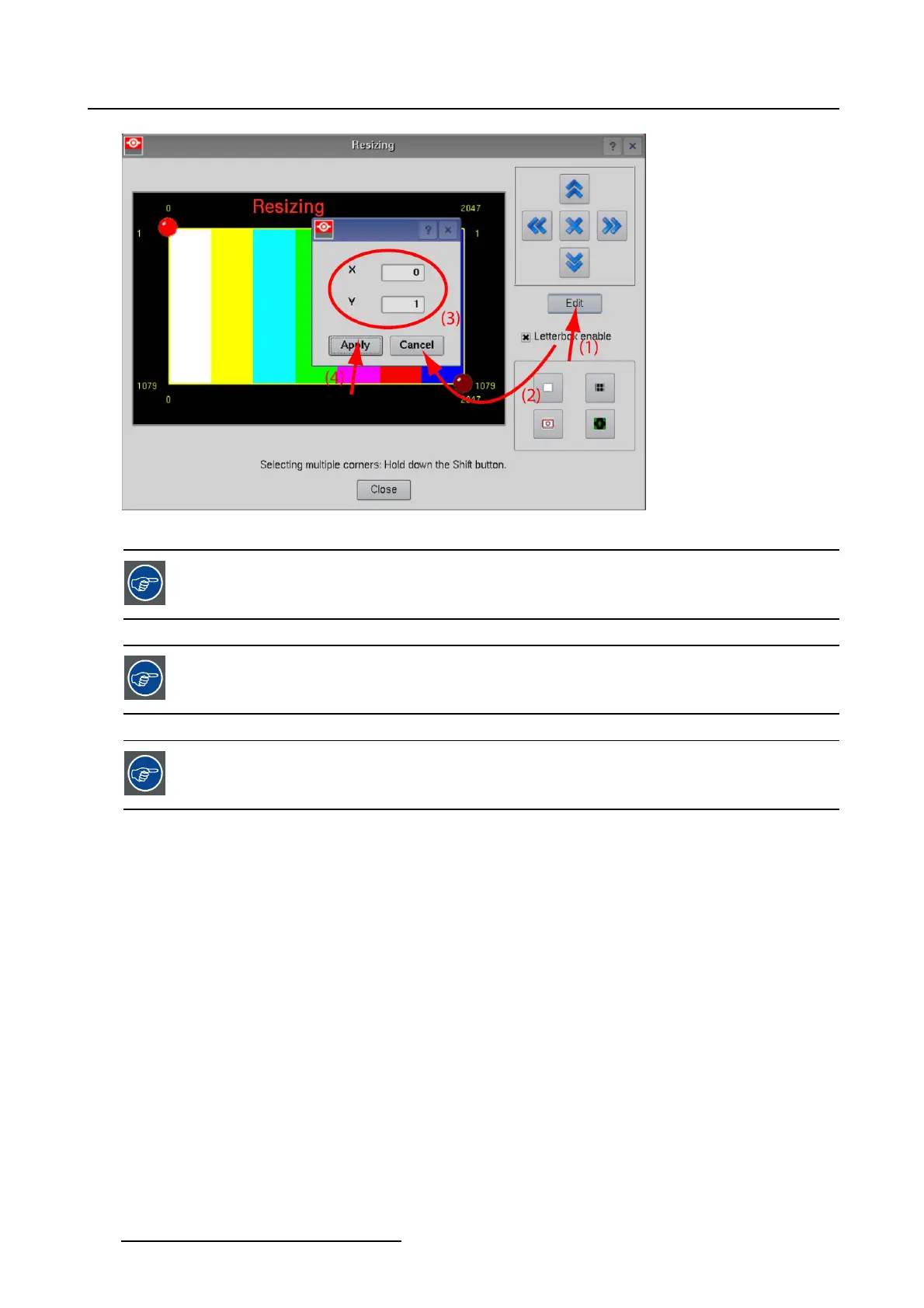

When leaving the Resize window without switching off the test pattern, this pattern will
still be available for masking.
As the resizing is best done on a test pattern, when finished, switch back to the normal
image to check the resizing settings.
After resizing set the anamorphic lens facto
r back to its original value.
3.6.2.4 Letterbox function
Function
The letterbox function determines how the image will be displayed.
If Letterbox enabled is checked, the system will show all of the original image data on the screen. This
may require that the system letterbox the image, either on the top and bottom, or left and right side.
If Letterbox enabled is not checked, the system will fill all the screen with image data. This may require
that the system discard image data, either from the top and bottom, or the left and right side.
The following two examples show what will be displayed based on the state of the letterbox function.
Letterbox enabled.
