Barco DP4K Series User Manual

3. Configuration

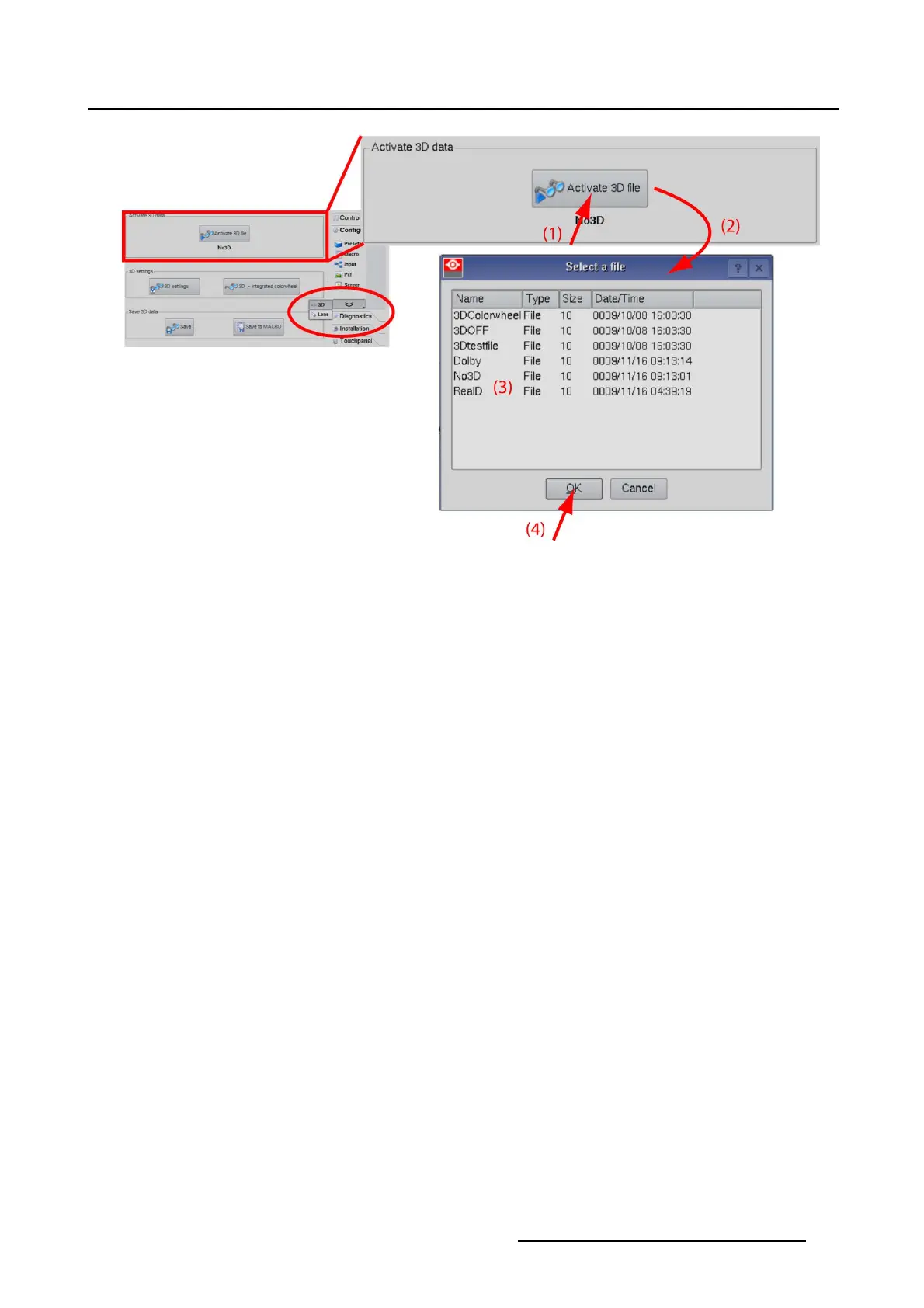

Image 3-37
Activate 3D file
3.7.2 3D settings
Overview
• About 3D projection
• Start up the 3D settings
• Frame rate multiplication
• 3D Test pattern
•3DControls
3.7.2.1 About 3D projection
Summary
Typical scenario for 3D projection:
The left eye image data comes in over a HDSDI 24 p signal on port A on the projector.
The right eye image data comes in over a HDSDI 24p signal on port B of the projector.
On the interface board both signals are combined to a 48 Hz signal. Left and right frames are combined.
The signals are further up scaled to 96 Hz at the level of the Modular Formatter and DMD
The48Hzsignalscanbeoutputtedtoanexte
rnal polarizer system, or active polarity glasses. They can
be outputted through the GPO connection.
For 3D projection, with Dual link HDSDI input where the input A represents the left eye stream, and input
B represents the right eye stream, the following settings should be enabled.
R59770488 COMMUNICATOR TOUCH PANEL 06/06/2012
67
