4. Lamp & Lamp House
A realignment of the xenon lamp in its reflector is requ ired af ter the installation o f the xenon lamp in the Lamp
House.
4.6 Installation of the Lamp House
WARNING: This procedure may only be performed by qualified technical service p ersonnel.
CAUTION: Due to its high internal pressure, the lam p may explode in e ither hot or cold states if improperly
handled.
Necessary tools
10mm nut driver or flat screw driver.
How to install the Lamp House in the projector?

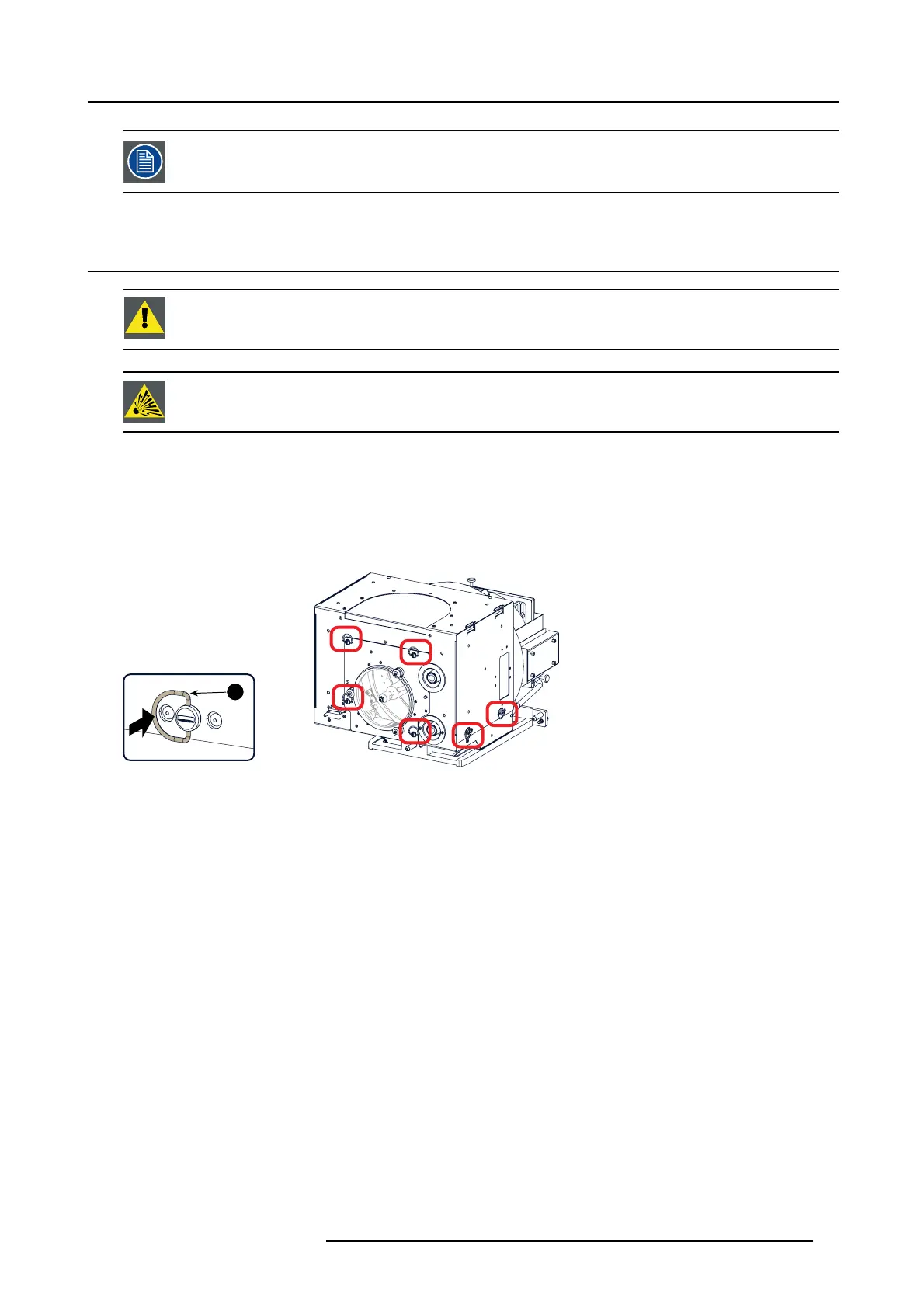

1. C heck if the s ix qu arter turn screws turning wires (reference 1image 4-24) are flush with the cover or interference will occur w hile
inserting the Lamp House into the projector.
1
Image 4-24
2. Gr ip the Lamp House by both handles and place the front of the Lamp House on the base plate inside the lamp compartment of
theprojector,liningupthefootoftheLampHousewiththeslotsonthebase.
3. Push the Lamp House fully into the slots.
4. Secur e the Lamp House by fastening the two retaining screws (reference 1 image 4-25) at the bas e o f the Lamp House.
5. R einstall the cover of the Lam p House compartment.
