5. Lenses & lens holder

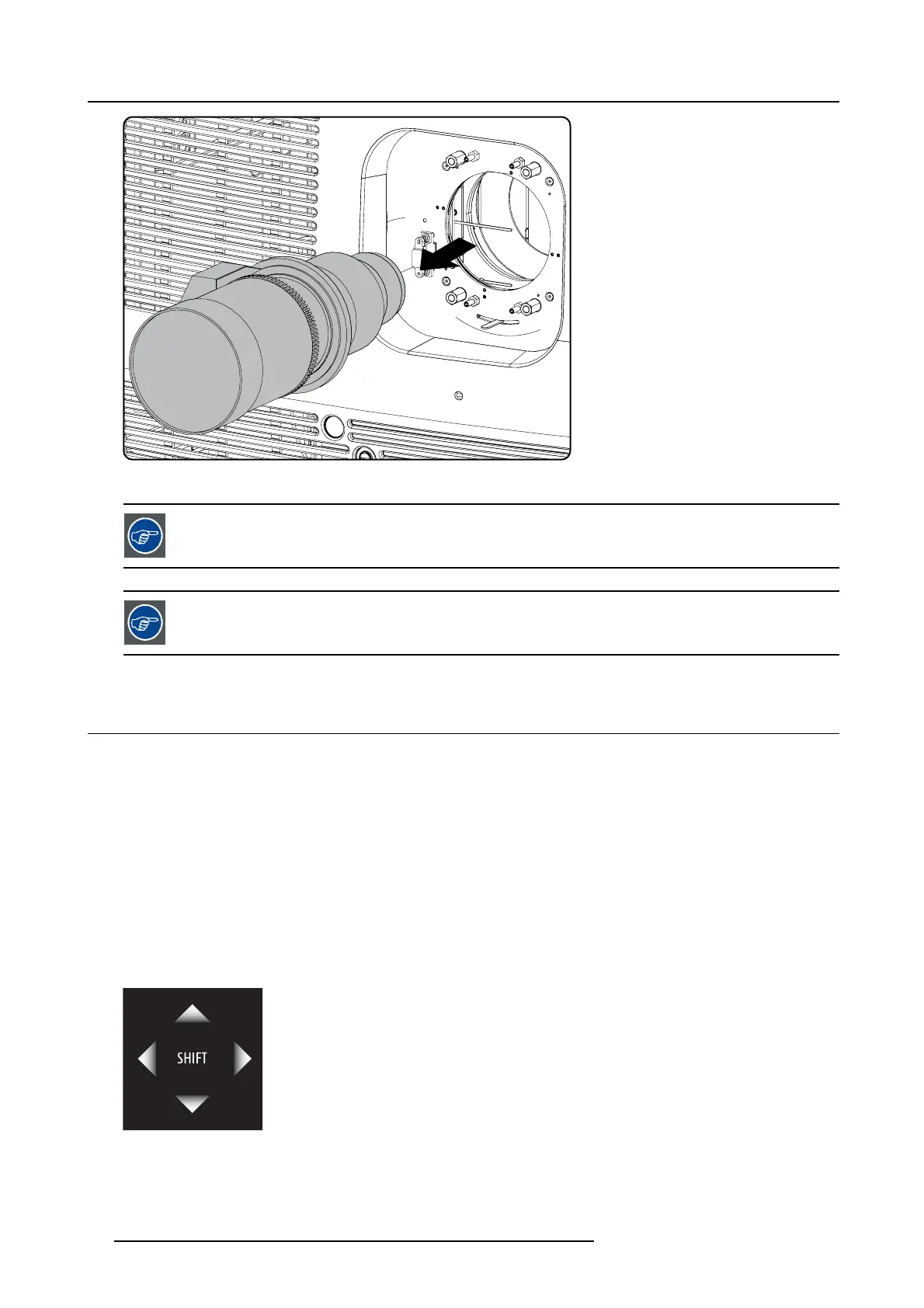

Image 5-17
Remove lens
It’s recomme nded to place the Lens caps of the original Lens packaging, back on both sides of the remo ved
Lens to protect the optics of the Lens.
It’s recommended to place the foam rubber of the original pr
ojector packaging, back in the Lens opening to
prevent intrusion of dust. Note that this foam rubber is packed in a plastic bag to prevent the dust, emitted by
the foam, from ente r i ng the projector.
5.5 Lens shift, zoom & focus
Motorized lens adjustment
The B-se ries p rojector is equipped with a motorized lens shift f unctionality and a m oto rized zoom & focus functionality.
Maximum shift range
The lens can be shifted with respect to the DM D wh ich result in a shifted image on the screen ( Off-Axis). A 100% s hift means that
the centre point of the projected image is shifted by half the s creen size. In other words, the centre point of the projected image falls
together with the outline of the image in an On- Axis projection. Due to mechanical an optical limitations the shift range is limited as
well.
All DP 2K lenses ha ve a shift range of 50% u
p/down and 30% left/right. T his range is valid for all throw ratios.
How to shift the lens of the B-series pro
jector?
1. U se the up and down arrow k eys on the local keypad to shift the lens vertically and use the left and right arrow keys on the
local ke ypad to shift the lens horizontally.
Image 5-18
How to zoom in or out?
1. Is the zoom lens equipped with a m otorized zoom?
If yes, use the “+” and “-” z oom keys on the local k eypad to zoom in or out.
50
R5905067 DPXK-19B/23B/P 17/09/2012
