6. Input & communication
6.2 Local keypad of the DPxK B-series projector
Identification of the keys
1
2
3
4
5
6
2
1
3
4
5
6
7
8

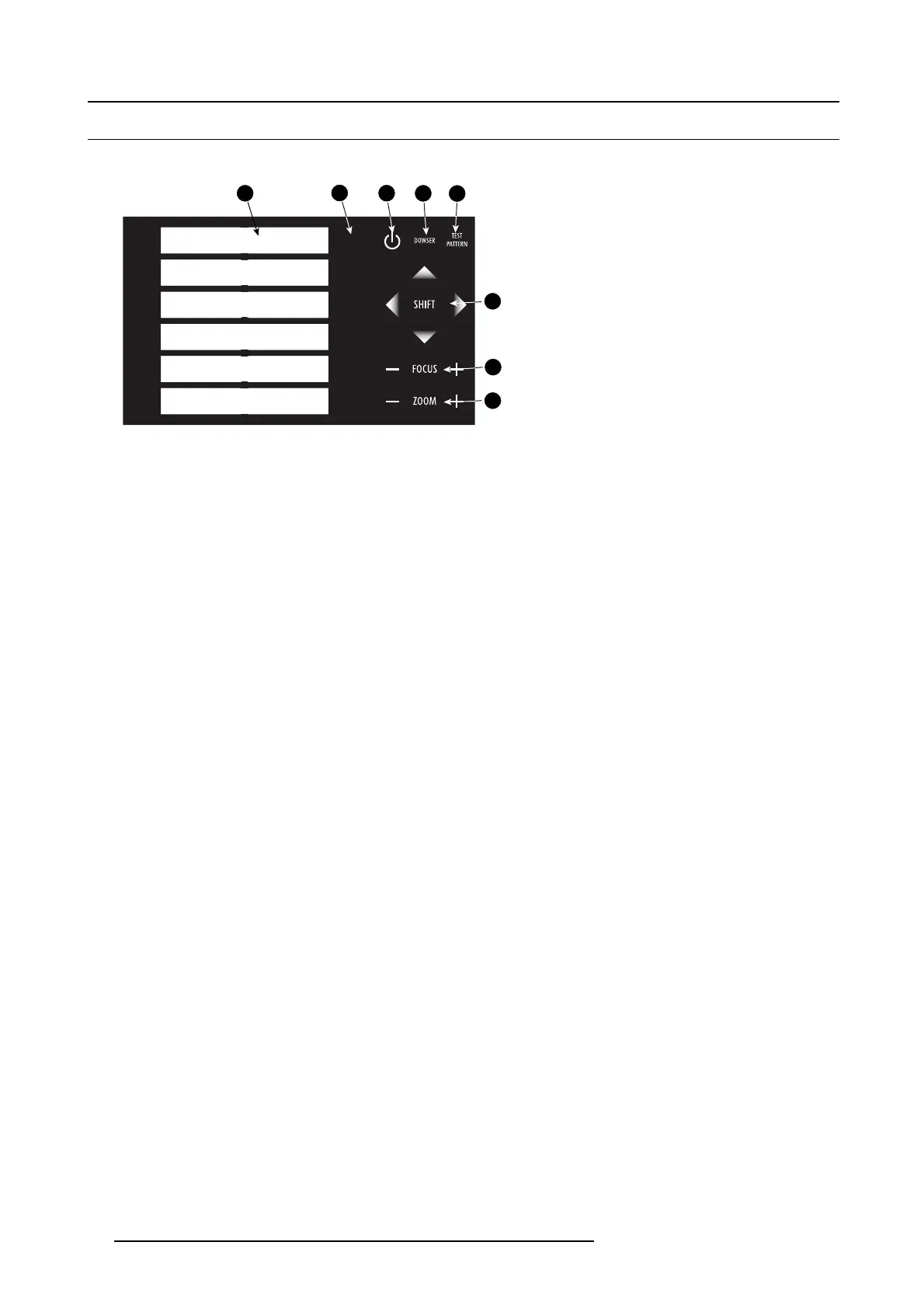

Image 6-2
Local keypad
1 Marker area for macro name
2 Numeric keyboard
3 Standby key
4 Dowser open/close switch
5
Test pattern toggle switch
6 Lens shift up/down, left/right
7
Lens focus
8 Lens zoom
Numeric keys
All the numeric k eys (2) of the local k eypad have a blue backlight during normal operation. W hen the authorization process is
activated with the security key, the backlight co lor of the num eric keys 1 to 6 changes to orange. Each key c an be linked to a macro
which allows you to setup the projector to your requirements with one pus h of a button. Note that each numeric key has a marker
area (1) where you can write down the nam e of the m acro.
Standby key
Standby key (3) switches ON or OFF the lamp and lamp electronics. T he lamp c ooling fans remain active for about 5 m inutes. The
speed of the other fans is reduced. The backlight color of the standby key remains red in standby mode and changes to green in
operation m ode.
Dowser key
The dowser key (4) opens or closes the dows er. The backlight color of the d owser key is green when the dowser is open and red
when the dows er is closed.
Test pattern key
The test pattern key (5) gives you direct access to the internal test patterns of the projector.
Shift keys
The shift keys ( 6) allow y ou to shift the lens up/down or left/right.
Focus keys
The focus keys (7) allow you t
o focus the projected imag e on the screen.
Zoom keys
The zoom key s (8) allow you to zoom in or ou t the pro jected image on the screen.
58
R5905067 DPXK-19B/23B/P 17/09/2012
