10. Removal and installation of the projector covers

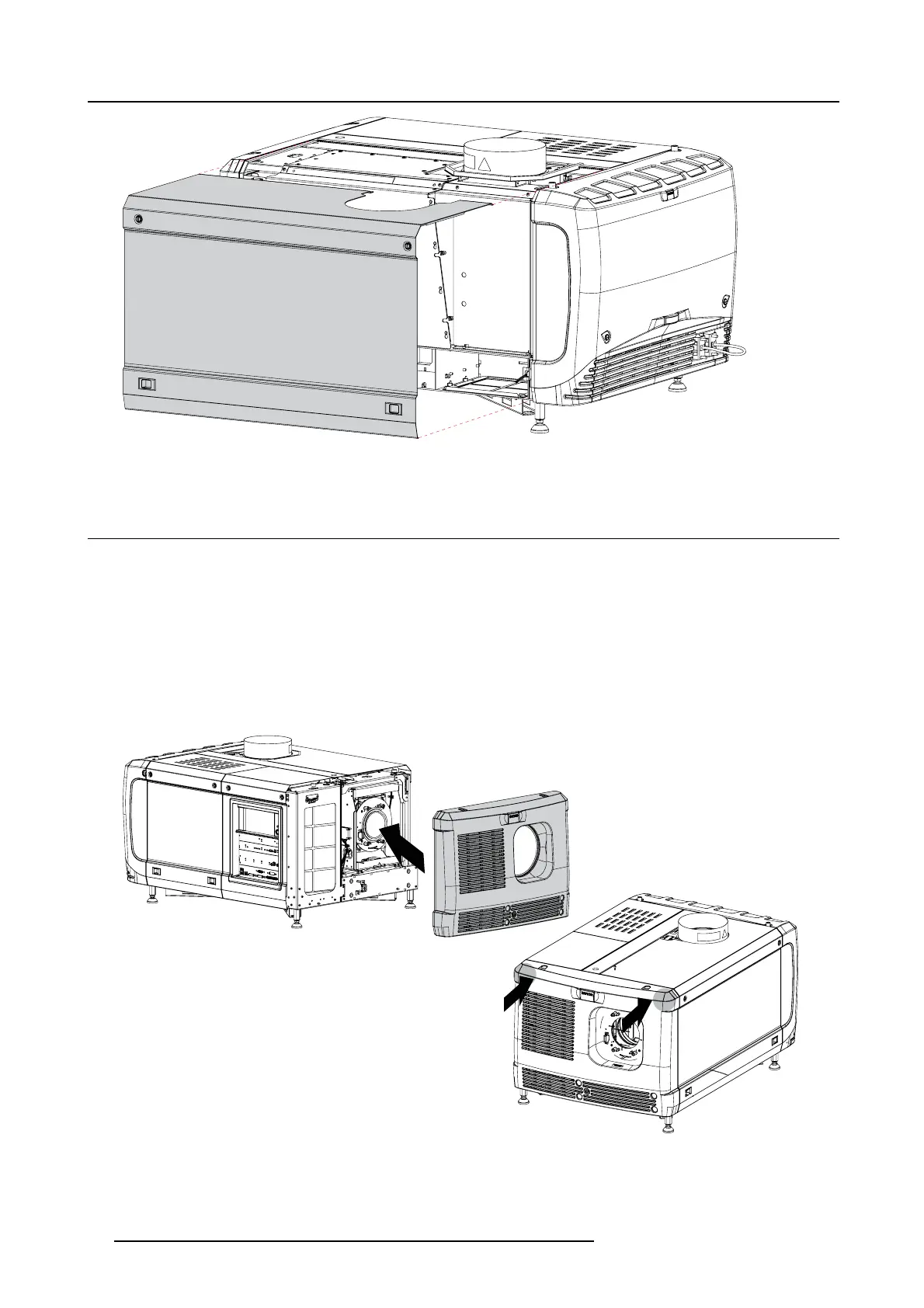

Image 10-12
Side co ver
10.6 Installation of the front cover
Necessary tools
Flat screwdriver
How to install
1. Ensur e that no lens is m ounted.
2. Exec ute the next steps to install the front cover:
a) Ho ok the bottom side of the cover to the projector.
b) G ently push the top side of the cover into position.
c) Ensure that the locking s tuds click into their receivers.
Image 10-13
Mount front cover
3. Secur e the front cover by locking the captive screw in the middle at the bottom of the f ront cover.
88
