Barco SP4K-B - Removal of the Operator Side Cover

131R5912128 /03 SP4K-B
12.4 Removal of the operator side cover
Required tools
Torx screwdriver T20
How to remove
1. Remove the front cover of the projector.
2. Remove the mains side cover. For more info, see “Removal of the mains side cover”, page 130

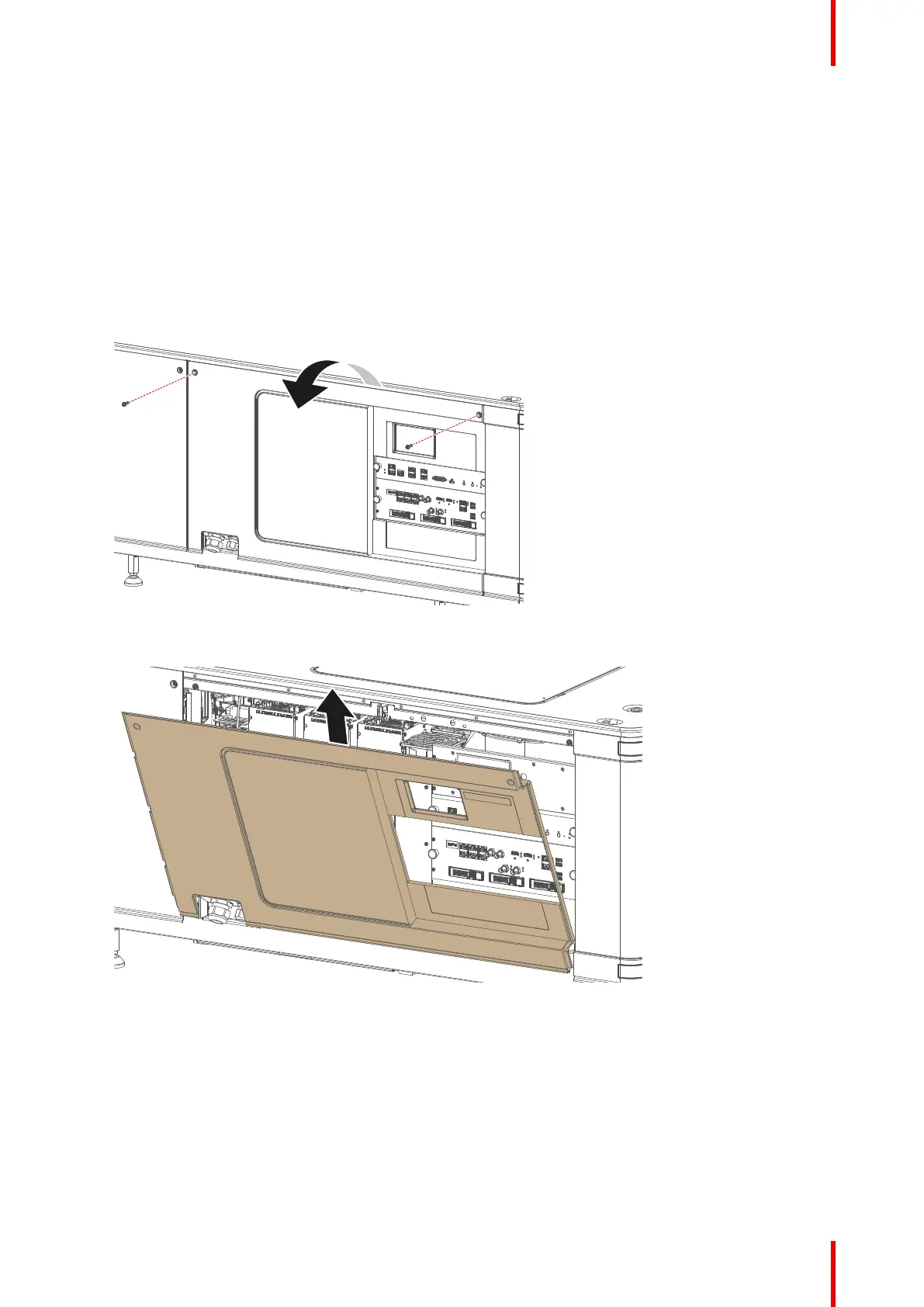

3. Remove the two screws at the top of the side cover. Use a T20 Torx screwdriver.
Image 12–4 Removing the screws of the right side cover
4. Tilt the upper side of the cover outwards and remove it.
Image 12–5 Removing the side cover
Projector Covers
