Barco SP4K-B - Mounting the Mains Side Cover

141R5912128 /03 SP4K-B
12.13 Mounting the mains side cover
Required tools
Torx screwdriver T20
How to mount
1. Make sure the light source side cover is mounted.
2. Place and slide down the mains side cover.

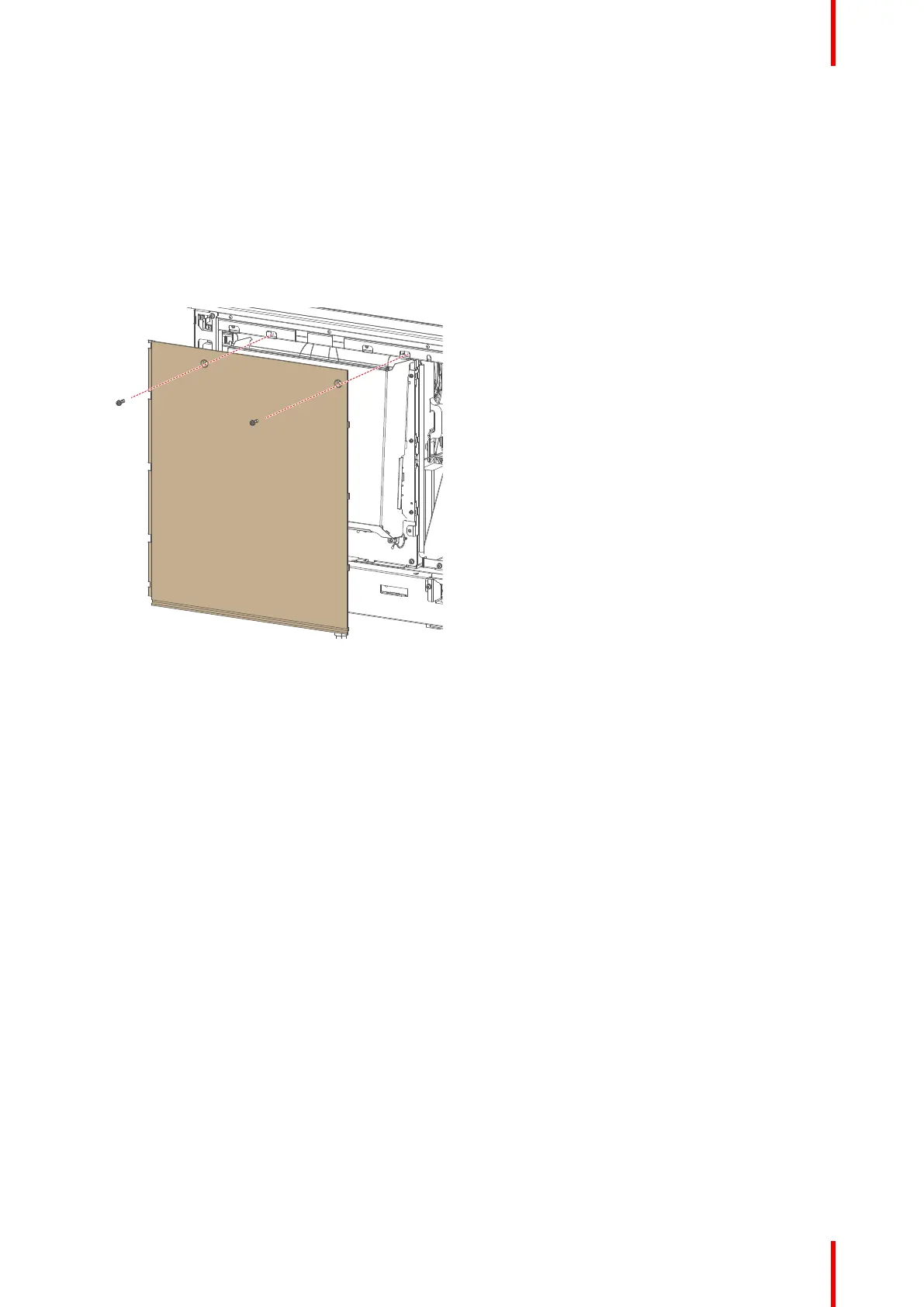

Image 12–18 Removal of the mains side cover
3. Fasten the side cover using the two screws of the mains side cover. Use a T20 Torx screwdriver.
Projector Covers
