135R5912128 /03 SP4K-B
12.8 Removal of the top cover
Required tools
Torx screwdriver T20
How to remove
1. Remove the four screws of the top cover. Use a T20 Torx screwdriver.
2. Carefully lift the top cover up and remove it.
Note: There are several clips on the side bars of the projector in which the top cover is clicked
in. Push the cover out of the clips to fully remove the top cover.

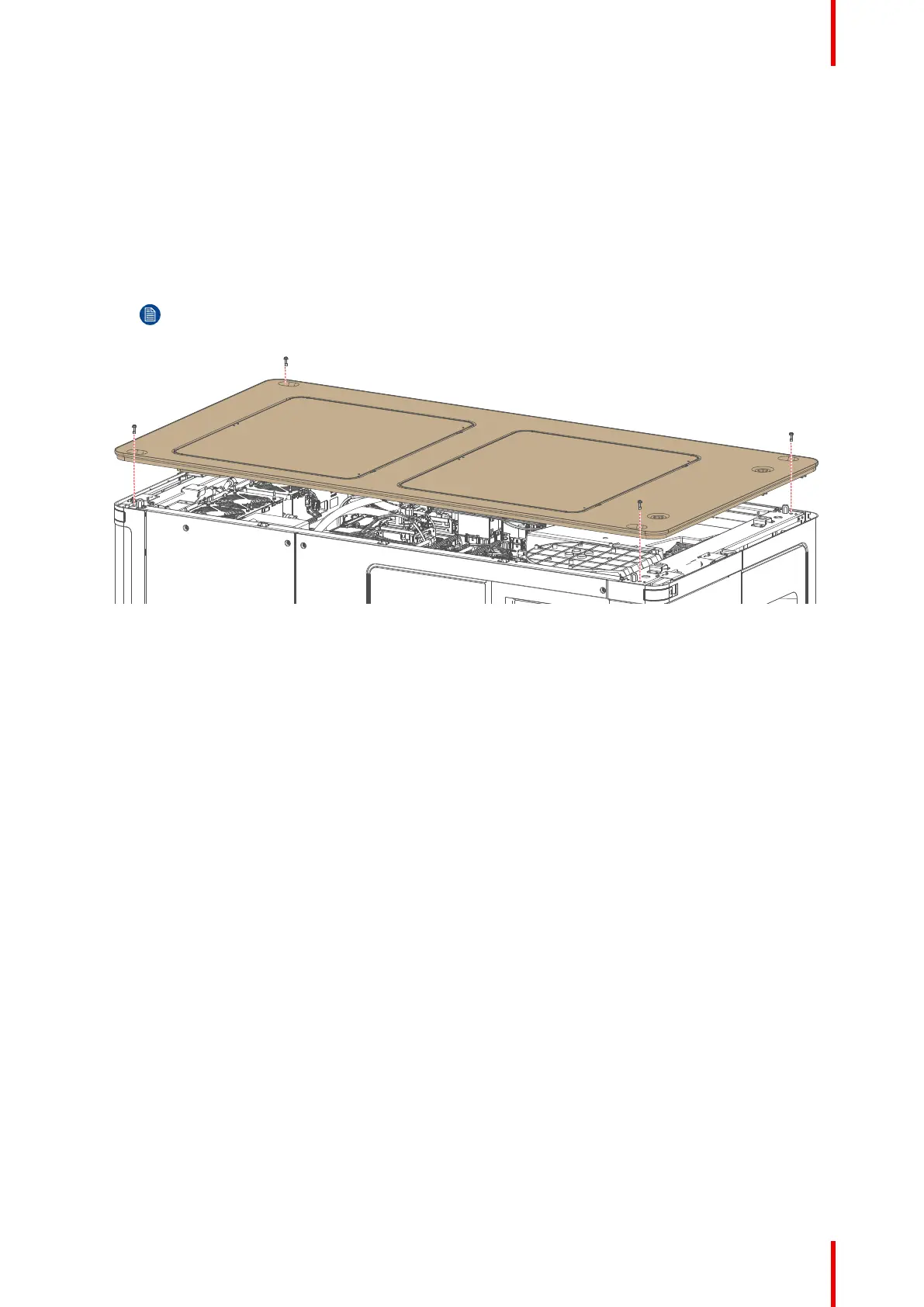

Image 12–10 Removing the top cover
