Barco SP4K-B - Removal of the Light Source Side Cover

133R5912128 /03 SP4K-B
12.6 Removal of the light source side cover
Required tools
Torx screwdriver T20
How to remove
1. Remove the two screws at the top of the side cover. Use a T20 Torx screwdriver.

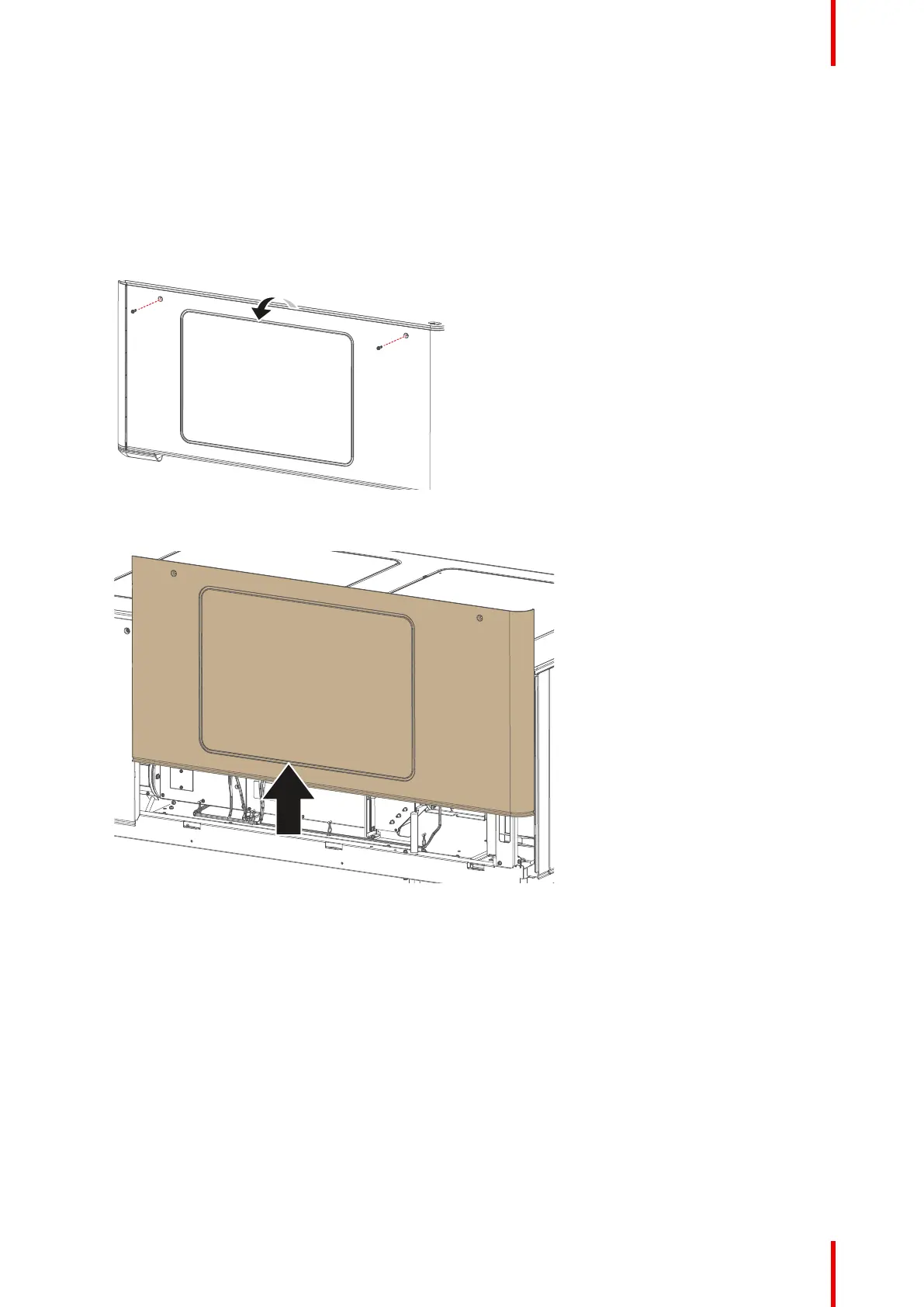

Image 12–7 Removing the screws of the side cover
2. Tilt the upper side of the cover outwards and remove it.
Image 12–8 Removing the side cover
3. Lift up the side cover and remove it.
Projector Covers
