Barco SP4K-B - Mounting the Sealed Compartment Side Cover

R5912128 /03 SP4K-B138
12.11 Mounting the sealed compartment side cover
Required tools
Torx screwdriver T20
How to mount
1. Mount the light source side cover “Mounting the light source side cover”, page 137.
2. Place and slide down the sealed compartment side cover.

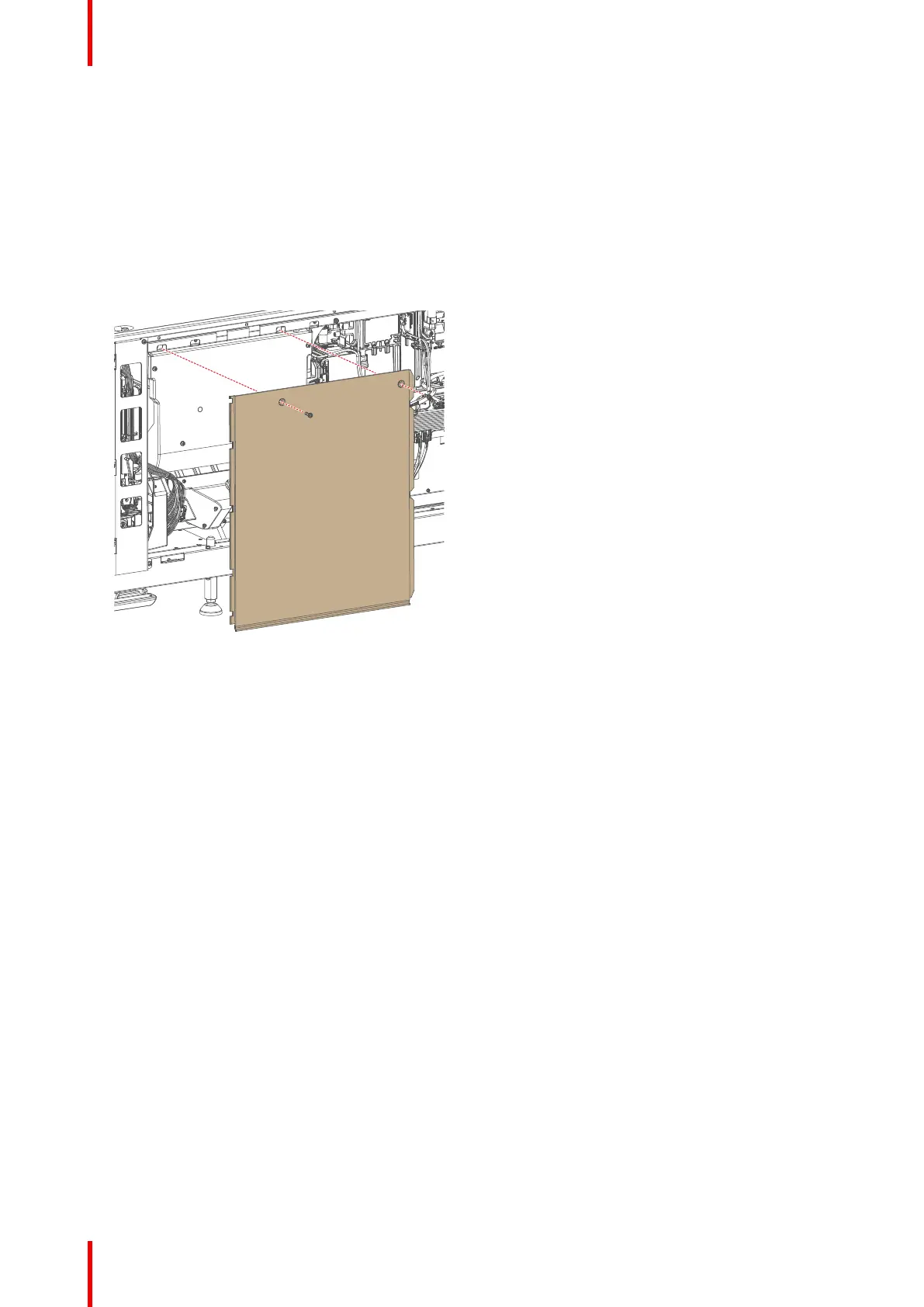

Image 12–14 Removal of the mains side cover
3. Fasten the side cover using the two screws of the mains side cover. Use a T20 Torx screwdriver.
