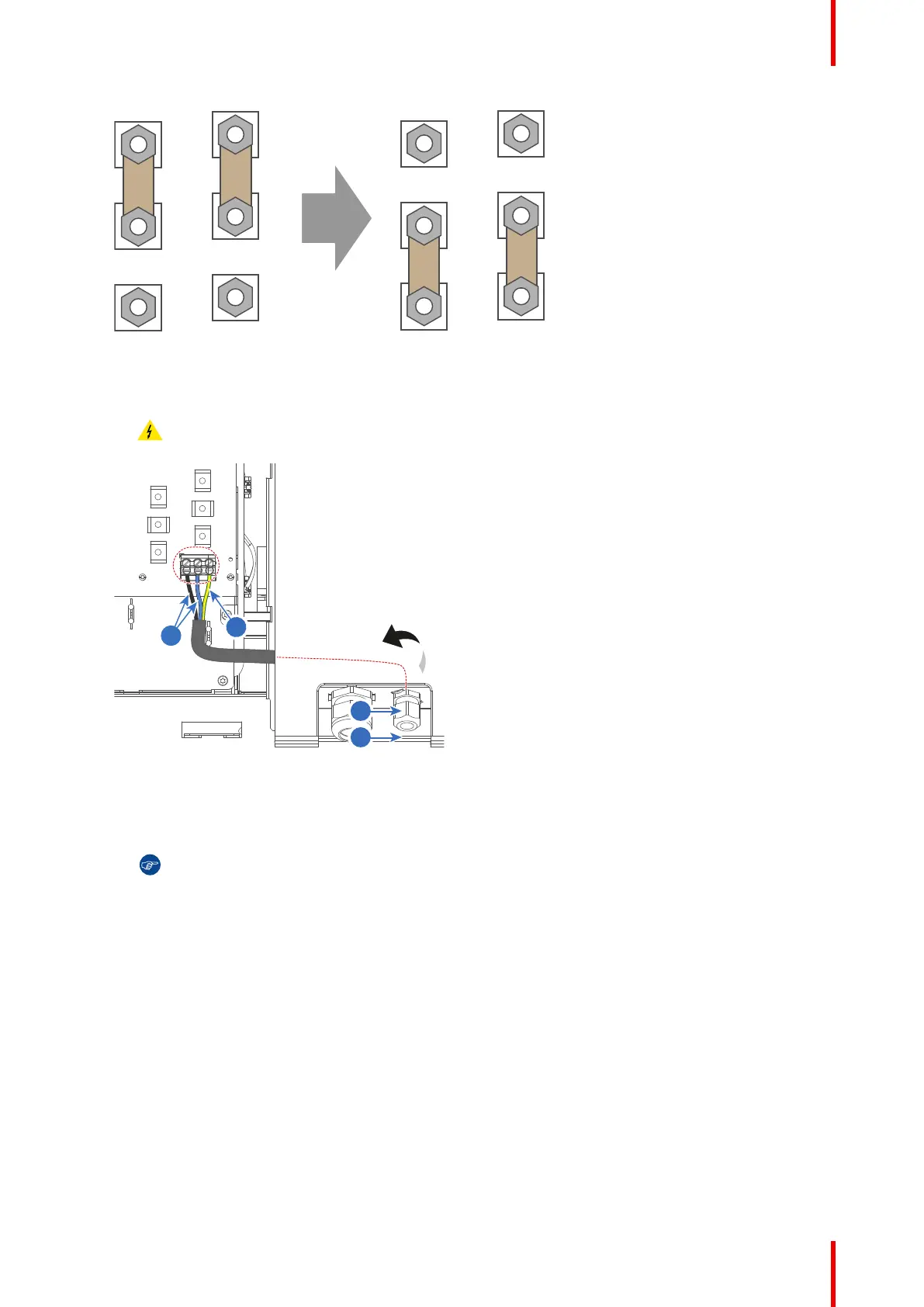

4. Guide the AC power cord (reference 2) through the cable gland (reference 3). Connect the wires
(references 4 and 5) to the 3-terminal strip as illustrated. Use a torque screwdriver to fasten the screws of
the 3-terminal strip with a torque of 0.75 Nm.
Warning: Always connect the PE wire (reference 4) first, then the other wires.
Image 4–14
2 UPS Power cord
3 Cable gland
4 Protected Earth (PE) wire
5 Power wires L and N
Tip: Check for good fixation by pulling on each wire.
5. Secure the AC power cord by fastening the cable gland (reference 3). Use a 24 mm open-end wrench.
6. Place the net input cover back and seal it. Tighten the two screws (reference 1), using a T20 Torx
screwdriver.
