Site~Rite
®
8 Ultrasound System Page 12

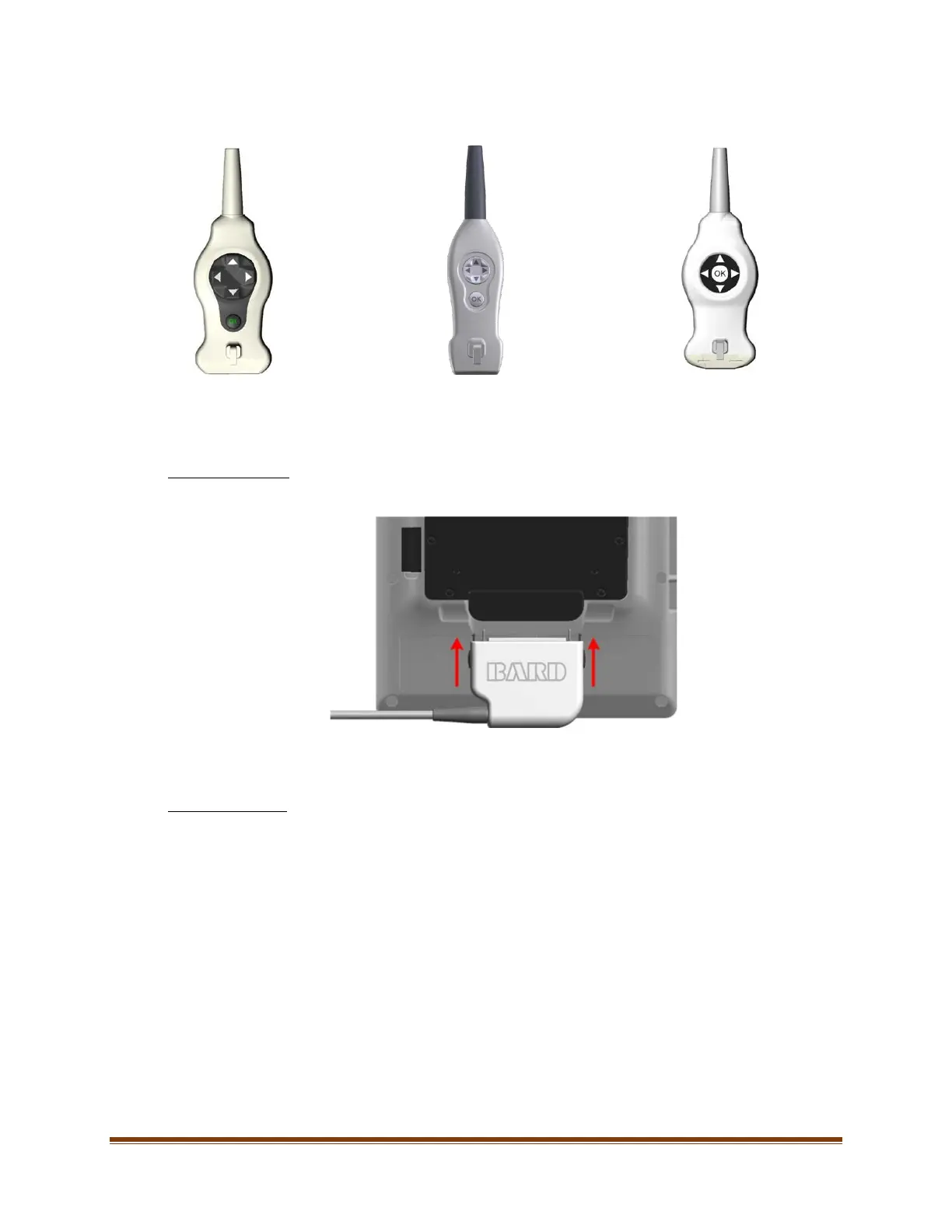

3.2. Compatible Probes
Linear 32mm Probe
Linear 20mm Cue™ Needle Tracking
System Probe
Linear 20mm Pinpoint™ GT Needle
Technology Probe
3.3. Connecting the Ultrasound Probe (if applicable)
To connect the probe:
1. Align the probe connector and gently insert the probe into the console.
Note: If the EC204 error appears, connect/reconnect the probe and restart the system.
Caution: Do not force the probe connector; damage to the connector and system could result.
To remove the probe:
1. Press the two latches on the probe connector.
2. Gently pull on the connector to disconnect the probe.
