9.4. Cue™ Needle Tracking System Overlay
9.4.1. Out-of-Plane Insertion

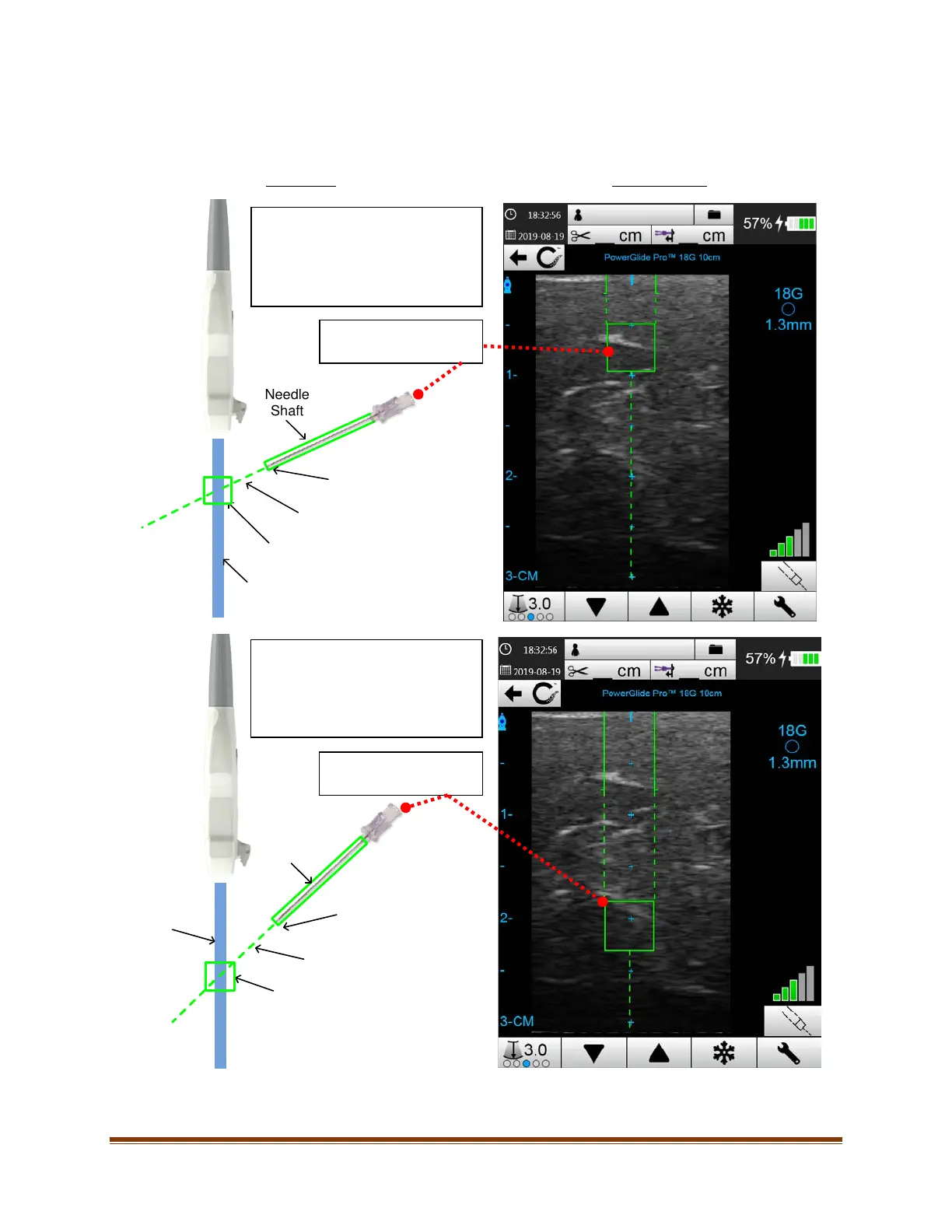

Actual View On-Screen View
Needle
Shaft
Needle Tip
Ultrasound Beam
Needle Trajectory
Intersection Window
Ultrasound
Beam
Needle
Shaft
Needle Trajectory
Intersection Window
Needle Tip
When the needle overlay advances through the Intersection Window, the needle flash will appear within the
Intersection Window.
Note: Adjusting the angle of the
needle up or down or changing the
distance between the needle and
probe will change the position of the
Intersection Window.
A flat angle is required
for shallow insertion.
Note: Adjusting the angle of the
needle up or down or changing the
distance between the needle and
probe will change the position of the
Intersection Window.
A steep angle is required
for deeper insertion.
